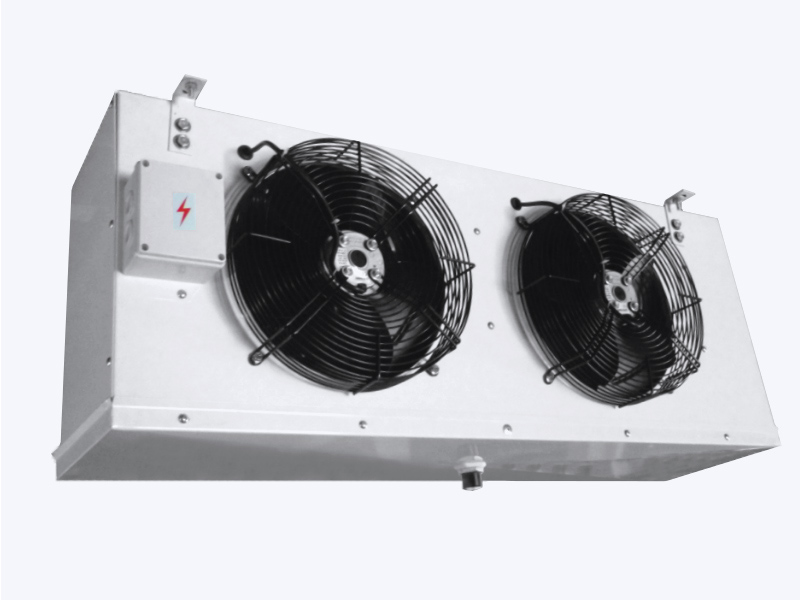

Summary
D serial Air cooler units can be applicable to all Ranges of Cold room, It includes DL, DD and DJ three styles, respectively apply to diferent temperature cold room. Its' advantage are: Compact, light, cold room area save. Compare to the normal flow unit cooler, It can rapidly pull down the cold room temperature, greatly in preserve the fresh product.
Application
D serial Air cooler can match with different capacity condensing units，It can apply to different temperature cold rooms.DL serial can apply to around OT) cold room, storage such as egg or vegetable. DD serial apply to -18℃ cold room, storage meat, fish etc. DJ serial apply to -25℃ cold room and lower for freezing or fast freezing the fresh meat and fish.
Products features
The casing adopted rolled aluminium plate and paint epoxy plastic anti-erode, nice shape.
Special disign coil position, efficiently heat exchange, the aluminium fins is fitted on the Copper tube by mechanical expansion.
All the cable have connected to a terminal box in factory, easy to maintenance.
Low niose fan-motor, Stably running.
There is a drain water connection on the centre of drain plate, easy to drain water.
Suspend bracket, easy to install.
U Stainless steel and aluminium-magnesinm filling heater, placed in centre of the coil, be good for defrost.
TECHNICAL DATA OF DD SERIAL AIR COOLER
|

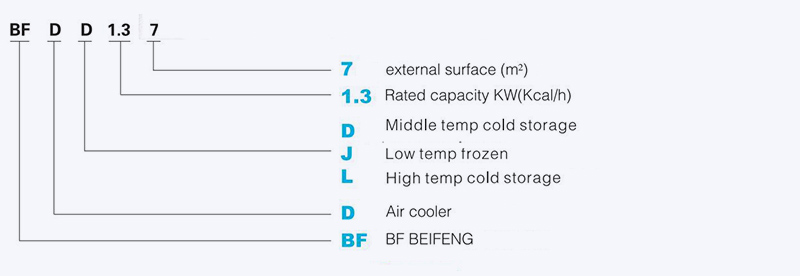

Model |
Rated capacity t =-18℃ △t =-to =7℃ w |
Cooling |
Fin space (mm) |
Fan motor |
Defrost heater |
||||||
|
Quantity (set) |
Diameter (Φ-mm) |
Air Volume (m³/h) |
Motor power (W) |
Volt (V) |
Coil (Kw) |
Water pond(Kw) |
Volt 3~380V Y mode connection(V) |
||||
|
BF-DD-1.3/7 |
1300 |
7 |
6 |
1 |
300 |
1650 |
75 |
380 |
0.96 |
0.52 |
220 |
|
BF-DD-2.2/12 |
2200 |
12 |
6 |
2 |
300 |
2×1650 |
2×75 |
380 |
1.5 |
0.82 |
220 |
|
BF-DD-2.8/15 |
2800 |
15 |
6 |
2 |
300 |
2×1650 |
2×75 |
380 |
1.8 |
0.94 |
220 |
|
BF-DD-3.7/22 |
3700 |
22 |
6 |
3 |
300 |
3×1650 |
3×75 |
380 |
2.46 |
1.27 |
220 |
|
BF-DD-5.6/30 |
5600 |
30 |
6 |
2 |
400 |
2×3400 |
2×180 |
380 |
2.1 |
1.11 |
220 |
|
BF-DD-7.5/40 |
7500 |
40 |
6 |
2 |
400 |
2×3400 |
2×180 |
380 |
2.58 |
1.35 |
220 |
|
BF-DD-11.2/60 |
11200 |
60 |
6 |
2 |
500 |
2×6300 |
2×414 |
380 |
6.2 |
1.72 |
220 |
|
BF-DD-14.9/80 |
14900 |
80 |
6 |
2 |
500 |
2×6300 |
2×414 |
380 |
6.2 |
1.72 |
220 |
|
BF-DD18.7/100 |
18700 |
100 |
6 |
3 |
500 |
3×6300 |
3×414 |
380 |
9.08 |
2.44 |
220 |
|
BF-DD22.4/120 |
22400 |
120 |
6 |
3 |
500 |
3×6300 |
3×414 |
380 |
9.08 |
2.44 |
220 |
|
BF-DD26.4/140 |
26400 |
140 |
6 |
4 |
500 |
4×6300 |
4×414 |
380 |
11.96 |
3.02 |
220 |
|
BF-DD-30/160 |
30000 |
160 |
6 |
4 |
500 |
4×6300 |
4×414 |
380 |
11.96 |
3.02 |
220 |
|
BF-DD33.4/180 |
33400 |
180 |
6 |
4 |
500 |
4×6300 |
4×414 |
380 |
11.96 |
3.02 |
220 |
|
BF-DD39.2/210 |
39200 |
210 |
6 |
4 |
500 |
4×6300 |
4×414 |
380 |
15.05 |
3.02 |
220 |
|
BF-DD48.5/255 |
48500 |
255 |
6 |
4 |
550 |
4×8720 |
4×600 |
380 |
15.05 |
3.02 |
220 |
|
BF-DD-57/300 |
57000 |
300 |
6 |
4 |
600 |
4×10820 |
4×780 |
380 |
16.1 |
3.38 |
220 |
TECHNICAL DATA OF DL SERIAL AIR COOLER
|
Model |
Rated capacity t =0℃ △t =-to =7℃ w |
Cooling (m²) |
Fin space (mm) |
Fan motor |
Defrost heater |
||||||
|
Quantity (set) |
Diameter (Φ-mm) |
Air Volume (m³/h) |
Motor power (W) |
Volt (V) |
Coil (Kw) |
Water pond(Kw) |
Volt 3~380V Y mode connection(V) |
||||
|
BF-DL-2.0/10 |
2000 |
10 |
4.5 |
1 |
300 |
1650 |
75 |
380 |
0.96 |
0.52 |
220 |
|
BF-DL-3.0/15 |
3000 |
15 |
4.5 |
2 |
300 |
2×1650 |
2×75 |
380 |
1.5 |
0.82 |
220 |
|
BF-DL4.1/20 |
4100 |
20 |
4.5 |
2 |
300 |
2×1650 |
2×75 |
380 |
1.8 |
0.94 |
220 |
|
BF-DL-5.0/25 |
5000 |
25 |
4.5 |
3 |
300 |
3×1650 |
3×75 |
380 |
2.46 |
1.27 |
220 |
|
BF-DL-8.0/40 |
8000 |
40 |
4.5 |
2 |
400 |
2×3400 |
2×180 |
380 |
2.1 |
1.11 |
220 |
|
BF-DL-11.2/55 |
11200 |
55 |
4.5 |
2 |
400 |
2×3400 |
2×180 |
380 |
2.58 |
1.35 |
220 |
|
BF-DL-16.2/80 |
16200 |
80 |
4.5 |
2 |
500 |
2×6300 |
2×550 |
380 |
4.65 |
1.72 |
220 |
|
BF-DL-21.3/105 |
21300 |
105 |
4.5 |
2 |
500 |
2×6300 |
2×550 |
380 |
4.65 |
1.72 |
220 |
|
BF-DL-25.0/125 |
25000 |
125 |
4.5 |
3 |
500 |
3×6300 |
3×550 |
380 |
6.81 |
2.44 |
220 |
|
BF-DL-32.6/160 |
32600 |
160 |
4.5 |
3 |
500 |
3×6300 |
3×550 |
380 |
6.81 |
2.44 |
220 |
|
BF-DL-37.6/185 |
37600 |
185 |
4.5 |
4 |
500 |
4×6300 |
4×550 |
380 |
8.97 |
3.02 |
220 |
|
BF-DL-42.7/210 |
42700 |
210 |
4.5 |
4 |
500 |
4×6300 |
4×550 |
380 |
8.97 |
3.02 |
220 |
|
BF-DL-57.4/280 |
57400 |
280 |
4.5 |
4 |
500 |
4×6300 |
4×550 |
380 |
12.04 |
3.02 |
220 |
|
BF-DL-69.7/340 |
69700 |
340 |
4.5 |
4 |
550 |
4×8720 |
4×600 |
380 |
12.04 |
3.02 |
220 |
|
BF-DL-82/400 |
82000 |
400 |
4.5 |
4 |
600 |
4×10820 |
4×780 |
380 |
12.88 |
3.38 |
220 |
TECHNICAL DATA OF DJ SERIAL AIR COOLER
|
Model |
Rated capacity t =-25℃ △t =-to =7℃ w |
Cooling (m²) |
Fin space (mm) |
Fan motor |
Defrost heater |
||||||
|
Quantity (set) |
Diameter (Φ-mm) |
Air Volume (m³/h) |
Motor power (W) |
Volt (V) |
Coil (Kw) |
Water pond(Kw) |
Volt 3~380V Y mode connection(V) |
||||
|
BF-DJ-1.2/8 |
1200 |
8 |
9 |
2 |
300 |
2×1650 |
2×75 |
380 |
1.5 |
0.82 |
220 |
|
BF-DJ-2.1/15 |
2100 |
15 |
9 |
3 |
300 |
3×1650 |
3×75 |
380 |
2.46 |
1.27 |
220 |
|
BF-DJ-3.6/20 |
3600 |
20 |
9 |
2 |
400 |
2×3400 |
2×180 |
380 |
2.1 |
1.11 |
220 |
|
BF-DJ-4.6/30 |
4600 |
30 |
9 |
2 |
400 |
2×3400 |
2×180 |
380 |
2.58 |
1.35 |
220 |
|
BF-DJ-7.1/40 |
7100 |
40 |
9 |
2 |
500 |
2×6300 |
2×550 |
380 |
6.2 |
1.72 |
220 |
|
BF-DJ-8.9/55 |
8900 |
55 |
9 |
2 |
500 |
2×6300 |
2×550 |
380 |
6.2 |
1.72 |
220 |
|
BF-DJ-11.6/70 |
11600 |
70 |
9 |
3 |
500 |
3×6300 |
3×550 |
380 |
9.08 |
2.44 |
220 |
|
BF-DJ-14.3/85 |
14300 |
85 |
9 |
3 |
500 |
3×6300 |
3×550 |
380 |
9.08 |
2.44 |
220 |
|
BF-DJ-17.1/100 |
17100 |
100 |
9 |
4 |
500 |
4×6300 |
4×550 |
380 |
11.96 |
3.02 |
220 |
|
BF-DJ-19.6/115 |
19600 |
115 |
9 |
4 |
500 |
4×6300 |
4×550 |
380 |
11.96 |
3.02 |
220 |
|
BF-DJ-23.9/140 |
23900 |
140 |
9 |
4 |
500 |
4×6300 |
4×550 |
380 |
15.05 |
3.02 |
220 |
|
BF-DJ-28.9/170 |
28900 |
170 |
9 |
4 |
550 |
4×8720 |
4×600 |
380 |
15.05 |
3.02 |
220 |
|
BF-DJ-34.2/200 |
34200 |
200 |
9 |
4 |
600 |
4×10820 |
4×780 |
380 |
16.1 |
3.38 |
220 |

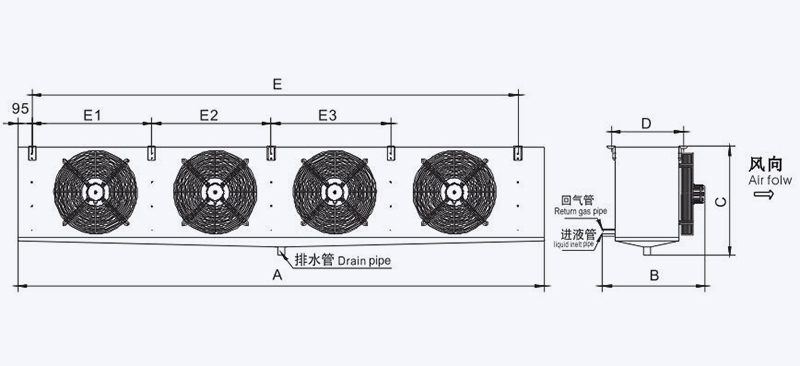

STANDARD AIR COOLER DIMENSION
Dimensioms
|
Model |
A |
B |
c |
D |
E |
E1 |
E2 |
E3 |
F1 |
liquid inelt pipe dia |
Return gas pipe dia |
Drain pipe dia |
|
BF-DL-2.0/10 BF-DD-1.3/7 |
670 |
440 |
490 |
325 |
450 |
80 |
Φ12 |
Φ22 |
3/4" |
|||
|
BF-DL-3.0/15 BF-DD-2.2/12 BF-DJ-1.2/8 |
1000 |
440 |
490 |
325 |
780 |
|||||||
|
BF-DL-4.1/20 BF-DD-2.8/15 |
1130 |
440 |
490 |
325 |
910 |
Φ22 |
||||||
|
BF-DL-5.0/25 BF-DD-3.7/22 BF-DJ-2.1/15 |
1500 |
440 |
490 |
325 |
1275 |
|||||||
|
BF-DL-8.0/40 BF-DD-5.6/30 BF-DJ-3.6/20 |
1330 |
470 |
630 |
365 |
1060 |
95 |
Φ16 |
Φ28 |
||||
|
BF-DL-11.2/55 BF-DD-7.5/40 BF-DJ-4.6/30 |
1600 |
470 |
630 |
365 |
1330 |
|||||||
|
BF-DL-16.2/80 BF-DD-11.2/60 BF-DJ-7.1/40 |
1920 |
635 |
730 |
435 |
1650 |
Φ32 |
1" |
|||||
|
BF-DL-21.3/105 BF-DD-14.9/80 BF-DJ-8.9/55 |
1920 |
635 |
730 |
435 |
1650 |
|||||||
|
BF-DL-25.0/125 BF-DD-18.7/100 BF-DJ-11.6/70 |
2720 |
635 |
730 |
435 |
2450 |
800 |
Φ19 |
Φ38 |
||||
|
BF-DL-32.6/160 BF-DD-22.4/120 BF-DJ-14.3/85 |
2720 |
635 |
730 |
435 |
2450 |
800 |
||||||
|
BF-DL-37.6/185 BF-DD-26.4/140 BF-DJ-17.1/100 |
3520 |
635 |
730 |
435 |
3250 |
800 |
800 |
Φ48 |
1.5" |
|||
|
BF-DL-42.7/210 BF-DD-30/160 BF-DJ-19.6/115 |
3520 |
635 |
730 |
435 |
3250 |
800 |
800 |
|||||
|
BF-DL-57.4/280 BF-DD-39/210 BF-DJ-23.9/140 |
3520 |
725 |
830 |
525 |
3250 |
800 |
800 |
Φ22 |
||||
|
BF-DL-69.7/340 BF-DD-48.5/255 BF-DJ-28.9/170 |
3520 |
725 |
985 |
525 |
3250 |
800 |
800 |
Φ25 |
Φ54 |
|||
|
BF-DL-82/400 BF-DD-57/300 BF- DJ-34.2/200 |
3920 |
725 |
1040 |
525 |
3650 |
900 |
900 |
