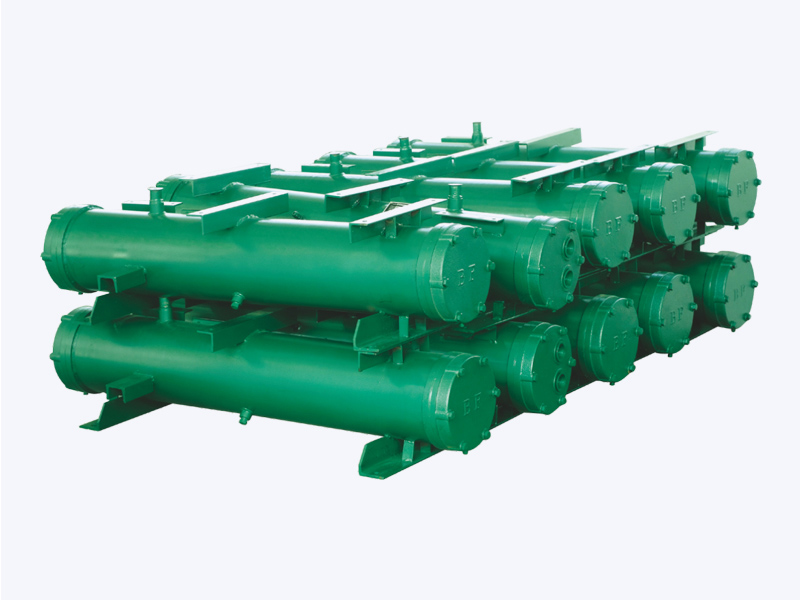

WATER COOLED CONDENSER

SHELL-AND-TUBE HEAT EXCHANGER

Condenser will be designed based on the operating conditions as belows:

Inlet water temp.: tW1=30℃

Outlet water temp.:tW2=35℃

Condensing temp.: 40℃

Cooling water flow rate:1.5〜2.5m/s

Evaporator will be designed based on the operating conditions as belows:

Inlet water temp.:tW1=12℃

Outlet water temp:tW2=7℃

Evaporating temp.:2℃

Water flow rate: 0.7~1.5m/s

Unit conversion: 1 RT=3.516KW=3024Kcal/h

MODEL INSTRUCTIOM

Note: 1. BeiFeng will be continued to improve its' products, so different technical specifications will be changed without other notice.

2.You may select our various products, or we design specially by your request.

3. The final confirmation of the product shall be subject to the contract technical documents determined by both parties.

HIGH PRESSURE (R410A) WATER-COOLED CONDE NSER

Model	Heat exchange Capacity		Overall Dimension (mm)						inlet/outlet diameter (mm)
Model	RT	Kcal/h	D	T1	T	A	C	E	S	P	L	W
BF-WN2G	2	6048	127	650	736	80	155	90	RC/1/4"	16	16	Rp1"
BF-WN3G	3	9072	127	650	736	80	155	90	RC/1/4"	16	16	Rp1"
BF-WN4G	4	12096	140	650	736	80	165	100	RC/1/4"	16	16	Rp 1-1/2"
BF-WN5G	5	15120	140	650	736	80	165	100	RC/1/4"	16	16	Rp 1-1/2"
BF-WN6G	6	18144	168	820	906	80	195	110	RC/1/4"	22	16	Rp1-1/2"
BF-WN8G	8	24192	168	820	906	80	195	110	RC/1/4"	22	16	Rp 1-1/2"
BF-WN10G	10	30240	168	990	1076	80	195	110	RC/1/4"	22	16	Rp1-1/2"
BF-WN12G	12	36288	203	838	944	100	232	120	RC/1/4"	28	22	Rp2"
BF-WN15G	15	45360	203	1018	1124	100	232	120	RC/1/4"	28	22	Rp2"
BF-WN20G	20	60480	219	1250	1356	100	238	120	RC/1/4"	28	22	Rp2"
BF-WN25G	25	75600	219	1250	1356	100	238	120	RC/1/4"	28	22	Rp2-1/2"
BF-WN30G	30	90720	219	1600	1706	100	238	120	RC/1/4"	35	28	Rp2-1/2"
BF-WN35G	35	105840	219	1600	1706	100	238	120	RC/1/4"	35	28	Rp2-1/2"
BF-WN40G	40	120960	273	1600	1706	100	300	120	RC/3/8"	35	28	Rp2-1/2"
BF-WN45G	45	136080	273	2030	2136	100	300	120	RC/3/8"	42	28	Rp2-1/2"
BF-WN50G	50	151200	273	2030	2136	100	300	120	RC/3/8"	42	28	Rp1-1/2"
BF-WN55G	55	166320	273	2030	2136	100	300	120	RC/3/8"	42	28	Rp 1-1/2"
BF-WN60G	60	181440	273	2030	2136	100	300	130	RC/3/8"	42	28	Rp3"
BF-WN65G	65	196660	273	2030	2136	100	300	130	RC/3/8"	48	35	Rp3"
BF-WN70G	70	211680	273	2030	2136	100	300	130	RC/3/8"	54	35	Rp3"
BF-WN75G	75	226800	273	2030	2136	100	300	130	RC/3/8"	54	35	Rp3"
BF-WN80G	80	241920	325	2030	2176	110	375	160	RC/3/8"	54	35	Rp4"
BF-WN85G	85	257040	325	2030	2176	110	375	160	RC/3/8"	67	35	Rp4"
BF-WN90G	90	272160	325	2030	2176	110	375	160	RC/3/8"	67	35	Rp4"
BF-WN95G	95	287280	325	2030	2176	110	375	160	RC/3/8"	67	35	Rp4"
BF-WN100G	100	302400	325	2030	2176	110	375	160	RC/3/8"	80	48	Rp4"
BF-WN120G	120	362880	325	2230	2376	110	375	160	RC/3/8"	80	48	Rp4"
BF-WN150G	150	453600	426	2465	2880	150	500	325	RC/3/8"	80	Φ54 阀	DN 150
BF-WN180G	180	544320	426	2465	2880	150	500	325	RC/3/8"	80	Φ54阀	DN 150
BF-WN200G	200	604800	426	2685	3190	150	500	325	RC/3/8"	80	Φ54阀	DN 150
BF-WN250G	250	756000	530	2685	3190	150	610	380	RC/3/8"	80	Φ54阀	DN200
BF-WN300G	300	907200	530	2685	3190	150	610	380	RC/3/8"	80	Φ54 阀	DN200

Product features and selection instructions;
1. The design and manufacture of the products shall follow TSG《 Safety Technical Supervision
Tutorial for Fixed Pressure Vessels》and NB/T47012《Pressure Vessels for Refrigeration
Devices》.
2. Design conditions TW1 =30C, TW2 =35 C, condensation temperature 40C, oling water flow
rate 1-2.5 m/s. The performance of the product is modified according to the《UNIL AB》software
calculation and actual test, giving full play to the heat exchange capacity of the product.
3. The inner wall of the product is treated with shot peening and passivation to ensure the
cleanliness of the refrigeration equipment.

HIGH EFFICIENCY WATER-COOLED CONDENSER

Model	Heat exchange Capacity		Overall Dimension (mm)						inlet/outlet diameter (mm)
Model	RT	Kcal/h	D	T1	T	A	C	E	S	P	L	W
BF-WN2	2	6048	127	650	736	80	155	90	RC/1/4"	16	16	Rp1"
BF-WN3	3	9072	127	650	736	80	155	90	RC/1/4"	16	16	Rp1"
BF-WN4	4	12096	140	650	736	80	165	100	RC/1/4"	16	16	Rp 1-1/2"
BF-WN5	5	15120	140	650	736	80	165	100	RC/1/4"	16	16	Rp 1-1/2"
BF-WN6	6	18144	168	820	906	80	195	110	RC/1/4"	22	16	Rp1-1/2"
BF-WN8	8	24192	168	820	906	80	195	110	RC/1/4"	22	16	Rp 1-1/2"
BF-WN10	10	30240	168	990	1076	80	195	110	RC/1/4"	22	16	Rp1-1/2"
BF-WN12	12	36288	203	838	944	100	232	120	RC/1/4"	28	22	Rp2"
BF-WN15	15	45360	203	1018	1124	100	232	120	RC/1/4"	28	22	Rp2"
BF-WN20	20	60480	219	1250	1356	100	238	120	RC/1/4"	28	22	Rp2"
BF-WN25	25	75600	219	1250	1356	100	238	120	RC/1/4"	28	22	Rp2-1/2"
BF-WN30	30	90720	219	1600	1706	100	238	120	RC/1/4"	35	28	Rp2-1/2"
BF-WN35	35	105840	219	1600	1706	100	238	120	RC/1/4"	35	28	Rp2-1/2"
BF-WN40	40	120960	273	1600	1706	100	300	120	RC/3/8"	35	28	Rp2-1/2"
BF-WN45	45	136080	273	2030	2136	100	300	120	RC/3/8"	42	28	Rp2-1/2"
BF-WN50	50	151200	273	2030	2136	100	300	120	RC/3/8"	42	28	Rp1-1/2"
BF-WN55	55	166320	273	2030	2136	100	300	120	RC/3/8"	42	28	Rp 1-1/2"
BF-WN60	60	181440	273	2030	2136	100	300	130	RC/3/8"	42	28	Rp3"
BF-WN65	65	196660	273	2030	2136	100	300	130	RC/3/8"	48	35	Rp3"
BF-WN70	70	211680	273	2030	2136	100	300	130	RC/3/8"	54	35	Rp3"
BF-WN75	75	226800	273	2030	2136	100	300	130	RC/3/8"	54	35	Rp3"
BF-WN80	80	241920	325	2030	2176	110	375	160	RC/3/8"	54	35	Rp4"
BF-WN85	85	257040	325	2030	2176	110	375	160	RC/3/8"	67	35	Rp4"
BF-WN90	90	272160	325	2030	2176	110	375	160	RC/3/8"	67	35	Rp4"
BF-WN95	95	287280	325	2030	2176	110	375	160	RC/3/8"	67	35	Rp4"
BF-WN100	100	302400	325	2030	2176	110	375	160	RC/3/8"	80	48	Rp4"
BF-WN120	120	362880	325	2230	2376	110	375	160	RC/3/8"	80	48	Rp4"
BF-WN150	150	453600	426	2465	2880	150	500	325	RC/3/8"	80	Φ54 阀	DN 150
BF-WN180	180	544320	426	2465	2880	150	500	325	RC/3/8"	80	Φ54阀	DN 150
BF-WN200	200	604800	426	2685	3190	150	500	325	RC/3/8"	80	Φ54阀	DN 150
BF-WN250	250	756000	530	2685	3190	150	610	380	RC/3/8"	80	Φ54阀	DN200
BF-WN300	300	907200	530	2685	3190	150	610	380	RC/3/8"	80	Φ54 阀	DN200

HIGH TEMPERATURE, LOW TEMPERATURE WATER COOLED CONDENSER

Model	Heat exchange Capacity		Overall Dimension (mm)								inlet/outlet diameter (mm)
Model	High Temperature	Low Temperature	D	T1	T	A	B	C	E	F	S	P	L	W
BF-WN4HP	12096	9072	219	950	1056	270	210	238	80	40	Rc3/8"	19	Φ12 阀	Rp1-1/2"
BF-WN5HP	15120	12096	219	950	1056	270	210	238	80	40	Rc3/8"	19	Φ12 阀	Rp1-1/2"
BF-WN8HP	21168	18144	219	1100	1206	340	230	238	80	40	Rc3/8"	25	Φ16 阀	Rp1-1/2"
BF-WN10HP	30240	21168	219	1100	1206	340	230	238	80	40	Rc3/8"	25	Φ16 阀	Rp1-1/2"
BF-WN15HP	36288	30240	219	1140	1246	260	230	238	80	40	Rc3/8"	28	Φ16 阀	Rp1-1/2"
BF-WN20HP 小	39312	36288	273	1250	1356	100	100	300	120	0	Rc3/8"	32	Φ22阀	Rp2-1/2"
BF-WN20HP 大	42336	39312	273	1250	1356	100	100	300	120	0	Rc3/8"	32	Φ22阀	Rp2-1/2"
BF-WN25HP	54432	42312	273	1600	1706	100	100	300	120	0	Rc3/8"	35	Φ22阀	Rp2-1/2"
BF-WN30HP	60480	45360	273	1600	1706	100	100	300	120	0	Rc3/8"	35	Φ22阀	Rp2-1/2"
BF-WN35HP	66528	54432	273	1600	1706	100	100	300	120	0	Rc3/8"	42	Φ28阀	Rp2-1/2"
BF-WN40HP	75600	60480	273	1600	1706	100	100	300	120	0	Rc3/8"	42	Φ28阀	Rp2-1/2"
BF-WN50HP	81648	75600	325	1600	1706	100	100	375	160	0	Rc3/8"	54	Φ28阀	Rp4"
BF-WN60HP	120960	105840	325	1600	1706	100	100	375	160	0	Rc3/8"	54	Φ28阀	Rp4"
BF-WN70HP	136080	120960	325	1600	1706	100	100	375	160	0	Rc3/8"	54	Φ35阀	Rp4"
BF-WN80HP	151200	136080	325	2030	2176	150	150	375	160	0	Rc3/8"	54	Φ35阀	Rp4"
BF-WN90HP	166320	151200	325	2030	2176	150	150	375	160	0	Rc3/8"	67	Φ35阀	Rp4"
BF-WN100HP	181440	166320	325	2030	2176	150	150	375	160	0	Rc3/8"	67	Φ35阀	Rp4"
BF-WN120HP	217728	199584	325	2030	2176	150	150	375	180	0	Rc3/8"	67	Φ42阀	Rp4"
BF-WN150HP	244944	226800	325	2030	2176	150	150	375	180	0	Rc3/8"	67	Φ42阀	Rp4"
BF-WN200HP	326592	2302400	426	2030	2030	150	150	500	325	0	Rc3/8"	76	Φ42阀	DN100
BF-WN250HP	408240	378000	426	2030	2465	150	150	500	325	0	Rc3/8"	76	Φ54阀	DN100
BF-WN300HP	489888	453600	426	2030	2465	150	150	500	325	0	Rc3/8"	76	Φ54阀	DN150

HIGH EFFICIENCY DOUBLE-SYSTEM WATER-COOLED CONDENSER

Model	Heat exchange Capacity		Overall Dimension (mm)							inlet/outlet diameter (mm)
Model	RT	Kcal/h	D	T1	T2	T	A	c	E	S	P	L	W
BF-2WN10	10	30240	168	450	450	990	80	195	110	Rc1/4"	16	16	Rp1-1/2"
BF-2WN15	15	45360	203	550	550	1210	100	232	120	Rc1/4"	22	16	Rp2"
BF-2WN20	20	60480	219	650	650	1410	100	238	120	Rc1/4"	22	16	Rp2"
BF-2WN30	30	90720	219	820	820	1750	100	238	120	Rc1/4"	28	16	Rp2-1/2"
BF-2WN40	40	120960	273	820	820	1750	100	300	120	Rc3/8"	28	22	Rp2-1/2"
BF-2WN50	50	151200	273	1018	1018	2345	100	300	120	Rc3/8"	35	22	Rp3"
BF-2WN60	60	181440	273	1018	1018	2345	100	300	120	Rc3/8"	42	28	Rp3"
BF-2WN70	70	196560	273	1018	1018	2345	100	300	120	Rc3/8"	42	28	Rp3"
BF-2WN80	80	241920	325	1018	1018	2185	100	375	160	Rc3/8"	42	28	Rp4"
BF-2WN90	90	272160	325	1018	1018	2185	100	375	160	Rc3/8"	42	28	Rp4"
BF-2WN100	100	302400	325	1018	1018	2185	100	375	160	Rc3/8"	48	28	Rp4"
BF-2WN120	120	362880	325	1250	1250	2650	100	375	160	Rc3/8"	48	28	Rp4"

Triple condenser may be designed based on request, yet not be separately tabulated.

HIGH EFFICIENCY CONDENSER FOR SEA WATER

Model	Heat exchange Capacity		Overall Dimension (mm)						inlet/outlet diameter (mm)
Model	RT	Kcal/h	D	T1	T	A	c	E	S	P	L	W
BF-WN3H	3	9072	127	650	736	80	155	90	RC 1/4"	16	16	Rp1 "
BF-WN5H	5	15120	140	650	736	80	165	100	RC 1/4"	16	16	Rp1-1/2 "
BF-WN8H	8	24192	168	820	906	80	195	110	RC 1/4"	22	16	Rp1-1/2 "
BF-WN10H	10	30240	168	990	1076	80	195	110	RC 1/4"	22	16	Rp1-1/2 "
BF-WN12H	12	36288	203	838	944	100	232	120	RC 1/4"	28	22	Rp2 "
BF-WN15H	15	45360	203	1018	1124	100	232	120	RC 1/4"	28	22	Rp2 "
BF-WN20H	20	60480	219	1250	1356	100	238	120	RC 1/4"	28	22	Rp2 "
BF-WN25H	25	75600	219	1250	1356	100	238	120	RC 1/4"	28	22	Rp2-1/2"
BF-WN30H	30	90720	219	1600	1706	100	238	120	RC 1/4"	35	28	Rp2-1/2"
BF-WN35H	35	105840	219	1600	1706	100	238	120	RC 1/4"	35	28	Rp2-1/2"
BF-WN40H	40	120960	273	1600	1706	100	300	120	RC 3/8"	35	28	Rp2-1/2"
BF-WN45H	45	136080	273	2030	2136	100	300	120	RC 3/8"	42	28	Rp2-1/2"
BF-WN50H	50	151200	273	2030	2136	100	300	120	RC 3/8"	42	28	Rp2-1/2"
BF-WN55H	55	166320	273	2030	2136	100	300	120	RC 3/8"	42	28	Rp2-1/2"
BF-WN60H	60	181440	273	2030	2136	100	300	130	RC 3/8"	42	28	Rp3"
BF-WN65H	65	196660	273	2030	2136	100	300	130	RC 3/8"	48	35	Rp3"
BF-WN70H	70	211680	273	2030	2136	100	300	130	RC 3/8"	54	35	Rp3"
BF-WN75H	75	226800	273	2030	2136	100	300	130	RC 3/8"	54	35	Rp3"
BF-WN80H	80	241920	325	2030	2176	100	375	160	RC 3/8"	54	35	Rp4 "
BF-WN85H	85	257040	325	2030	2176	110	375	160	RC 3/8"	67	35	Rp4 "
BF-WN90H	90	272160	325	2030	2176	110	375	160	RC 3/8"	67	35	Rp4 "
BF-WN95H	95	287280	325	2030	2176	110	375	160	RC 3/8"	67	35	Rp4 "
BF-WN100H	100	302400	325	2030	2176	110	375	160	RC 3/8"	80	48	Rp4 "
BF-WN120H	120	362880	325	2230	2376	110	375	160	RC 3/8"	80	48	Rp4 "
BF-WN150H	150	453600	426	2465	2880	150	500	325	RC 3/8"	80	Φ54 阀	DN 150
BF-WN180H	180	544320	426	2465	2880	150	500	325	RC 3/8"	80	Φ54 阀	DN 150
BF-WN200H	200	604800	426	2685	3190	150	500	325	RC 3/8"	80	Φ54 阀	DN 150
BF-WN250H	250	756000	530	2685	3190	150	610	380	RC 3/8"	80	Φ54 阀	DN 200
BF-WN300H	300	907200	530	2685	3190	150	610	380	RC 3/8"	80	Φ54阀	DN 200

Note:1.Both double and triple condensers may be designed based on request and yet not be Separately tabulated.

2.Anti-corrosive & anti-acid treatments are carried out for both shell and tube sheet. Copper-nickel alloy tube is adopted for sea water.

HIGH EFFICIENCY LIQUID STORAGE TYPE CONDENSER

Model	Heat exchange Capacity		Overall Dimension (mm)						inlet/outlet diameter (mm)				net storage capacity(L)
Model	RT	Kcal/h	D	T1	T	A	c	E	S	P	L	W	net storage capacity(L)
BF-WN15V	15	45360	219	1018	1124	100	238	120	RC/1/4"	28	Φ22 阀	Rp2 "	5
BF-WN20V	20	60480	219	1250	1356	100	238	120	RC/1/4"	28	Φ22 阀	Rp2-1/2"	7
BF-WN25V	25	75600	273	1250	1356	100	300	120	RC/1/4"	35	Φ28 阀	Rp2-1/2"	19
BF-WN30V	30	90720	273	1600	1706	100	300	120	RC/1/4"	35	Φ28 阀	Rp2-1/2"	26
BF-WN35V	35	105840	273	1600	1706	100	300	120	RC/1/4"	35	Φ28 阀	Rp2-1/2"	26
BF-WN40V	40	120960	273	1600	1706	100	300	120	RC/3/8"	42	Φ28 阀	Rp2-1/2"	22
BF-WN45V	45	136080	273	2030	2136	100	300	120	RC/3/8"	42	Φ28 阀	Rp2-1/2"	36
BF-WN50V	50	151200	325	2030	2136	100	300	120	RC/3/8"	42	Φ28 阀	Rp2-1/2"	28
BF-WN55V	55	166320	325	2030	2136	100	300	130	RC/3/8"	42	Φ28 阀	Rp3"	28
BF-WN60V	60	181440	325	2030	2136	100	300	130	RC/3/8"	48	Φ35阀	Rp3"	28
BF-WN65V	65	196660	325	2030	2176	100	300	130	RC/3/8"	54	Φ35阀	Rp3"	54
BF-WN70V	70	211680	325	2030	2176	100	300	130	RC/3/8"	54	Φ35阀	Rp3"	54
BF-WN80V	80	241920	325	2030	2176	100	375	160	RC/3/8"	54	Φ35阀	Rp4 "	44
BF-WN85V	85	257040	325	2030	2176	110	375	160	RC/3/8"	67	Φ35阀	Rp4 "	40
BF-WN90V	90	272160	325	2030	2176	110	375	160	RC/3/8"	67	Φ35阀	Rp4 "	40
BF-WN95V	95	287280	325	2030	2176	110	375	160	RC/3/8"	67	Φ35阀	Rp4 "	40
BF-WN100V	100	302400	351	2220	2370	110	440	250	RC/3/8"	80	Φ48阀	DN 80	50
BF-WN120V	120	362880	351	2220	2370	110	440	250	RC/3/8"	80	Φ48阀	DN 80	60
BF-WN150V	150	453600	426	2465	2880	150	500	325	RC/3/8"	80	Φ54阀	DN 150	105
BF-WN180V	180	544320	426	1465	2880	150	500	325	RC/3/8"	80	Φ54阀	DN 150	80
BF-WN200V	200	604800	426	2685	3190	150	500	325	RC/3/8"	80	Φ54阀	DN 150	80
BF-WN250V	250	756000	530	2685	3190	150	610	380	RC/3/8"	80	Φ54阀	DN 200	120
BF-WN300V	300	907200	530	2685	3190	150	610	380	RC/3/8"	80	Φ54阀	DN 200	90

DRY TYPE EVAPORATOR

HIGH EFFICIENCY U SERIAL DRYTYPE EVAPORATOR SERIES

Model	Heat exchange Capacity		Overall Dimension (mm)											lnterface Specification(mm)
Model	RT	KW	A	B	C	D	E	F	G	H	R	S	T	a(b)	C	d
BF-EU5	5	18	932	140	129	730	130	195	45	30	550	60	160	1½"	22	35
BF-EU6	6	21	932	140	129	730	130	195	45	30	550	60	160	1½"	22	35
BF-EU8	8	28	1082	140	129	880	130	195	45	30	650	60	160	1½"	22	35
BF-EU10	10	35	1282	140	129	1080	130	195	45	30	800	60	160	2"	22	35
BF-EU12	12	42	1432	140	129	1230	130	195	45	30	800	60	160	2"	22	35
BF-EU15	15	53	1318	168	168	1050	130	235	55	35	800	60	160	2½"	28	42
BF-EU20	20	70	1468	168	168	1200	130	235	55	35	800	60	160	2½"	28	42
BF-EU25	25	88	1668	168	168	1400	130	235	55	35	1000	60	160	2½"	28	42
BF-EU30	30	106	1818	168	168	1550	130	235	55	35	1000	60	160	2½"	28	42
BF-EU35	35	124	2261	219	192	1950	130	300	70	45	1400	80	200	3"	35	54
BF-EU40	40	140	2261	219	192	1950	130	300	70	45	1400	80	200	3"	35	54
BF-EU50	50	176	2261	219	192	1950	130	300	70	45	1400	80	200	3"	35	54
BF-EU60	60	212	2511	219	192	2200	130	300	70	45	1400	80	200	3"	35	54
BF-EU80	80	280	2546	245	212	2200	150	325	75	60	1400	80	200	4"	42	67
BF-EU100	100	352	2500	273	241	2100	150	350	80	65	1400	80	240	4"	42	80

HIGH EFFICIENCY EVAPORATOR SERIES

Model	Heat exchange Capacity		Overall Dimension (mm)								inlet/outlet diameter (mm)
Model	RT	Kcal/h	A	B	c	D	E	F	H	W	O	P	Q	I	R	S
BF-E5	5	15120	885	800	500	168	660	245	70	150	22	16	R1-1/4"	Rc1/2"	Rc1/2 "	13
BF-E6	6	18144	1085	1000	700	168	860	245	70	150	22	16	R1-1/2"	Rc1/2"	Rc1/2"	13
BF-E8	8	24192	1085	1000	700	203	860	285	80	200	35	16	R1-1/2"	Rc1/2 "	Rc1/2"	13
BF-E10	10	30240	1085	1000	700	203	860	285	80	200	35	16	R1-1/2"	Rc1/2 H	Rc1/2"	13
BF-E12	12	36288	1290	1200	850	203	1030	285	80	200	35	22	R2"	Rc1/2 "	Rc1/2"	13
BF-E15	15	45360	1290	1200	850	219	1030	300	80	200	42	22	R2"	Rc1/2"	Rc1/2"	13
BF-E20	20	60480	1590	1500	1100	219	1330	300	80	200	42	22	R2M	Rc3/4"	Rc1/2"	13
BF-E25	25	75600	1690	1600	1200	245	1420	330	80	250	42	22	R2-1/2"	Rc3/4 "	Rc3/4"	13
BF-E30	30	90720	1690	1600	1200	245	1420	330	80	250	54	28	R2-1/2"	Rc3/4"	Rc3/4"	13
BF-E35	35	105840	1910	1800	1200	273	1590	355	90	250	54	28	R3"	Rc3/4 "	Rc3/4 "	18
BF-E40	40	120960	1910	1800	1200	273	1590	355	90	250	54	35	R3"	Rc3/4"	Rc3/4"	18
BF-E50	50	151200	1910	1800	1200	325	1590	416	90	300	67	35	R3M	Rc3/4 "	Rc3/4"	18
BF-E60	60	181440	2120	2000	1400	325	1790	416	90	300	67	35	R3"	Rc3/4 "	Rc3/4"	18
BF-E80	80	241920	2430	2300	1700	325	2060	416	90	300	67	35	R3"	Rc3/4"	Rc3/4"	18
BF-E100	100	302400	2430	2300	1700	377	2060	470	90	350	80	42	DN 100	Rc3/4"	Rc3/4"	18
BF-E120	120	362880	2430	2300	1700	377	2060	470	90	350	80	42	DN 100	Rc3/4"	Rc3/4"	18
BF-E150	150	453600	2430	2300	1700	426	2060	510	100	400	108	54	DN 150	Rc3/4 "	Rc3/4"	18
BF-E180	180	544320	2430	2300	1700	450	2060	540	100	400	108	54	DN 150	Rc3/4 "	Rc3/4"	18
BF-E200	200	604800	3130	3000	2500	450	2700	540	100	400	108	54	DN 150	Rc3/4"	Rc3/4"	18
BF-E250	250	756000	3130	3000	2500	530	2700	620	110	500	133	54	DN200	Rc3/4"	Rc3/4 "	18
BF-E300	300	907200	3130	3000	2500	530	2700	620	110	500	133	54	DN200	Rc3/4"	Rc3/4"	18

HIGH EFFICIENCY DOUBLE-SYSTEM EVAPORATOR SERIES

Model	Heat exchange Capacity		Overall Dimension (mm)								inlet/outlet diameter (mm)
Model	RT	Kcal/h	A	B	C	D	E	F	H	W	0	P	Q	I	R	S
BF-2E10	10	30240	1085	1000	700	203	704	285	80	200	22	16	DN 50	12	Rc1/2 "	13
BF-2E16	16	48384	1290	1200	850	219	904	300	80	200	35	16	DN 50	12	Rc1/2"	13
BF-2E20	20	60480	1590	1500	1100	219	1204	300	80	200	35	16	DN 65	12	Rc1/2 "	13
BF-2E30	30	90720	1590	1500	1100	273	1204	355	80	250	42	22	DN 80	12	Rc3/4"	18
BF-2E40	40	120960	1910	1800	120	273	1504	355	80	300	42	22	DN 80	12	Rc3/4"	18
BF-2E50	50	151200	1910	1800	1200	325	1504	416	80	300	42	22	DN 80	12	Rc3/4"	18
BF-2E60	60	181440	2120	2000	1400	325	1504	416	90	300	54	28	DN 100	12	Rc3/4"	18
BF-2E70	70	211680	2430	2300	1700	325	1704	416	90	300	54	28	DN 100	12	Rc3/4"	18
BF-2E80	80	241920	2430	2300	1700	325	1704	416	90	300	54	35	DN 100	12	Rc3/4"	18
BF-2E90	90	272160	2430	2300	1700	377	1904	470	90	350	54	35	DN 150	12	Rc3/4"	18
BF-2E100	100	302400	2430	2300	1700	377	1904	470	100	350	67	35	DN 150	12	Rc3/4"	18
BF-2E110	110	332640	2430	2300	1700	377	1904	470	100	350	67	35	DN 150	12	Rc3/4"	18
BF-2E120	120	362880	2430	2300	1700	377	2154	470	100	350	67	35	DN 150	12	Rc3/4"	18
BF-2E130	130	393120	2430	2300	1700	377	2154	470	100	350	67	35	DN 150	12	Rc3/4"	18
BF-2E140	140	423360	2430	2300	1700	450	2154	540	100	400	67	35	DN 200	12	Rc3/4"	18
BF-2E150	150	453600	2430	2300	1700	450	2154	540	100	400	67	35	DN 200	12	Rc3/4"	18
BF-2E160	160	483840	2430	2300	1700	450	2254	540	100	400	67	35	DN 200	12	Rc3/4"	18

HIGH EFFICIENCY TRIPLE-SYSTEM EVAPORATOR SERIES

Model	Heat exchange Capacity		Overall Dimension (mm)								inlet/outlet diameter (mm)
Model	RT	Kcal/h	A	B	C	D	E	F	H	W	O	P	Q	I	R	S
BF-3E15	15	45360	1290	1200	850	219	900	300	80	200	22	16	DN50	12	Rc1/2"	13
BF-3E30	30	90720	1590	1500	1100	273	1100	355	80	250	35	16	DN80	12	Rc3/4"	18
BF-3E45	45	136080	1910	1800	1200	273	1500	355	80	250	42	22	DN80	12	Rc3/4 "	18
BF-3E60	60	181440	2120	2000	1400	325	1500	416	90	300	42	22	DN 100	12	Rc3/4"	18
BF-3E75	75	226800	2430	2300	1700	377	1700	470	90	350	42	22	DN 100	12	Rc3/4"	18
BF-3E90	90	272160	2430	2300	1700	377	1700	470	90	350	54	28	DN 150	12	Rc3/4 "	18
BF-3E120	120	362880	2430	2300	1700	377	1700	470	90	350	54	35	DN 150	12	Rc3/4"	18

Zhejiang Beifeng Refrigeration Equipment Co., Ltd is a famous China BF High/Low temperature Double-system Water Cooled Evaporators Factory and BF High/Low temperature Double-system Water Cooled Evaporators Company,and the products are exported to the Europe，South East Asia，Middle East，North America，Africa etc.

Get In Touch

If you have any questions or need help, please contact us directly, we will provide you with online help and services in time.

Since 1986

Professional refrigeration equipment manufacturer

Zhejiang Beifeng Refrigeration Equipment Co., Ltd. has 35 years history of manufacturing refrigeration equipment. Currently, it has two processing bases located in Shengzhou, Zhejiang, with a production building of 60,000 square meters. It has set up three sales companies in Shanghai, Beijing, and Guangzhou, with strong technical force, advanced equipment, complete varieties and stable quality. The company has a high-quality inspection center to detect the performance index of refrigeration products and imported vacuum-type helium leak detectors for condensers and evaporators. It has a great influence in the national refrigeration industry and occupies a large market, with distributors in all major cities; It enjoys a high reputation not only in the domestic market, but also in the overseas market, and the products are exported to Europe, Southeast Asia, the Middle East, North America, Africa, etc.

Follow Beifeng to get the latest enterprise and refrigeration equipment products news

What’s New

07 Dec

In the refrigeration process, the fair design of the condenser

In the refrigeration process, the fair design of the condenser is an important part of improving the energy efficiency r...
29 Nov

In industrial air conditioning refrigeration systems

In industrial air conditioning refrigeration systems, evaporators, condensers, compressors and throttle valves are four ...
23 Nov

Different condensers according to steam condensation

Different condensers according to steam condensation can be divided into surface type (also called partition type) and m...
26 Oct

Air coolers can be used for cooling or condensation

Air coolers can be used for cooling or condensation, and are widely used in: refining, condensation of petrochemical ove...
12 Oct

In summer, the compressor's exhaust temperature is relatively high

In summer, the compressor's exhaust temperature is relatively high and the hand cannot touch it. According to national s...
06 Sep

An air cooler is a heat exchanger that uses air as a cooling medium

An air cooler is a heat exchanger that uses air as a cooling medium to cool a warm stream to a desired temperature. Refe...

menu

search

language

Categories

Shell and Tube water-cooled Evaporator

Products Description

Message

Get In Touch

Related Products

Since 1986

Follow Beifeng to get the latest enterprise and refrigeration equipment products news

What’s New

In the refrigeration process, the fair design of the condenser

In industrial air conditioning refrigeration systems

Different condensers according to steam condensation

Air coolers can be used for cooling or condensation

In summer, the compressor's exhaust temperature is relatively high

An air cooler is a heat exchanger that uses air as a cooling medium
