Details

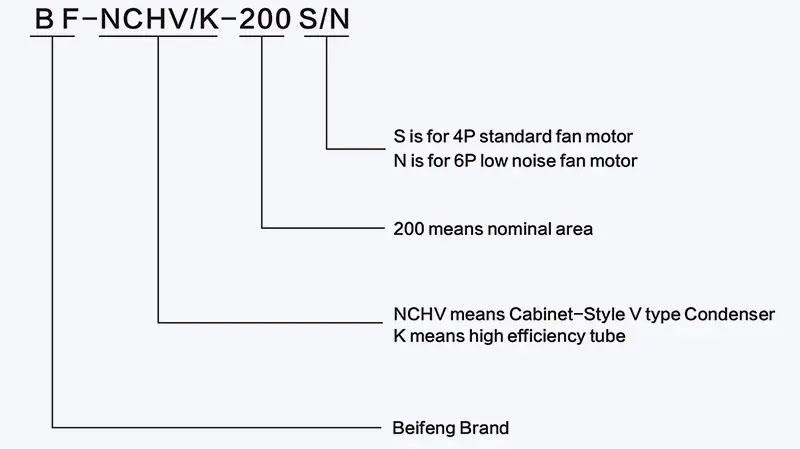

Condenser Model Instruction

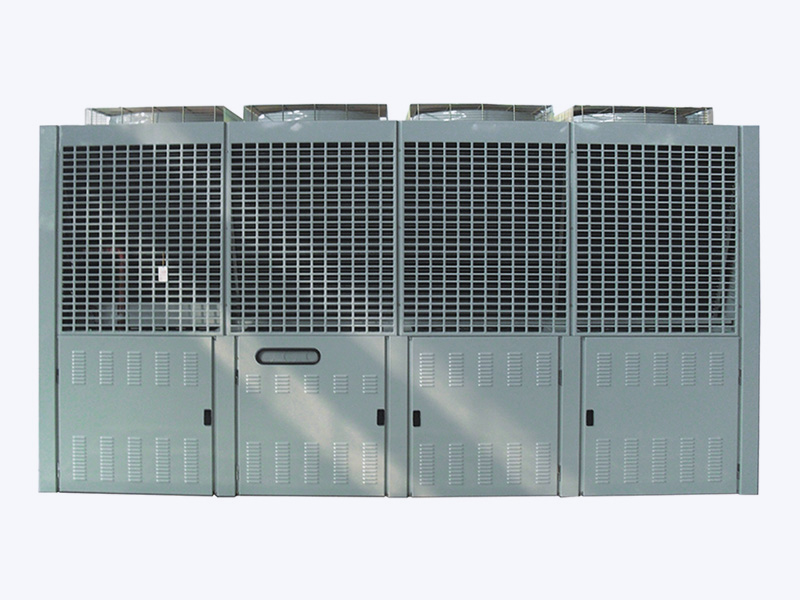

Cabinet-Style V type Condenser technical parameters
|
Model |
Nominal Capacity W |
Fan motor～V/50HZ/P |
Inlet diameter Φ-mm |
Outlet diameter Φ-mm |

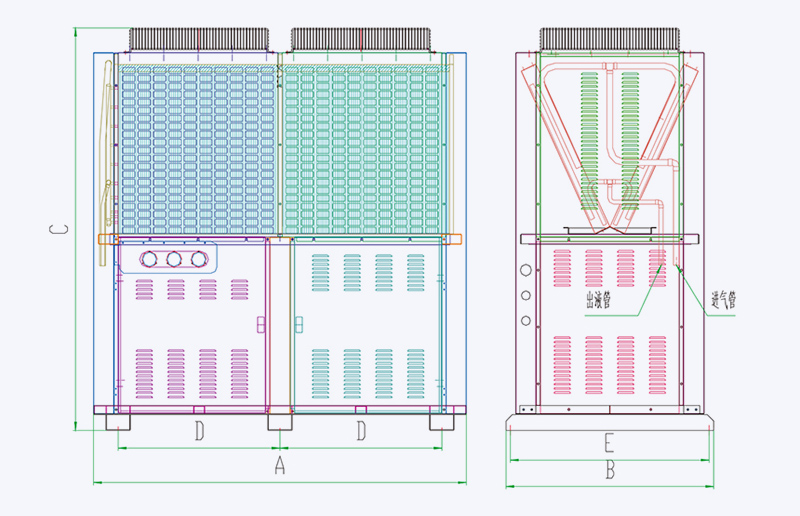

Dimensions |
Mounting Dimensions |
||||||||
|
v/min Air Volume m³/h/set |
Dir of Air flow Φmm |
quantity |
power W |
PowerSource V/P/A |
Noise dBA |
A mm Length |
B mm Width |
C mm heigth |
D mm Length |
E mm Width |
||||
|
BF-NCHV-K-42S |
12800 |
2290 |
350 |
2 |
140 |
380/4/0.38 |
62 |
19 |
12 |
1120 |
750 |
1485 |
880 |
710 |
|
BF-NCHV-K-63S |
19200 |
3400 |
400 |
2 |
180 |
380/4/0.47 |
68 |
22 |
12 |
1120 |
750 |
1485 |
880 |
710 |
|
BF-NCHV-K-75S |
22900 |
4800 |
450 |
2 |
250 |
380/4/0.6 |
68 |
22 |
12 |
1340 |
927 |
1750 |
1100 |
887 |
|
BF-NCHV-K-117S |
35700 |
6570 |
500 |
2 |
450 |
380/4/0.9 |
72 |
22 |
16 |
1340 |
927 |
1750 |
1100 |
887 |
|
BF-NCHV-K-127S |
38500 |
6570 |
500 |
2 |
450 |
380/4/0.9 |
72 |
22 |
16 |
1440 |
927 |
1750 |
1200 |
887 |
|
BF-NCHV-K-135S |
40800 |
6570 |
500 |
2 |
450 |
380/4/1.2 |
75 |
28 |
19 |
1510 |
927 |
1750 |
2×635 |
887 |
|
BF-NCHV-K-157S |
48300 |
8720 |
550 |
2 |
600 |
380/4/1.2 |
75 |
28 |
19 |
1720 |
927 |
1750 |
2×740 |
887 |
|
BF-NCHV-K-190S |
58200 |
8720 |
550 |
2 |
600 |
380/4/1.6 |
78 |
28 |
22 |
1820 |
1014 |
1915 |
2×790 |
974 |
|
BF-NCHV-K-200S |
61000 |
8720 |
550 |
2 |
600 |
380/4/1.6 |
78 |
28 |
22 |
1900 |
1014 |
1915 |
2×830 |
974 |
|
BF-NCHV-K-220S |
67800 |
10820 |
600 |
2 |
780 |
380/4/1.6 |
78 |
28 |
22 |
2080 |
1014 |
1915 |
2×920 |
974 |
|
BF-NCHV-K-235S |
71700 |
10820 |
600 |
2 |
780 |
380/4/1.6 |
78 |
28 |
22 |
2080 |
1056 |
1990 |
2×920 |
1016 |
|
BF-NCHV-K-260S |
79000 |
10820 |
600 |
2 |
780 |
380/4/1.6 |
78 |
28 |
22 |
2080 |
1140 |
2060 |
2×920 |
1100 |
|
BF-NCHV-K-280S |
85700 |
8720 |
550 |
3 |
600 |
380/4/1.2 |
75 |
28 |
22 |
2220 |
1140 |
2060 |
3×660 |
1100 |
|
BF-NCHV-K-300S |
91500 |
8720 |
550 |
3 |
600 |
380/4/1.2 |
75 |
35 |
28 |
2360 |
1140 |
2060 |
3×706 |
1100 |
|
BF-NCHV-K-320S |
96960 |
8720 |
550 |
3 |
600 |
380/4/1.2 |
75 |
35 |
28 |
2500 |
1140 |
2060 |
3×753 |
1100 |
|
BF-NCHV-K-350S |
107100 |
10820 |
600 |
3 |
780 |
380/4/1.6 |
78 |
35 |
28 |
2715 |
1140 |
2060 |
3×825 |
1100 |
|
BF-NCHV-K-390S |
119300 |
10820 |
600 |
3 |
780 |
380/4/1.6 |
78 |
35 |
28 |
3000 |
1140 |
2060 |
3×920 |
1100 |
|
BF-NCHV-K-430S |
131200 |
8720 |
550 |
4 |
600 |
380/4/1.2 |
75 |
35 |
28 |
3280 |
1182 |
2060 |
4×760 |
1142 |
|
BF-NCHV-K-473S |
144300 |
8720 |
550 |
4 |
600 |
380/4/1.2 |
75 |
42 |
28 |
3280 |
1182 |
2150 |
4×760 |
1142 |
|
BF-NCHV-K-500S |
154000 |
10820 |
600 |
4 |
780 |
380/4/1.2 |
78 |
42 |
28 |
3450 |
1182 |
2150 |
4×802 |
1142 |
|
BF-NCHV-K-550S |
167800 |
10820 |
600 |
4 |
780 |
380/4/1.6 |
78 |
42 |
28 |
3620 |
1266 |
2240 |
4×845 |
1226 |
|
BF-NCHV-K-600S |
183000 |
12200 |
630 |
4 |
800 |
380/4/1.6 |
78 |
42 |
28 |
3620 |
1350 |
2330 |
4×845 |
1310 |
Zhejiang Beifeng Refrigeration Equipment Co., Ltd is a famous China Cabinet-Style V type Condensers Factory and Cabinet-Style V type Condensers Company,and the products are exported to the Europe，South East Asia，Middle East，North America，Africa etc.
