■Product characteristics
●The Danfoss brand scroll compressor is selected,equipped with a crankcase heater,some of the models can be powered by single phase 220V.
●Filters, sight glasses and pressure switches are all Danfoss products.
●The condenser uses inner threaded copper tube, which enlarges the heat exchange area, and is equipped with adjustable speed fan.
●The unit is equipped with a microcomputer controller, which adjusts the running state according to the actual cooling requirement and ensures the safe and efficient operation of the system.
●Fully enclosed sound insulation design of the box body, the fan can adjust speed and run more quietly.
●Low temperature environment components are optional and can be operated stably in cold areas.
●Compressor and condenser can be made into two boxes according to the requirements to reduce the size and meet the rigorous installation conditions.
■Customer value
●Efficient operation, saving about 7% of annual operation cost
●Various types of 2HP〜9HP are available to meet various cooling demand.
●Easy installation, low maintenance cost, stable and reliable operation of the system
|

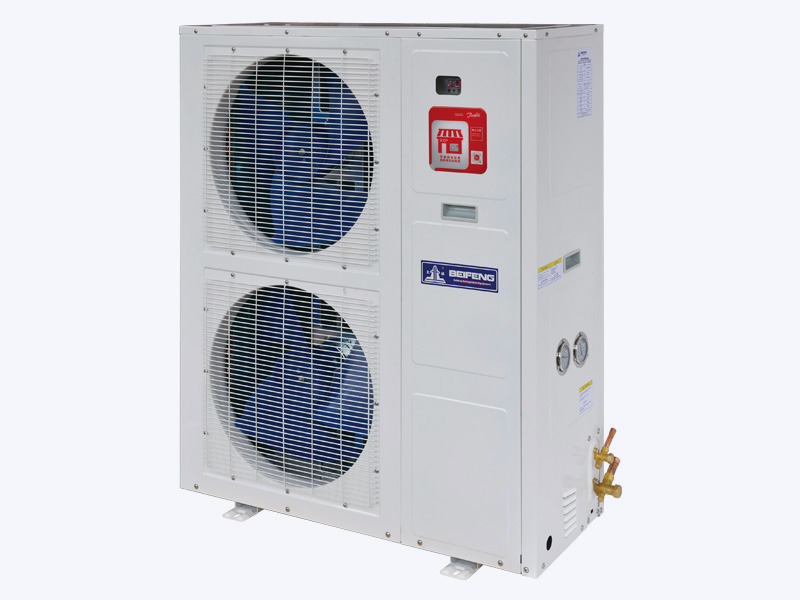

Supermarket and C-Store Medium Temp Fixed Speed Condensing Unit |
||||||||
| Project | Name | BF-CUH0200MY | BF-CUH0300MY | BF-CUH0400MY | BF-CUH0500MY | BF-CUH0600MY | BF-CUH0700MY | BF-CUH0900MY |
|
Compressor |
Model |
(MLZ015T4) |
(MLZ021T4) |
(MLZ030T4) |
(MLZ038T4) |
(MLZ045T4) |
(MLZ048T4) |
(MLZ066T4) |
|
Max operating current(A) |
4.9 |
6.8 |
9.8 |
11.7 |
14.1 |
15.3 |
20.3 |
|
|
Fan diameter |
Φ×quantity |
480×1 |
480×1 |
480×1 |
480×2 |
480×2 |
480×2 |
550×2 |
|
Input power |
(w) |
1810 |
2552 |
3735 |
4439 |
5030 |
5380 |
7720 |
|
Nominal refrigeraticn |
(w) |
3580 |
4960 |
7390 |
8990 |
10680 |
12870 |
15440 |
|
Fan motor |
Power supply |
220V/1ph/50Hz |
||||||
|
Connection pipe dimension |
Suction |
5/8" |
5/8" |
3/4" |
3/4" |
3/4" |
7/8" |
1-1/8" |
|
Exhaust |
3/8" |
3/8" |
3/8" |
1/2" |
1/2" |
1/2" |
5/8" |
|
|
External dimension(mm) |

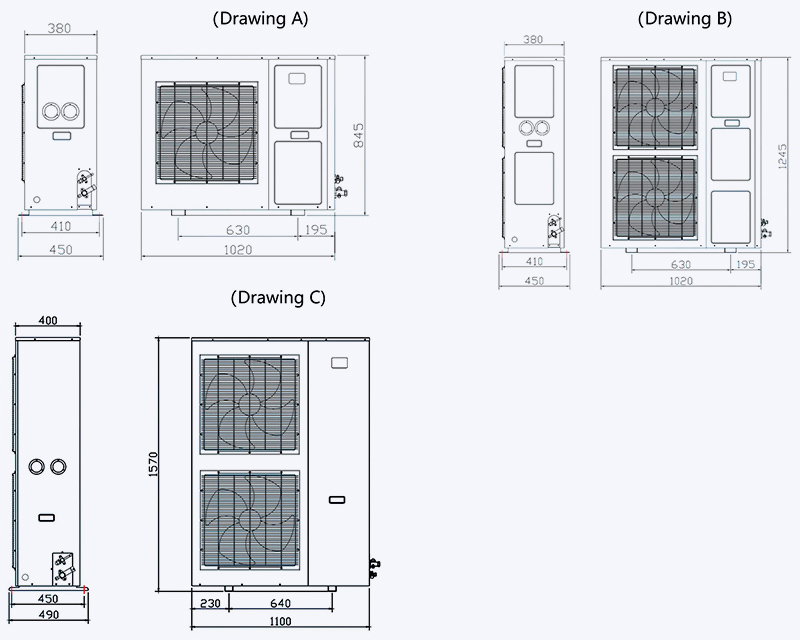

(Drawing A) |
(Drawing B) |
(Drawing C) |
|||||
|
Working condition: R404A, ambient temperature 32℃, evaporation temperature - 10℃measured, refrigeration capacity based on the suction temperature 20°C, supercooled. The actual parameters are based on nameplate. |
||||||||
■Product characteristics
●The Danfoss special low temperature compressor is selected, equipped with a crankcase heater,some of the models can be powered by single phase 220V.
●Filters, sight glasses and pressure switches are all Danfoss products.
●The condenser uses inner threaded copper tube, which enlarges the heat exchange area, and is equipped with adjustable speed fan.
●The unit is equipped with a microcomputer controller, which adjusts the running state according to the actual cooling requirement and ensures the safe and efficient operation of the system.
●Fully enclosed sound insulation design of the box body, the fan can adjust speed and run more quietly.
●The super low temperature air-jet enthalpy increasing refrigeration system is composed of a special scroll compressor with an intermediate jet and a system design with an economic heat exchanger
●Low temperature environment components are optional and can be operated stably in cold areas.
●Compressor and condenser can be made into two boxes according to the requirements to reduce the size and meet the rigorous installation conditions.
■Customer value
●Efficient operation, saving about 7% of annual operation cost
●Various types of 4HP-10HP are available to meet various cooling demand.
●Easy installation, low maintenance cost, stable and reliable operation of the system
|
Technical data of supermarket and c-store low temp fixed speed condensing unit |
||||||
| Project | Name |
BF-CUH0400JY |
BF-CUH0500JY |
BF-CUH0600JY |
BF-CUH0800JY |
BF-CUH1000JY |
|
Compressor |
Model |
(LLZ013T4) |
(LLZ015T4) |
(LLZ018T4) |
(LLZ024T4) |
(LLZ034T4) |
|
Max operating current(A) |
9.8 |
12 |
14.4 |
18.3 |
22.7 |
|
|
Fan diameter |
Φ×quantity |
480×1 |
480×2 |
480×2 |
550×2 |
550×2 |
|
Input power |
(w) |
3087 |
3595 |
4137 |
5113 |
6805 |
|
Nominal refrigeraticn capacity |
(w) |
4482 |
5313 |
6330 |
7950 |
10810 |
|
Fan motor |
Power supply |
220V/lph/50Hz |
||||
|
Connection pipe dimension |
Suction |
5/8" |
3/4" |
3/4" |
1-1/8" |
1-1/8" |
|
Exhaust |
3/8" |
1/2" |
1/2" |
5/8" |
5/8" |
|
|
External dimension(mm) |
(Drawing A) |
(Drawing B) |
(Drawing C) |
|||
|
Working condition: R404A, ambient temperature 32℃, evaporation temperature - 30℃measured, refrigeration capacity based on the suction temperature 20℃, supercooled. The actual parameters are based on nameplate. |
||||||
■Product characteristics
●The Danfoss inverter frequency scroll compressor is selected,equipped with high efficiency permanent magnet motor to achieve stepless energy regulation and low noise and high efficiency operation.
●Compressor equipped with Danfoss refrigeration special inverter, built-in wave filter and electric reactor, improve motor power factor, suitable for environment of high requirements of electromagnetic compatibility.
●Using Danfoss brand CDU special controller
●Using Danfoss brand filter, sight glass and pressure switch
●The condenser uses inner threaded copper tube, which enlarges the heat exchange area, and is equipped with adjustable speed fan.
●The unit is equipped with a microcomputer controller, which adjusts the running state according to the actual cooling requirement and ensures the safe and efficient operation of the system.
●Fully enclosed sound insulation design of the box body, the fan can adjust speed and run more quietly.
●Low temperature environment components are optional and can be operated stably in cold areas.
●Compressor and condenser can be made into two boxes according to the requirements to reduce the size and meet the rigorous installation conditions
■Customer value
●Efficient operation, saving about 30% of annual operation cost
●About 30%〜100% energy regulation range
●Seven models are available to meet the refrigeration requirements of most convenience stores'refrigeration systems.
●Easy installation, low maintenance cost, stable and reliable operation of the system
|
Technical data of supermarket and c-store medium temp inverter condensing unit |
||||||||||
|
Model |
Compressor Model |
Max current (A) |
Input power(w) |
Connection pipe dimension(mm) |
External dimension (MM) |
Ambient temperature(℃) |
Evaporation temperature(℃) |
Frequency range |
Refrigeration capacity range(KW) |
|
|
Suction |
Exhaust |
|||||||||
|
BF-CUE0200MY |
VLZ028TG |
8.1 |
2650 |
5/8" |
3/8" |

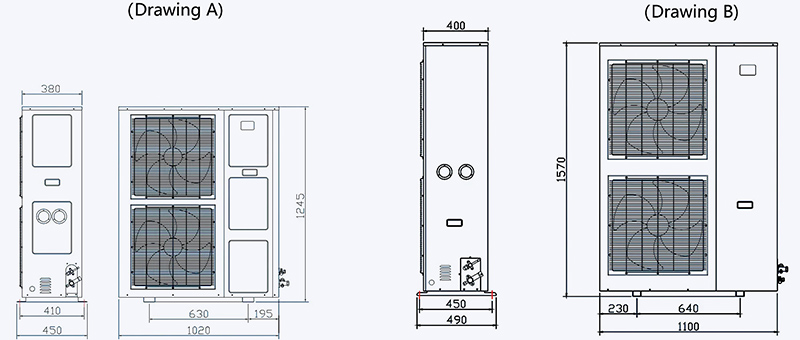

(Drawing A) |
27 |
-10 |
30～95Hz |
1.9～4.9 |
|
32 |
1.8～4.52 |
|||||||||
|
38 |
1.68～4.1 |
|||||||||
|
43 |
1.5～3.7 |
|||||||||
|
BF-CUE0300MY |
VLZ035TGA |
9.1 |
3450 |
3/4" |
1/2" |
(Drawing A) |
27 |
-10 |
30～95Hz |
2.5～6.1 |
| 32 |
2.3～5.6 |
|||||||||
| 38 |
2.1～5.1 |
|||||||||
| 43 |
1.92～4.6 |
|||||||||
|
BF-CUE0400MY |
VLZ044TGA |
12.1 |
4850 |
3/4" |
1/2" |
(Drawing a) |
27 |
-10 |
30～80Hz |
3.17～9.3 |
|
32 |
2.97～8.45 |
|||||||||
|
38 |
2.58～7.71 |
|||||||||
|
43 |
2.19～6.84 |
|||||||||
|
BF-CUE0500MY |
VLZ044TGA |
12.1 |
4850 |
3/4" |
1/2" |
(Drawing A) |
27 |
-10 |
30～95Hz |
3.3～11.5 |
|
32 |
3.1～10.8 |
|||||||||
|
38 |
2.64～9.7 |
|||||||||
|
43 |
2.4～8.6 |
|||||||||
|
BF-CUE0600MY |
VZH065 |
27.2 |
7700 |
1-1/8" |
5/8" |
(Drawing B) |
27 |
-10 |
20～65Hz |
4.04～12.64 |
|
32 |
3.73～11.93 |
|||||||||
|
38 |
3.34～10.68 |
|||||||||
|
43 |
2.94～9.87 |
|||||||||
|
BF-CUE0700MY |
VZH065 |
27.2 |
7700 |
1-1/8" |
5/8" |
(Drawing B) |
27 |
-10 |
20～80Hz |
4.28～13.63 |
|
32 |
3.95～12.95 |
|||||||||
|
38 |
3.55～11.67 |
|||||||||
|
43 |
3.23～10.73 |
|||||||||
|
BF-CUE0800MY |
VZH065 |
27.2 |
7700 |
1-1/8" |
5/8" |
(Drawing B) |
27 |
-10 |
20～95Hz |
4.7～15.31 |
|
32 |
4.41～14.51 |
|||||||||
|
38 |
3.88～13.1 |
|||||||||
|
43 |
3.53～11.92 |
|||||||||
|
Working condition： R404A, suction overheating 10℃, supercooled Power Supply Voltage-Three Phase 380V |
||||||||||
R22
|
Selection form of medium temp fixed speed cooling capacity R22 |
|||||||
|
Model |
Ambient temperature(℃) |
Refrigeration Capacity(W) |
|||||
|
Evaporation temperature(℃) |
|||||||
|
-15 |
-10 |
-5 |
0 |
5 |
10 |
||
|
BF-CUH0200M (MLM015T4) |
27 |
2930 |
3630 |
4280 |
4990 |
5740 |
6600 |
|
32 |
2810 |
3460 |
4080 |
4750 |
5470 |
6280 |
|
|
38 |
|
3250 |
3870 |
4450 |
5180 |
5950 |
|
|
43 |
|
|
3670 |
4460 |
4890 |
5620 |
|
|
BF-CUH0300M (MLM021T4) |
27 |
4350 |
5140 |
6050 |
7060 |
8180 |
9390 |
|
32 |
4100 |
4880 |
5760 |
6730 |
7790 |
8950 |
|
|
38 |
|
4510 |
5450 |
6390 |
7400 |
8530 |
|
|
43 |
|
|
5150 |
6040 |
7020 |
8070 |
|
|
BF-CUH0400M (MLM030T4) |
27 |
6180 |
7490 |
8920 |
10550 |
12190 |
13910 |
|
32 |
5880 |
7140 |
8510 |
10050 |
11610 |
13250 |
|
|
38 |
|
6720 |
8060 |
9500 |
11040 |
12640 |
|
|
43 |
|
|
7600 |
8960 |
10460 |
12040 |
|
|
BF-CUH0500M (MLM038T4) |
27 |
6940 |
8610 |
10490 |
12470 |
14310 |
16300 |
|
32 |
6610 |
8200 |
9990 |
11880 |
13680 |
15530 |
|
|
38 |
|
7580 |
9380 |
11080 |
13050 |
14580 |
|
|
43 |
|
|
8870 |
10390 |
12330 |
13940 |
|
|
BF-CUH0600M (MLM045T4) |
27 |
8330 |
10240 |
12370 |
14700 |
17170 |
19660 |
|
32 |
7930 |
9760 |
11780 |
14000 |
16360 |
18730 |
|
|
38 |
|
9120 |
11110 |
13170 |
15450 |
17760 |
|
|
43 |
|
|
10550 |
12320 |
14640 |
16780 |
|
|
BF-CUH0700M (MLM048T4) |
27 |
9470 |
11640 |
14060 |
16705 |
19480 |
22310 |
|
32 |
9015 |
11095 |
13390 |
15910 |
18560 |
21250 |
|
|
38 |
8110 |
10360 |
12630 |
14960 |
17530 |
20150 |
|
|
43 |
|
9325 |
11990 |
13990 |
16620 |
19040 |
|
|
BF-CUH0900M (MLM066T4) |
27 |
13350 |
16090 |
18980 |
22400 |
26440 |
31190 |
|
32 |
12590 |
15180 |
17900 |
21130 |
24940 |
29430 |
|
|
38 |
11840 |
14270 |
16840 |
19870 |
23440 |
27660 |
|
|
43 |
|
12840 |
15150 |
17880 |
21100 |
24890 |
|
|
Note : Suction overheating 20℃ , supercooled |
|||||||
R404A
|
Selection form of medium temp fixed speed cooling capacity R404A |
|||||||
|
Model |
Ambient temperature(℃) |
Refrigeration Capacity(W) |
|||||
|
Evaporation temperature(℃) |
|||||||
|
-15 |
-10 |
-5 |
0 |
5 |
10 |
||
|
BF-CUH0200MY (MLZ015T4) |
27 |
3100 |
3790 |
4515 |
5240 |
6200 |
6940 |
|
32 |
2900 |
3580 |
4220 |
4900 |
5800 |
6490 |
|
|
38 |
2650 |
3300 |
3930 |
4519 |
5260 |
6040 |
|
|
43 |
2230 |
2730 |
3560 |
4030 |
4750 |
5460 |
|
|
BF-CUH0300MY (MLZ021T4) |
27 |
4800 |
5660 |
6640 |
7730 |
8910 |
10206 |
|
32 |
4450 |
5240 |
6150 |
7160 |
8250 |
9450 |
|
|
38 |
4000 |
4830 |
5630 |
6530 |
7610 |
8700 |
|
|
43 |
3530 |
4340 |
5150 |
5920 |
6870 |
7840 |
|
|
BF-CUH0400MY (MLZ030T4) |
27 |
6450 |
7910 |
9430 |
11130 |
12860 |
14530 |
|
32 |
6090 |
7390 |
8810 |
10400 |
12020 |
13710 |
|
|
38 |
5720 |
6820 |
8180 |
9440 |
10900 |
12830 |
|
|
43 |
5290 |
6190 |
7370 |
8590 |
10050 |
11680 |
|
|
BF-CUH0500MY (MLZ038T4) |
27 |
7860 |
9620 |
11395 |
13150 |
15100 |
17190 |
|
32 |
7350 |
8990 |
10650 |
12290 |
14150 |
16070 |
|
|
38 |
6810 |
8200 |
9730 |
11450 |
13250 |
15000 |
|
|
43 |
6260 |
7550 |
8800 |
10370 |
12060 |
13620 |
|
|
BF-CUH0600MY (MLZ045T4) |
27 |
9660 |
11530 |
13600 |
15400 |
18390 |
21050 |
|
32 |
8950 |
10680 |
12590 |
14390 |
17030 |
19490 |
|
|
38 |
8210 |
9750 |
11380 |
13360 |
15680 |
18020 |
|
|
43 |
|
8775 |
10340 |
12050 |
14200 |
16380 |
|
|
BF-CUH0700MY (MLZ048T4) |
27 |
10250 |
13500 |
15400 |
18390 |
21050 |
23940 |
|
32 |
9490 |
12870 |
14390 |
17030 |
19490 |
22380 |
|
|
38 |
8640 |
11380 |
13360 |
15680 |
18020 |
20720 |
|
|
43 |
|
10340 |
12050 |
14200 |
16380 |
18840 |
|
|
BF-CUH0900MY (MLZ066T4) |
27 |
14510 |
17490 |
20640 |
24350 |
28730 |
40910 |
|
32 |
13690 |
16500 |
19470 |
22970 |
27110 |
33900 |
|
|
38 |
12870 |
15510 |
18300 |
21590 |
25480 |
31990 |
|
|
43 |
|
13950 |
16470 |
19430 |
22930 |
30070 |
|
|
Note : Suction overheating 20℃ , supercooled |
|||||||
R404A
|
Selection form of low temp fixed speed cooling capacity R404A |
|||||||||
|
Model |
Ambient temperature(℃) |
Refrigeration Capacity(W) |
|||||||
|
Evaporation temperature(℃) |
|||||||||
|
-35 |
-30 |
-25 |
-20 |
-15 |
-10 |
-5 |
0 |
||
|
BF-CUH0400JY (LLZ013T4) |
27 |
4044 |
4819 |
5507 |
6333 |
7473 |
8743 |
10142 |
11562 |
|
32 |
3720 |
4482 |
5245 |
6031 |
7117 |
8327 |
9659 |
11011 |
|
|
38 |
3441 |
4123 |
4948 |
5690 |
6714 |
7856 |
9112 |
10388 |
|
|
43 |
3235 |
3917 |
4700 |
5405 |
6378 |
7463 |
8657 |
9869 |
|
|
BF-CUH0500JY (LLZ015T4) |
27 |
4840 |
5713 |
6883 |
7916 |
9341 |
10929 |
12677 |
14452 |
|
32 |
4453 |
5313 |
6556 |
7539 |
8896 |
10408 |
12073 |
13764 |
|
|
38 |
4230 |
5154 |
6184 |
7112 |
8392 |
9819 |
11390 |
12985 |
|
|
43 |
4061 |
4741 |
5690 |
6543 |
7721 |
9033 |
10479 |
11946 |
|
|
BF-CUH0600JY (LLZ018T4) |
27 |
5766 |
6806 |
8116 |
9333 |
11013 |
12885 |
14947 |
17039 |
|
32 |
5305 |
6330 |
7729 |
8889 |
10488 |
12272 |
14235 |
16228 |
|
|
38 |
5039 |
6076 |
7292 |
8385 |
9895 |
11577 |
13429 |
15309 |
|
|
43 |
4636 |
5651 |
6781 |
7798 |
9202 |
10767 |
12489 |
14238 |
|
|
BF-CUH0800JY (LLZ024T4) |
27 |
7242 |
8548 |
10352 |
11905 |
14048 |
16436 |
19066 |
21735 |
|
32 |
6663 |
7950 |
9859 |
11338 |
13379 |
15653 |
18158 |
20700 |
|
|
38 |
6396 |
7751 |
9301 |
10696 |
12622 |
14767 |
17130 |
19528 |
|
|
43 |
6140 |
7441 |
8929 |
10268 |
12117 |
14177 |
16445 |
18747 |
|
|
BF-CUH1000JY (LLZ034T4) |
27 |
9907 |
11624 |
14077 |
16189 |
19103 |
22138 |
25926 |
29556 |
|
32 |
9114 |
10810 |
13407 |
15418 |
18193 |
21286 |
24692 |
28149 |
|
|
38 |
8659 |
10540 |
12648 |
14545 |
17163 |
20081 |
23294 |
26555 |
|
|
43 |
8226 |
10118 |
12142 |
13963 |
16477 |
19278 |
22362 |
25493 |
|
|
Note : Suction overheating 10℃ , supercooled |
|||||||||
 |
Selection of danfoss frozen scroll compressor，which has superior performance，high temperature resistance，low noise and long service life. |  |
Using Danfoss brand drying filter，pressure switch，force proportional action and double-layer pressure controlled bellows protection，drying filter has the advantages of quick water absorption，high filtration efficiency，corrosion resistance，no escape from impurities and moisture，so as to escort the safety of the unit. | |||
 |
Supermarket and c-store inverter condensing unit using Danfoss refrigeration special inverter，built-in wave filter and electric reactor，improve motor power factor，suitable for environmentof high requirements of electromagnetic compatibility.Using Danfoss brand CDU special controller，the operation is more stable. |  |
Supermarket and c-store fixed speed condensing unit using imported CPU chip，which intellectualizes the whole process，automatically real-time monitoring testing，detection，fast and accurate to achieve the preset temperature.Strong anti-interference，waterproof，485 communication interface，suitable for multi-unit connection，long-distance remote control. |
Application area
 |
 |
 |
||

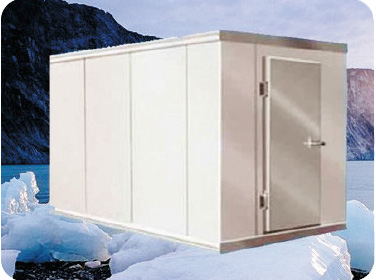

| Convenience stores | Restaurants | Small commercial cold storage room |
Application scenario
 |
 |
 |
||

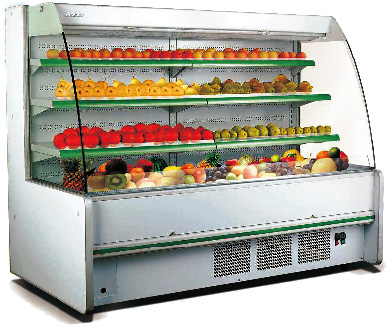

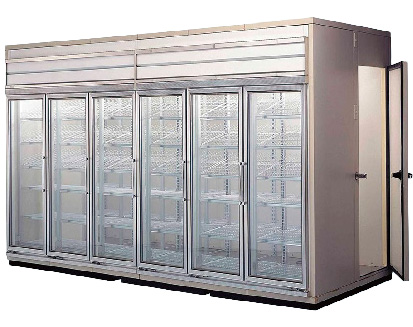

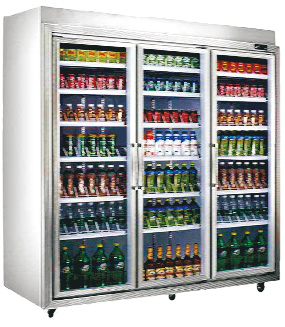

| Air curtain cabinet | Sliding door cabinet | Walk in coldroom |
If you have any questions or need help, please contact us directly, we will provide you with online help and services in time.
.jpg?imageView2/2/w/300/h/300/format/jp2/q/75 "Aluminium Fin Evaporator")
Professional refrigeration equipment manufacturer
Zhejiang Beifeng Refrigeration Equipment Co., Ltd. has 35 years history of manufacturing refrigeration equipment. Currently, it has two processing bases located in Shengzhou, Zhejiang, with a production building of 60,000 square meters. It has set up three sales companies in Shanghai, Beijing, and Guangzhou, with strong technical force, advanced equipment, complete varieties and stable quality. The company has a high-quality inspection center to detect the performance index of refrigeration products and imported vacuum-type helium leak detectors for condensers and evaporators. It has a great influence in the national refrigeration industry and occupies a large market, with distributors in all major cities; It enjoys a high reputation not only in the domestic market, but also in the overseas market, and the products are exported to Europe, Southeast Asia, the Middle East, North America, Africa, etc.
In the refrigeration process, the fair design of the condenser is an important part of improving the energy efficiency r...
In industrial air conditioning refrigeration systems, evaporators, condensers, compressors and throttle valves are four ...
Different condensers according to steam condensation can be divided into surface type (also called partition type) and m...
Air coolers can be used for cooling or condensation, and are widely used in: refining, condensation of petrochemical ove...
In summer, the compressor's exhaust temperature is relatively high and the hand cannot touch it. According to national s...
An air cooler is a heat exchanger that uses air as a cooling medium to cool a warm stream to a desired temperature. Refe...
Copyright © Zhejiang Beifeng Refrigeration Equipment Co.,Ltd.All Rights Reserved. Custom Refrigeration Equipment Manufacturers
英语
简体中文
