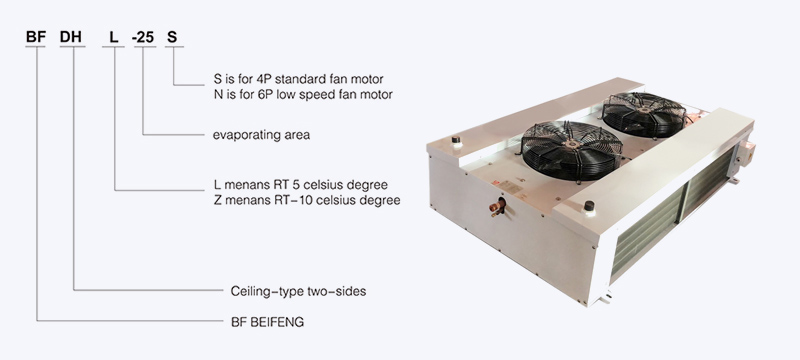

HIGH EFFICIENCY TWO-SIDES CEILING-TYPE AIR COOLER
The usage
DH series Two-side Air-coolers are used with condensening units of various capacities in different cold room.And the type coolers DH /Z is used in the air-conditioner of 5°C,such as big capacity mall .supermarket, vegetable-storage, work shop.DH /L is used at the temp.of 10°C,such as the storage of fish,meat and other food.
Advantages of our product
①、DH series Two-side Air-coolers boast the characteristics of well-designed,smart appearance,light,easy to be installed,as well as big capacity.
②、the cover of the air-cooler is painted with new art and printed Aluminium panel,has a property of corrosion proof.good-appearance.and long life.
③、the evaporating tube uses the high efficient female screw tube.Expanded by liquid pressure machine,the fin and the tube combined very tight,stable and improved its'capacity.
④、the product used with the outer rotary fan motor,low- noisy,function stable.
DHL SERIAL TECHNICAL DATA
Model |
Evaporate zbility |
Area |
air volume |
380V/50Hz outer Rotor fen Data |
220V heater |
|||||
At=8°C |
Fanxguantity |
each fan |
Ciol (KW ) |
Driain water (KW ) |
Tator(KW) |
|||||
KW |
m² |
m³/h |
ΦmmxN |
r/Min |
W |
A |
||||
RT≥5℃ DHZ pin space: 4-4.5mm |
||||||||||
BF-DHL-20S |
5750 |
20 |
2290 |
cp350×1 |
1380 |
140 |
0.38 |
1.32 |
1.32 |
2.64 |
BF-DHL-25S |
7187 |
25 |
4800 |
cp450×1 |
1360 |
250 |
0.6 |
1.4 |
1.4 |
2.8 |
BF-DHL-35S |
10062 |
35 |
6800 |
cp400×2 |
1380 |
180 |
0.47 |
1.8 |
1.8 |
3.6 |
BF-DHL-45S |
12937 |
45 |
6800 |
cp400×2 |
1380 |
180 |
0.47 |
1.8 |
1.8 |
3.6 |
BF-DHL-55S |
15812 |
55 |
6800 |
cp400×2 |
1380 |
180 |
0.47 |
2.4 |
2.4 |
4.8 |
BF-DHL-70S |
20125 |
70 |
9600 |
cp450×2 |
1360 |
250 |
0.6 |
4.8 |
2.4 |
7.2 |
BF-DHL-80S |
23000 |
80 |
9600 |
cp450×2 |
1360 |
250 |
0.6 |
5.4 |
2.7 |
8.1 |
BF-DHL-100S |
28750 |
100 |
13140 |
cp500×2 |
1300 |
450 |
0.9 |
5.15 |
3.15 |
8.3 |
BF-DHL-115S |
33062 |
115 |
13140 |
cp500×2 |
1300 |
450 |
0.9 |
7 |
3.51 |
10.51 |
BF-DHL-130S |
37375 |
130 |
17440 |
cp550×2 |
1300 |
600 |
1.2 |
7 |
3.51 |
10.51 |
BF-DHL-140S |
40250 |
140 |
19710 |
cp500×3 |
1300 |
450 |
0.9 |
7.74 |
3.87 |
11.61 |
BF-DHL-160S |
46000 |
160 |
19710 |
cp500×3 |
1300 |
450 |
0.9 |
7.74 |
3.87 |
11.61 |
BF-DHL-180S |
51750 |
180 |
26160 |
cp550×3 |
1300 |
600 |
1.2 |
8.46 |
4.23 |
12.69 |
BF-DHL-200S |
57500 |
200 |
26160 |
cp550×3 |
1300 |
450 |
0.9 |
8.4 |
5.66 |
14.06 |
DHZ SERIALTECHNICAL DATA
Model |
Evaporate zbility |
Area |
air volume |
380V/50Hz outer Rotor fen Data |
220V heater |
|||||
At=8°C |
Fanxguantity |
each fan |
Ciol (KW ) |
Driain water (KW ) |
Tator(KW) |
|||||
KW |
M2 |
m³/h |
cpmmxN |
r/Min |
W |
A |
||||
RT≥-10°C DHZ pin space: 6mm |
||||||||||
BF-DHZ-15S |
2950 |
15 |
2290 |
cp350×1 |
1380 |
140 |
0.38 |
1.32 |
1.32 |
2.64 |
BF-DHZ-20S |
3940 |
20 |
4800 |
cp450×1 |
1360 |
250 |
0.6 |
1.4 |
1.4 |
2.8 |
BF-DHZ-25S |
4925 |
25 |
6800 |
cp400×2 |
1380 |
180 |
0.47 |
1.8 |
1.8 |
3.6 |
BF-DHZ-35S |
6895 |
35 |
6800 |
cp400×2 |
1380 |
180 |
0.47 |
1.8 |
1.8 |
3.6 |
BF-DHZ-40S |
7780 |
40 |
6800 |
cp400×2 |
1380 |
180 |
0.47 |
2.4 |
2.4 |
4.8 |
BF-DHZ-50S |
9850 |
50 |
9600 |
cp450×2 |
1360 |
250 |
0.6 |
4.8 |
2.4 |
7.2 |
BF-DHZ-60S |
11820 |
60 |
9600 |
cp450×2 |
1360 |
250 |
0.6 |
5.4 |
2.7 |
8.1 |
BF-DHZ-80S |
15760 |
80 |
13140 |
cp500×2 |
1300 |
450 |
0.9 |
5.15 |
3.15 |
8.3 |
BF-DHZ-90S |
17730 |
90 |
13140 |
cp500×2 |
1300 |
450 |
0.9 |
7 |
3.51 |
10.51 |
BF-DHZ-100S |
19700 |
100 |
17440 |
cp550×2 |
1300 |
600 |
1.2 |
7 |
3.51 |
10.51 |
BF-DHZ-110S |
21670 |
110 |
19710 |
cp500×3 |
1300 |
450 |
0.9 |
7.74 |
3.87 |
11.61 |
BF-DHZ-120S |
23640 |
120 |
19710 |
cp500×3 |
1300 |
450 |
0.9 |
7.74 |
3.87 |
11.61 |
BF-DHZ-140S |
27580 |
140 |
26160 |
cp550×3 |
1300 |
600 |
1.2 |
8.46 |
4.23 |
12.69 |
BF-DHZ-150S |
29550 |
150 |
26160 |
cp550×3 |
1300 |
450 |
0.9 |
8.4 |
5.66 |
14.06 |

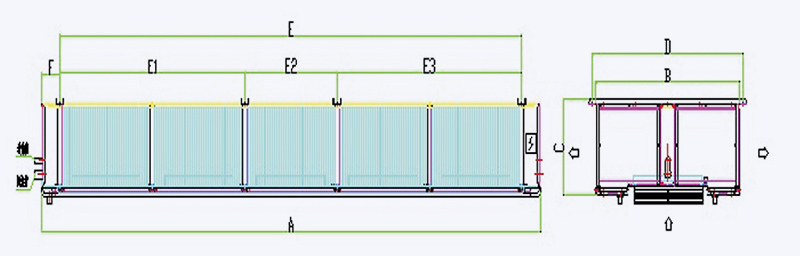

CEILING BILATERAL COOLED AIR COOLER SERIES SPECIFICATIONS
Model △t=8℃ RT≥5℃ |
Model △t=8℃ RT≥-10℃ |
dimensions |
connection |
|||||||||
A |
B |
C |
D |
E |
E1 |
E2 |
E3 |
F |
inlet |
outlet |
||
mm |
Φmm |
|||||||||||
BF-DHL-20S |
BF-DHZ-15S |
860 |
860 |
280 |
915 |
620 |
|
|
|
120 |
12 |
19 |
BF-DHL-25S |
BF-DHZ-20S |
920 |
960 |
280 |
1015 |
680 |
|
|
|
12 |
19 |
|
BF-DHL-35S |
BF-DHZ-25S |
1210 |
960 |
280 |
1015 |
960 |
|
|
|
12 |
19 |
|
BF-DHL-45S |
BF-DHZ-35S |
1210 |
960 |
320 |
1015 |
960 |
|
|
|
16 |
22 |
|
BF-DHL-55S |
BF-DHZ-40S |
1470 |
960 |
320 |
1015 |
1220 |
|
|
|
16 |
22 |
|
BF-DHL-70S |
BF-DHZ-50S |
1470 |
960 |
380 |
1015 |
1220 |
610 |
|
|
16 |
28 |
|
BF-DHL-80S |
BF-DHZ-60S |
1650 |
960 |
380 |
1015 |
1380 |
690 |
|
|
16 |
28 |
|
BF-DHL-100S |
BF-DHZ-80S |
1910 |
1060 |
430 |
1115 |
1630 |
815 |
|
|
19 |
32 |
|
BF-DHL-115S |
BF-DHZ-90S |
2110 |
1060 |
430 |
1115 |
1830 |
915 |
|
|
19 |
32 |
|
BF-DHL-130S |
3F-DHZ-100S |
2110 |
1160 |
480 |
1215 |
1830 |
915 |
|
|
22 |
35 |
|
BF-DHL-140S |
BF-DHZ-110S |
2310 |
1060 |
480 |
1115 |
2030 |
676 |
676 |
|
22 |
35 |
|
BF-DHL-160S |
BF-DHZ-120S |
2310 |
1060 |
530 |
1115 |
2030 |
676 |
676 |
|
22 |
35 |
|
BF-DHL-180S |
BF-DHZ-140S |
2510 |
1160 |
530 |
1215 |
2230 |
740 |
740 |
|
22 |
35 |
|
BF-DHL-200S |
BF-DHZ-150S |
2510 |
1160 |
580 |
1215 |
2230 |
740 |
740 |
|
22 |
35 |
