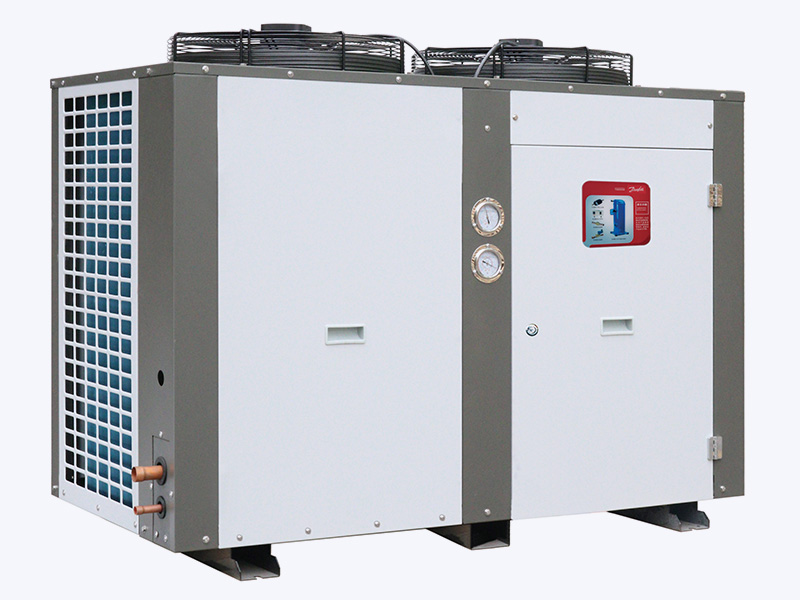

Danfoss All-IN-ONE Condensing Unit（8HP-15HP）

Unit power

2HP

3HP

4HP

5 HP

6HP

CODENSING UNIT

Power supply

380V/3/50Hz~220V/1/50Hz

380V/3/50Hz

Evaporation temp range

-15 °C~+10 °C

Model

BF-CUB0200MY(S)

BF-CUB0300MY(S)

BF-CUB0400MY

BF-CUB0500MY

BF-CUB0600MY

Nominal condition performance

Capacity

3.46 KW

4.88 KW

7.14 KW

8.2 KW

9.76 KW

COP

≥1.8

≥1.8

≥1.8

≥2.2

≥2.2

Compressor

Type

Danfoss ALL-IN-ONE Condensing Unit

Model

MLZ015T4/T5

MLZ021T4/T5

MLZ030T4

MLZ038T4

MLZ045T4

Fan motor

Quantity

1

1

1

2

2

Total power

60W

60W

60W

60Wx2

60Wx2

Connecting pipe diameter

Suction

5/8 "

5/8 "

3/4 "

3/4 "

3/4 "

Exhaust

3/8 "

3/8 "

3/8 "

1/2 "

1/2 "

External drawin

Number

A1

A2

Net weight

76kg

82.5kg

95kg

118kg

123kg

Matching

electric

aircooler

Model

NPC301D04

NPC302C04

NPC302F04

NPC402C04

NPC402D04

Fan Motor

Quantity

1

2

2

2

2

Total power

68W

68Wx2

68Wx2

135Wx2

135Wx2

Electric Heating Defrost

Input power

2.5KW

3KW

5KW

3KW

3KW

Fin space

4mm

Outline

Number

B1

B2

Dimensions

LxWxH

730x500x450

1180x500x450

1355x550x570

Installation And Positioning size

CxE

390x477

390x930

450x1105

Net Weight

20kg

32kg

38kg

47kg

50kg

Nominal condition：Evaporation temp -10℃，ambient temp32℃，Return superheat 11K,have super cooling

Unit power

7HP

8HP

9HP

10HP

15HP

CODENSING UNIT

Power supply

380V/3/50Hz

Evaporation temp range

-15 °C~+10°C

Model

BF-CUB0700MY(S)

BF-CUC0800MY(S)

BF-CUC0900MY

BF-CUC1000MY

BF-CUC1500MY

Nominal condition performance

Capacity

11.2 KW

12.6 KW

14.7 KW

17.1 KW

26.1 KW

COP

≥2.2

≥2.2

≥2.2

≥2.2

≥2.2

Compressor

Type

Danfoss ALL-IN-ONE Condensing Unit

Model

MLZ048T4

MLZ058T4

MLZ066T4

MLZ076T4

MLZ116T4

Fan motor

Quantity

2

2

2

2

2

Total power

60Wx2

450Wx2

450Wx2

450Wx2

450Wx2

Connecting pipe diameter

Suction

7/8 "

1-1/8 "

1-1/8 "

1-1/8 "

1-5/8 "

Exhaust

1/2 "

5/8 "

5/8 "

5/8 "

5/8 "

External drawing

Number

A2

A3

A4

Net weight

153kg

172kg

178kg

181kg

301kg

EVAPORATOR

Model

NPC402F04

NPC402F04

NPC403E04

NPC403E04

NPI502F04

Fan motor

Quantity

2

2

3

3

2

Total power

135Wx2

135Wx2

135Wx3

135Wx3

820Wx2

Electric Heating Defrost

Input power

5KW

5KW

4.5KW

7.5KW

9KW

Fin space

4mm

External drawing

Number

B2

B3

B2

External dimension

LxWxH

1355x550x570

1895x550x570

1990x700870

Installation dimension

CxE

450x1105

450x1645

590x1647

Net weight

57kg

69kg

74kg

178kg

Nominal condition：Evaporation temp -10℃，ambient temp32℃，Return superheat 11K,have super cooling

Unit power

2HP

3HP

4HP

5HP

6HP

CODENSING UNIT

Power supply

380V/3/50Hz~220W/1/50Hz

380V/3/50Hz

Eva poration tem p ran g

-25 °C ~-10°C

Model

BF-CUB0200MY(S)

BF-CUB0300MY(S)

BF-CUB0400MY

BF-CUB0500MY

BF-CUB0600MY

Nominal condition performance

Capacity

1.92 KW

3.05 KW

4.46 KW

5.27 KW

6.24 KW

COP

≥1.4

≥1.4

≥1.4

≥1.4

≥1.4

Compressor

Type

Danfoss ALL-IN-ONE Condensing Unit

Mode

MLZ015T4/T5

MLZ021T4/T5

MLZ030T4

MLZ038T4

MLZ045T4

Fan motor

Quantity

1

1

1

2

2

Total power

60W

60W

60W

60Wx2

60Wx2

Connecting pipe diameter

Suction

5/8 "

5/8 "

3/4 "

3/4 "

3/4 "

Exhaust

3/8 "

3/8 "

3/8 "

1/2 "

1/2 "

External drawing

Number

A1

A2

Net weight

76kg

82.5kg

95kg

118kg

123kg

EVAPORATOR

Model

NPC301C06

NPC302C06

NPC302D06

NPC402C06

NPC402D06

Fan Motor

Quantity

1

2

2

2

2

Total power

68Wx2

68Wx2

68Wx2

135Wx2

135Wx2

Electric Heating Defrost

Input power

1.5KW

2.4KW

2.4KW

3KW

3KW

Fin space

6mm

External drawing

Number

B1

B2

External dimension

LxWxH

730x500x450

1180x500x450

1355x550x570

Installation dimension

CxE

390x477

390x930

450x1105

Net weight

17kg

31kg

34kg

47kg

50kg

Nominal condition741：Evaporation temp -25℃，ambient temp32℃，Return superheat 18K,have super cooling

Number of Units

7HP

8HP

9HP

10HP

15HP

CODENSING UNIT

Power supply

380V/3/50Hz

Evaporation temp range

-25 °C~-10°C

Model

BF-CUB0700MY(S)

BF-CUC0800MY(S)

BF-CUC0900MY

BF-CUC1000MY

BF-CUC1500MY

Nominal condition performance

Capacity

6.9 KW

8 KW

8.5 KW

11.1 KW

14 KW

COP

≥1.4

≥1.4

≥1.4

≥1.4

≥1.5

Compressor

Type

Danfoss ALL-IN-ONE Condensing Unit

Model

MLZ048T4

MLZ058T4

MLZ066T4

MLZ076T4

MLZ116T4

Fan motor

Quantity

2

2

2

2

2

Total power

60Wx2

450Wx2

450Wx2

450Wx2

600Wx2

Connecting pipe diameter

Suction

7/8 "

1-1/8 "

1-1/8 "

1-1/8 "

1-5/8 "

Exhaust

1/2 "

5/8 "

5/8 "

5/8"

5/8 "

External drawing

Number

A2

A3

A4

Net weight

153kg

172kg

178kg

181kg

301kg

EVAPORATOR

Model

NPC402F06

NPC402F06

NPC403D06

NPC403E06

NPI502D07

Fan Motor

Quantity

2

2

3

3

2

Total power

135Wx2

135Wx2

135Wx3

135Wx3

820Wx2

Electric Heating Defrost

Input power

5KW

5KW

4.5KW

7.5KW

9KW

Fin Pitch

6mm

External drawing

Number

B2

B3

B2

External dimension

LxWxH

1355x550x570

1890x550x570

1990x700x850

Installation dimension

CxE

450x1105

450x1645

590x1647

Net Weight

56kg

69kg

74kg

157kg

Nominal condition：Evaporation temp -25℃，ambient temp32℃，Return superheat 18K,have super cooling
