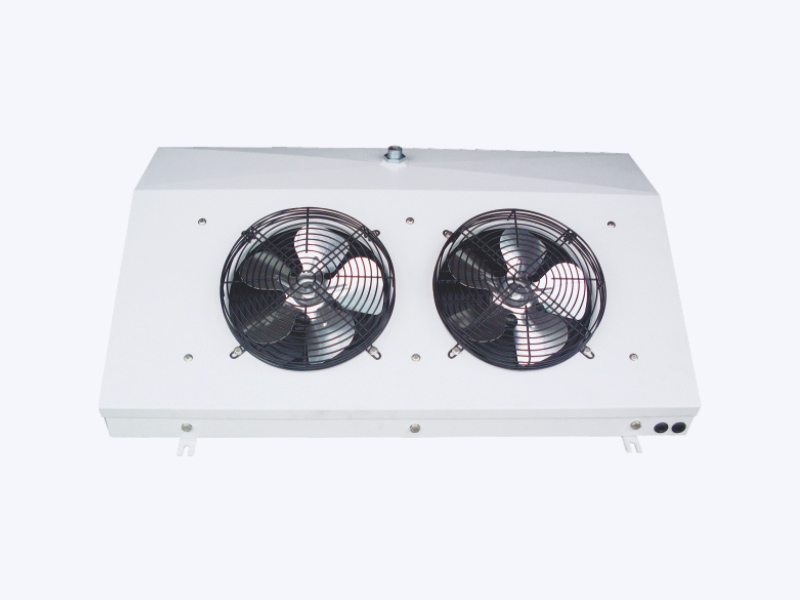

HIGH-EFFICIENT CEILING TYPE SIDE AIR COOLER
|
Model |
Refrigerating effect At=7 ℃ |
tube capacity |
fan motor (Voltage 220V rotation speed 1300r/min) |
Heater Defrost |

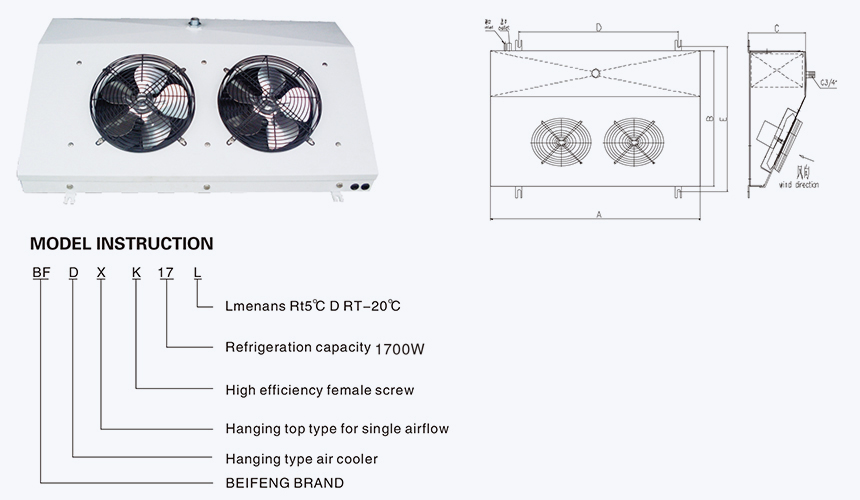

Dim (mm) |
Mounting Dim(mm) |
Connecting |
||||||
|
Fan×QTY |
airvolume |
Input power |
Inlet |
Outlet |
|||||||||
|
Model |
(W) |
(dm³) |
(mm) |
(m³/h) |
(W) |
Kw/220V |
A |
B |
C |
D |
E |
(mm) |
(mm) |
|
RT5°C Fin space:4.0mm |
|||||||||||||
|
BF-DXK17L |
1720 |
1.5 |
250×1 |
1010 |
73×1 |
0.6 |
770 |
410 |
200 |
570 |
450 |
12 |
12 |
|
BF-DXK29L |
2920 |
2.5 |
250×2 |
2020 |
73×2 |
1 |
1140 |
410 |
200 |
940 |
450 |
12 |
16 |
|
BF-DXK35L |
3495 |
3 |
250×2 |
2020 |
73×2 |
1.2 |
1325 |
410 |
200 |
1125 |
450 |
12 |
16 |
|
BF-DXK51L |
5080 |
4.3 |
250×3 |
3030 |
73×3 |
1.7 |
1820 |
410 |
200 |
1620 |
450 |
12 |
19 |
|
RT -20°CFin space:5.5mm |
|||||||||||||
|
BF-DXK12D |
1185 |
1.8 |
200×2 |
900 |
33×2 |
0.7 |
880 |
410 |
200 |
680 |
450 |
12 |
16 |
|
BF-DXK18D |
1780 |
2.7 |
250×3 |
3030 |
73×3 |
1.1 |
1255 |
410 |
200 |
1055 |
450 |
12 |
16 |
|
BF-DXK32D |
3185 |
4.8 |
250×4 |
4040 |
73×4 |
1.9 |
2010 |
410 |
200 |
1810 |
450 |
12 |
19 |
ORDINARY CEILING TYPE SIDE AIR COOLER
|
Model |
Refrigerating effect |
tube capacity |
fan motor (Voltage 220V rotation speed 1300r/min) |
Heater Defrost |
Dim (mm) |
Mounting Dim(mm) |
Connecting |
|||||||
|
Rt5℃ |
RT -18°C |
Fan×QTY |
airvolume |
Input power |
Inlet |
Outlet |
||||||||
|
Model |
(W) |
(W) |
(dm³) |
(mm) |
(m³/h) |
(W) |
Kw/220V |
A |
B |
C |
D |
E |
(mm) |
(mm) |
|
BF-DX02 |
287 |
180 |
0.36 |
172×1 |
340 |
33×1 |
0.3 |
350 |
370 |
170 |
275 |
395 |
9.52 |
9.52 |
|
BF-DX03 |
390 |
252 |
0.51 |
200×1 |
400 |
33×1 |
0.34 |
380 |
400 |
160 |
310 |
425 |
9.52 |
9.52 |
|
BF-DX04 |
554 |
360 |
0.66 |
172×2 |
680 |
33×2 |
0.55 |
600 |
370 |
170 |
525 |
395 |
9.52 |
9.52 |
|
BF-DX05 |
780 |
504 |
0.93 |
200×2 |
800 |
33×2 |
0.63 |
680 |
400 |
160 |
610 |
425 |
9.52 |
9.52 |
|
BF-DX06 |
902 |
580 |
1.02 |
172×3 |
1020 |
33×3 |
0.85 |
1000 |
370 |
170 |
825 |
395 |
9.52 |
9.52 |
|
BF-DX08 |
1168 |
738 |
1.36 |
200×3 |
1200 |
33×3 |
0.92 |
1070 |
400 |
160 |
900 |
425 |
12 |
14 |
|
BF-DX10 |
1558 |
990 |
1.8 |
200×4 |
1600 |
33×4 |
1.22 |
1370 |
400 |
160 |
1200 |
425 |
12 |
14 |
HIGH EFFICIENCY TWO-SIDES CEILING-TYPE AIR COOLER
The usage
DH series Two-side Air-coolers are used with condensening units of various capacities in different cold room.And the type coolers DH /Z is used in the air-conditioner of 5°C,such as big capacity mall .supermarket, vegetable-storage, work shop.DH /L is used at the temp.of 10°C,such as the storage of fish,meat and other food.
Advantages of our product
①、DH series Two-side Air-coolers boast the characteristics of well-designed,smart appearance,light,easy to be installed,as well as big capacity.
②、the cover of the air-cooler is painted with new art and printed Aluminium panel,has a property of corrosion proof.good-appearance.and long life.
③、the evaporating tube uses the high efficient female screw tube.Expanded by liquid pressure machine,the fin and the tube combined very tight,stable and improved its'capacity.
④、the product used with the outer rotary fan motor,low- noisy,function stable.
DHL SERIAL TECHNICAL DATA
|
Model |
Evaporate zbility |
Area |
air volume |
380V/50Hz outer Rotor fen Data |
220V heater |
|||||
|
At=8°C |
Fanxguantity |
each fan |
Ciol (KW ) |
Driain water (KW ) |
Tator(KW) |
|||||
|
KW |
m² |
m³/h |
ΦmmxN |
r/Min |
W |
A |
||||
|
RT≥5℃ DHZ pin space： 4-4.5mm |
||||||||||
|
BF-DHL-20S |
5750 |
20 |
2290 |
Φ350×1 |
1380 |
140 |
0.38 |
1.32 |
1.32 |
2.64 |
|
BF-DHL-25S |
7187 |
25 |
4800 |
Φ450×1 |
1360 |
250 |
0.6 |
1.4 |
1.4 |
2.8 |
|
BF-DHL-35S |
10062 |
35 |
6800 |
Φ400×2 |
1380 |
180 |
0.47 |
1.8 |
1.8 |
3.6 |
|
BF-DHL-45S |
12937 |
45 |
6800 |
Φ400×2 |
1380 |
180 |
0.47 |
1.8 |
1.8 |
3.6 |
|
BF-DHL-55S |
15812 |
55 |
6800 |
Φ400×2 |
1380 |
180 |
0.47 |
2.4 |
2.4 |
4.8 |
|
BF-DHL-70S |
20125 |
70 |
9600 |
Φ450×2 |
1360 |
250 |
0.6 |
4.8 |
2.4 |
7.2 |
|
BF-DHL-80S |
23000 |
80 |
9600 |
Φ450×2 |
1360 |
250 |
0.6 |
5.4 |
2.7 |
8.1 |
|
BF-DHL-100S |
28750 |
100 |
13140 |
Φ500×2 |
1300 |
450 |
0.9 |
5.15 |
3.15 |
8.3 |
|
BF-DHL-115S |
33062 |
115 |
13140 |
Φ500×2 |
1300 |
450 |
0.9 |
7 |
3.51 |
10.51 |
|
BF-DHL-130S |
37375 |
130 |
17440 |
Φ550×2 |
1300 |
600 |
1.2 |
7 |
3.51 |
10.51 |
|
BF-DHL-140S |
40250 |
140 |
19710 |
Φ500×3 |
1300 |
450 |
0.9 |
7.74 |
3.87 |
11.61 |
|
BF-DHL-160S |
46000 |
160 |
19710 |
Φ500×3 |
1300 |
450 |
0.9 |
7.74 |
3.87 |
11.61 |
|
BF-DHL-180S |
51750 |
180 |
26160 |
Φ550×3 |
1300 |
600 |
1.2 |
8.46 |
4.23 |
12.69 |
|
BF-DHL-200S |
57500 |
200 |
26160 |
Φ550×3 |
1300 |
450 |
0.9 |
8.4 |
5.66 |
14.06 |
DHZ SERIALTECHNICAL DATA
|
Model |
Evaporate zbility |
Area |
air volume |
380V/50Hz outer Rotor fen Data |
220V heater |
|||||
|
At=8°C |
Fanxguantity |
each fan |
Ciol (KW ) |
Driain water (KW ) |
Tator(KW) |
|||||
|
KW |
M2 |
m³/h |
ΦmmxN |
r/Min |
W |
A |
||||
|
RT≥-10°C DHZ pin space： 6mm |
||||||||||
|
BF-DHZ-15S |
2950 |
15 |
2290 |
Φ350×1 |
1380 |
140 |
0.38 |
1.32 |
1.32 |
2.64 |
|
BF-DHZ-20S |
3940 |
20 |
4800 |
Φ450×1 |
1360 |
250 |
0.6 |
1.4 |
1.4 |
2.8 |
|
BF-DHZ-25S |
4925 |
25 |
6800 |
Φ400×2 |
1380 |
180 |
0.47 |
1.8 |
1.8 |
3.6 |
|
BF-DHZ-35S |
6895 |
35 |
6800 |
Φ400×2 |
1380 |
180 |
0.47 |
1.8 |
1.8 |
3.6 |
|
BF-DHZ-40S |
7780 |
40 |
6800 |
Φ400×2 |
1380 |
180 |
0.47 |
2.4 |
2.4 |
4.8 |
|
BF-DHZ-50S |
9850 |
50 |
9600 |
Φ450×2 |
1360 |
250 |
0.6 |
4.8 |
2.4 |
7.2 |
|
BF-DHZ-60S |
11820 |
60 |
9600 |
Φ450×2 |
1360 |
250 |
0.6 |
5.4 |
2.7 |
8.1 |
|
BF-DHZ-80S |
15760 |
80 |
13140 |
Φ500×2 |
1300 |
450 |
0.9 |
5.15 |
3.15 |
8.3 |
|
BF-DHZ-90S |
17730 |
90 |
13140 |
Φ500×2 |
1300 |
450 |
0.9 |
7 |
3.51 |
10.51 |
|
BF-DHZ-100S |
19700 |
100 |
17440 |
Φ550×2 |
1300 |
600 |
1.2 |
7 |
3.51 |
10.51 |
|
BF-DHZ-110S |
21670 |
110 |
19710 |
Φ500×3 |
1300 |
450 |
0.9 |
7.74 |
3.87 |
11.61 |
|
BF-DHZ-120S |
23640 |
120 |
19710 |
Φ500×3 |
1300 |
450 |
0.9 |
7.74 |
3.87 |
11.61 |
|
BF-DHZ-140S |
27580 |
140 |
26160 |
Φ550×3 |
1300 |
600 |
1.2 |
8.46 |
4.23 |
12.69 |
|
BF-DHZ-150S |
29550 |
150 |
26160 |
Φ550×3 |
1300 |
450 |
0.9 |
8.4 |
5.66 |
14.06 |
CEILING BILATERAL COOLED AIR COOLER SERIES SPECIFICATIONS
|
Model △t=8℃ RT≥5℃ |
Model △t=8℃ RT≥-10℃ |
dimensions |
connection |
|||||||||
|
A |
B |
C |
D |
E |
E1 |
E2 |
E3 |
F |
inlet |
outlet |
||
|
mm |
Φmm |
|||||||||||
|
BF-DHL-20S |
BF-DHZ-15S |
860 |
860 |
280 |
915 |
620 |
|
|
|
120 |
12 |
19 |
|
BF-DHL-25S |
BF-DHZ-20S |
920 |
960 |
280 |
1015 |
680 |
|
|
|
12 |
19 |
|
|
BF-DHL-35S |
BF-DHZ-25S |
1210 |
960 |
280 |
1015 |
960 |
|
|
|
12 |
19 |
|
|
BF-DHL-45S |
BF-DHZ-35S |
1210 |
960 |
320 |
1015 |
960 |
|
|
|
16 |
22 |
|
|
BF-DHL-55S |
BF-DHZ-40S |
1470 |
960 |
320 |
1015 |
1220 |
|
|
|
16 |
22 |
|
|
BF-DHL-70S |
BF-DHZ-50S |
1470 |
960 |
380 |
1015 |
1220 |
610 |
|
|
16 |
28 |
|
|
BF-DHL-80S |
BF-DHZ-60S |
1650 |
960 |
380 |
1015 |
1380 |
690 |
|
|
16 |
28 |
|
|
BF-DHL-100S |
BF-DHZ-80S |
1910 |
1060 |
430 |
1115 |
1630 |
815 |
|
|
19 |
32 |
|
|
BF-DHL-115S |
BF-DHZ-90S |
2110 |
1060 |
430 |
1115 |
1830 |
915 |
|
|
19 |
32 |
|
|
BF-DHL-130S |
3F-DHZ-100S |
2110 |
1160 |
480 |
1215 |
1830 |
915 |
|
|
22 |
35 |
|
|
BF-DHL-140S |
BF-DHZ-110S |
2310 |
1060 |
480 |
1115 |
2030 |
676 |
676 |
|
22 |
35 |
|
|
BF-DHL-160S |
BF-DHZ-120S |
2310 |
1060 |
530 |
1115 |
2030 |
676 |
676 |
|
22 |
35 |
|
|
BF-DHL-180S |
BF-DHZ-140S |
2510 |
1160 |
530 |
1215 |
2230 |
740 |
740 |
|
22 |
35 |
|
|
BF-DHL-200S |
BF-DHZ-150S |
2510 |
1160 |
580 |
1215 |
2230 |
740 |
740 |
|
22 |
35 |
|
Zhejiang Beifeng Refrigeration Equipment Co., Ltd is a famous China High-Efficient Ceiling Type Side Air Cooler Factory and High-Efficient Ceiling Type Side Air Cooler Company,and the products are exported to the Europe，South East Asia，Middle East，North America，Africa etc.
If you have any questions or need help, please contact us directly, we will provide you with online help and services in time.
