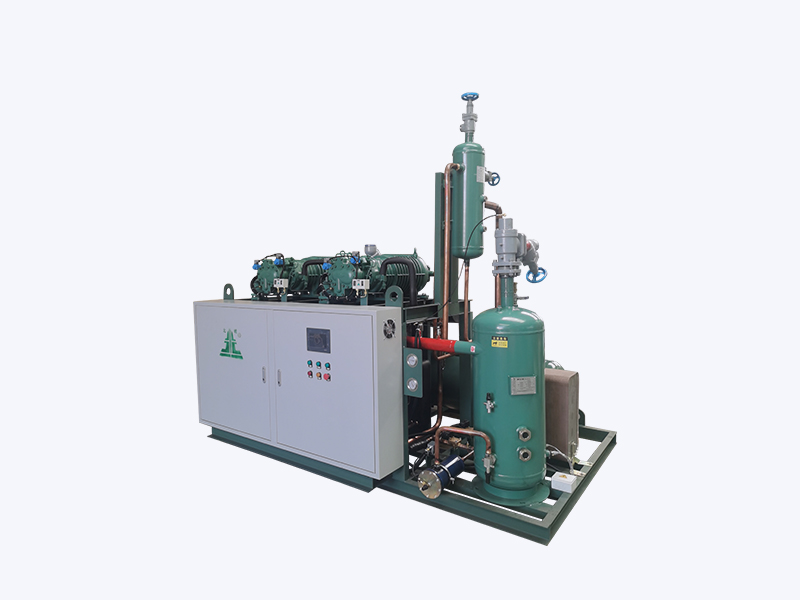

Main Features
♦ Including high-temp, medium-temp, low-temp series, suitable for evaporative temp ranging from 10℃ ～-40℃.
♦ Single-type and paralleled-type condensing unit are suitable for multiple refrigeration system.
♦ Optional semi-hermetic screw compressor include HANBELL TAIWAN,BITZER GERMANY ,FUSHENG TAIWAN, feature in high-efficiency, long-durability, low-noise, less-vibration.
♦ Multi-level energy adjustment according to differentiated refrigeration burden, energy-saving is possible.
♦ Excellent configuration, major refrigeration and electronic components are all big brand, reliable and high performance can be assured.
♦ Smart electronic control system, automatically controlled by micro-computer, accumulating running time.
♦ Electronic system provide kinds of protection, such as phase-lacking,overheating,overloading,over-low-voltage and so on .
♦ Medium and low temp unit installed economizer,raising efficiency and lowering the cost.
♦ Compact and smart structure design, less space will be occupied in working area, convenient installation and operation.
♦ Optional refrigerants are R22 and R404A, compressors in a paralleled unit no more than 7 purchase.
Screw unit model configurction instruction

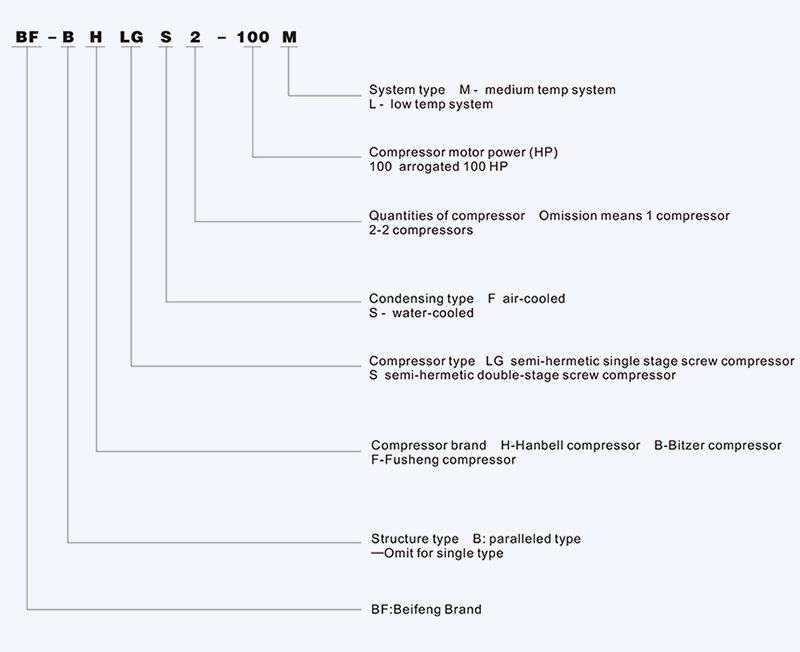

UNIT MODEL INSTRUCTION
Medium temperature single Screw unit refrigeration capacity
R22 Watt(50Hz 380v)
|
Model |
Condensing temperature(℃) |
↓ |
Capacity Qo(kw) Power Consumption Pe(kw) | ||||||
| Evaporating temperature(℃) | |||||||||
| 0 | -10 | -20 | -30 | -35 | -40 | -45 | |||
|
BF-HLGF -40M |
40 |
Qo |
106 |
71.6 |
56.6 |
36.8 |
|
|
|
|
Pe |
30.2 |
27.7 |
27.7 |
25.8 |
|
|
|
||
|
BF-HLGF -40M |
45 |
Qo |
98.7 |
66.2 |
53.5 |
34.5 |
|
|
|
|
Pe |
32.9 |
30.2 |
30.6 |
27.7 |
|
|
|
||
|
BF-HLGS -50M |
40 |
Qo |
139.2 |
94.1 |
74.7 |
48.4 |
|
|
|
|
Pe |
37.8 |
34.7 |
34.4 |
32 |
|
|
|
||
|
BF-HLGF -50M |
45 |
Qo |
129.7 |
89.9 |
70.4 |
45.3 |
|
|
|
|
Pe |
41.2 |
37.8 |
38 |
35.4 |
|
|
|
||
|
BF-HLGS -60M |
40 |
Qo |
151.6 |
105 |
79.8 |
51.9 |
|
|
|
|
Pe |
41.5 |
38 |
38.1 |
35.5 |
|
|
|
||
|
BF-HLGF -60M |
45 |
Qo |
141.2 |
94.7 |
75.5 |
48.7 |
|
|
|
|
Pe |
45.2 |
41.5 |
42.1 |
38.5 |
|
|
|
||
|
BF-HLGS -70M |
40 |
Qo |
184.8 |
124.9 |
99.4 |
64.4 |
|
|
|
|
Pe |
50.5 |
46.3 |
48.2 |
45 |
|
|
|
||
|
BF-HLGF -70M |
45 |
Qo |
172.1 |
119 |
93.7 |
60.5 |
|
|
|
|
Pe |
55.1 |
50.5 |
53.3 |
48.4 |
|
|
|
||
|
BF-HLGS -80M |
40 |
Qo |
202.8 |
137.1 |
106.9 |
69.5 |
|
|
|
|
Pe |
55 |
50.4 |
49.7 |
46.3 |
|
|
|
||
|
BF-HLGF -80M |
45 |
Qo |
188.9 |
126.7 |
101.1 |
65 |
|
|
|
|
Pe |
60 |
55 |
55 |
51.2 |
|
|
|
||
|
BF-HLGS -90M |
40 |
Qo |
239.2 |
161.7 |
126.5 |
82 |
|
|
|
|
Pe |
61.9 |
56.8 |
57.4 |
53.4 |
|
|
|
||
|
BF-HLGF -90M |
45 |
Qo |
222.8 |
149.6 |
119.2 |
77 |
|
|
|
|
Pe |
67.5 |
62 |
63.4 |
59.1 |
|
|
|
||
|
BF-HLGS -100M |
40 |
Qo |
252.7 |
170.9 |
133.1 |
86.4 |
|
|
|
|
Pe |
65.1 |
59.7 |
61 |
57.1 |
|
|
|
||
|
BF-HLGF -100M |
45 |
Qo |
235.4 |
158.1 |
126 |
81.3 |
|
|
|
|
Pe |
71 |
65.2 |
67.5 |
62.8 |
|
|
|
||
|
BF-HLGS -105M |
40 |
Qo |
276.5 |
186.9 |
148.8 |
96.7 |
|
|
|
|
Pe |
71.7 |
65.8 |
65.8 |
61.4 |
|
|
|
||
|
BF-HLGF -105M |
45 |
Qo |
257.6 |
172.9 |
140.4 |
90.7 |
|
|
|
|
Pe |
78.2 |
71.8 |
72.8 |
67.8 |
|
|
|
||
|
BF-HLGS -110M |
40 |
Qo |
299.3 |
202.3 |
160.3 |
104.1 |
|
|
|
|
Pe |
78.2 |
71.8 |
71.1 |
66.3 |
|
|
|
||
|
BF-HLGF -110M |
45 |
Qo |
278.8 |
187.1 |
151.2 |
97.6 |
|
|
|
|
Pe |
85.3 |
78.3 |
78.6 |
73.2 |
|
|
|
||
|
BF-HLGS -120M |
40 |
Qo |
329.4 |
222.7 |
174.3 |
113.1 |
|
|
|
|
Pe |
87 |
79.8 |
78.7 |
73.3 |
|
|
|
||
|
BF-HLGF -120M |
45 |
Qo |
306.9 |
205.9 |
164.3 |
106.1 |
|
|
|
|
Pe |
94.9 |
87 |
87 |
81 |
|
|
|
||
Re : 1. Evaporating temperature > -20℃ unit without economizerEvaporating temperature≤-20℃ unit with economizer.
2. This is Hanbell compressor, other compressors can be choosed by client demand also (Bitzer、Fusheng)
Medium temperature single Screw unit refrigeration capacity
R404A Watt(50Hz 380v)
|
Model |
Condensing temperature(℃) |
↓ |
Capacity Qo(kw) Power Consumption Pe(kw) | |||||||
| Evaporating temperature(℃) | ||||||||||
| 0 | -10 | -20 | -30 | -35 | -40 | -45 | ||||
|
BF-HLGS -40M |
40 |
Qo |
111.1 |
76.2 |
63.9 |
41.8 |
|
|
|
|
|
Pe |
36.3 |
34 |
35.3 |
31.8 |
|
|
|
|||
|
BF-HLGF -40M |
45 |
Qo |
100.3 |
67.9 |
59.2 |
38 |
|
|
|
|
|
Pe |
39.4 |
36.9 |
39.4 |
34 |
|
|
|
|||
|
BF-HLGS -50M |
40 |
Qo |
144.9 |
99.2 |
83.2 |
54.4 |
|
|
|
|
|
Pe |
46.1 |
43.2 |
44.9 |
41 |
|
|
|
|||
|
BF-HLGF -50M |
45 |
Qo |
130 |
88.3 |
77 |
49.4 |
|
|
|
|
|
Pe |
50.1 |
46.9 |
50.1 |
43.6 |
|
|
|
|||
|
BF-HLGS -60M |
40 |
Qo |
160.2 |
109.6 |
91.9 |
60.1 |
|
|
|
|
|
Pe |
51.6 |
48.4 |
50.2 |
46 |
|
|
|
|||
|
BF-HLGF -60M |
45 |
Qo |
144.3 |
97.6 |
85.1 |
54.6 |
|
|
|
|
|
Pe |
56.1 |
52.5 |
56.1 |
48.6 |
|
|
|
|||
|
BF-HLGS -70M |
40 |
Qo |
192.9 |
132.1 |
110.8 |
72.4 |
|
|
|
|
|
Pe |
63.5 |
56.6 |
58.7 |
53.7 |
|
|
|
|||
|
BF-HLGF -70M |
45 |
Qo |
173.9 |
117.6 |
102.5 |
65.8 |
|
|
|
|
|
Pe |
65.5 |
61.4 |
65.6 |
57.5 |
|
|
|
|||
|
BF-HLGS -80M |
40 |
Qo |
216.2 |
148 |
124.1 |
81.2 |
|
|
|
|
|
Pe |
67.8 |
63.6 |
66 |
60.4 |
|
|
|
|||
|
BF-HLGF -80M |
45 |
Qo |
194.9 |
131.8 |
114.9 |
73.8 |
|
|
|
|
|
Pe |
73.7 |
69 |
73.8 |
64.5 |
|
|
|
|||
|
BF-HLGS -90M |
40 |
Qo |
249.4 |
170.7 |
143.2 |
93.6 |
|
|
|
|
|
Pe |
77.3 |
72.5 |
75.2 |
68.8 |
|
|
|
|||
|
BF-HLGF -90M |
45 |
Qo |
224.8 |
152 |
132.5 |
85.1 |
|
|
|
|
|
Pe |
83.9 |
78.6 |
84 |
73.9 |
|
|
|
|||
|
BF-HLGS -100M |
40 |
Qo |
263.6 |
180.5 |
151.3 |
98.9 |
|
|
|
|
|
Pe |
81.2 |
76.2 |
79.1 |
72.3 |
|
|
|
|||
|
BF-HLGF -100M |
45 |
Qo |
237.6 |
160.6 |
140.1 |
89.9 |
|
|
|
|
|
Pe |
88.2 |
82.7 |
88.4 |
77.8 |
|
|
|
|||
|
BF-HLGS -105M |
40 |
Qo |
288.5 |
197.6 |
165.6 |
108.3 |
|
|
|
|
|
Pe |
88 |
82.5 |
85.6 |
98.4 |
|
|
|
|||
|
BF-HLGF -105M |
45 |
Qo |
260 |
175.8 |
153.3 |
95.6 |
|
|
|
|
|
Pe |
95.5 |
89.5 |
95.7 |
84.6 |
|
|
|
|||
|
BF-HLGS -110M |
40 |
Qo |
317.9 |
217.7 |
182.5 |
119.3 |
|
|
|
|
|
Pe |
95.3 |
89.3 |
92.7 |
84.8 |
|
|
|
|||
|
BF-HLGF -110M |
45 |
Qo |
286.5 |
193.7 |
168.9 |
108. |
|
|
|
|
|
Pe |
103.5 |
96.9 |
103.6 |
92.3 |
|
|
|
|||
|
BF-HLGS -120M |
40 |
Qo |
343 |
234.8 |
196.9 |
128.8 |
|
|
|
|
|
Pe |
106.4 |
99.8 |
103.6 |
94.8 |
|
|
|
|||
|
BF-HLGF -120M |
45 |
Qo |
309.2 |
209.1 |
182.3 |
117 |
|
|
|
|
|
Pe |
115.6 |
108.3 |
115.8 |
101.7 |
|
|
|
|||
Re :1. Evaporating temperature > -20℃ unit without economizerEvaporating temperature≤-20℃ unit with economizer.
2. This is Hanbell compressor, other compressors can be choosed by client demand also (Bitzer、Fusheng)
Low temperature single Screw unit refrigeration capacity
R22 Watt(50Hz 380v)
|
Model |
Condensing temperature(℃) |
↓ |
Capacity Qo(kw) Power Consumption Pe(kw) | ||||||
| Evaporating temperature(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BLGS -50L |
40 |
Qo |
89.3 |
75.8 |
63.6 |
52.5 |
42.3 |
33.3 |
25.5 |
|
Pe |
38.2 |
36.7 |
35.3 |
34 |
32.8 |
31.5 |
30.2 |
||
|
BF-BLGS -50L |
40 |
Qo |
86.7 |
73.4 |
61.4 |
50.6 |
40.5 |
31.7 |
24 |
|
Pe |
41.8 |
40.3 |
38.9 |
37.6 |
36.3 |
34.9 |
33.4 |
||
|
BF-BLGS -60L |
40 |
Qo |
110.8 |
93.3 |
77.6 |
63.7 |
50.7 |
39.5 |
29.8 |
|
Pe |
46.6 |
44.8 |
43.2 |
41.7 |
40.3 |
39 |
37.8 |
||
|
BF-BLGF -60L |
45 |
Qo |
106.9 |
90 |
74.6 |
61 |
48.4 |
37.4 |
27.9 |
|
Pe |
51.3 |
49.7 |
48.1 |
46.6 |
45 |
43.5 |
42 |
||
|
BF-BLGS -70L |
40 |
Qo |
123.7 |
104.7 |
88.5 |
72.3 |
58.1 |
45.8 |
35.1 |
|
Pe |
51.1 |
49.3 |
47.7 |
46.2 |
44.7 |
43.1 |
41.5 |
||
|
BF-BLGF -70L |
45 |
Qo |
120 |
101.4 |
84.6 |
69.6 |
55.7 |
43.5 |
33 |
|
Pe |
56 |
54.3 |
52.7 |
51 |
49.3 |
47.5 |
45.6 |
||
|
BF-BLGS -75L |
40 |
Qo |
133.1 |
112.9 |
99.2 |
78.3 |
63.1 |
49.8 |
38.3 |
|
Pe |
55.5 |
53.3 |
51.2 |
49.4 |
47.6 |
45.9 |
44.1 |
||
|
BF-BLGF -75L |
45 |
Qo |
128.9 |
109.1 |
91.3 |
75.3 |
60.4 |
47.4 |
36.1 |
|
Pe |
60.6 |
58.4 |
56.4 |
54.5 |
52.7 |
50.8 |
48.8 |
||
|
BF-BLGS -125L |
40 |
Qo |
224 |
189.6 |
159.1 |
132.6 |
107.2 |
85.1 |
66.1 |
|
Pe |
89.8 |
85.8 |
82 |
78.3 |
74.6 |
70.9 |
66.9 |
||
|
BF-BLGF -125L |
45 |
Qo |
216.3 |
183.2 |
153.3 |
127.5 |
102.4 |
80.6 |
61.7 |
|
Pe |
98.6 |
94.5 |
90.5 |
86.5 |
82.3 |
77.8 |
72.9 |
||
Re : 1. Capacity based on suction temperature overheat 10k with economizer.
2. This is Hanbell compressor, other compressors can be choosed by client demand also (Bitzer、Fusheng)
Low temperature single Screw unit refrigeration capacity
R404A Watt(50Hz 380v)
|
Model |
Condensing temperature(℃) |
↓ |
Capacity Qo(kw) Power Consumption Pe(kw) | ||||||
| Evaporating temperature(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BLGS -50L |
40 |
Qo |
95.2 |
81.4 |
68.5 |
57.2 |
46.7 |
37.5 |
29.5 |
|
Pe |
46.1 |
44.4 |
42.6 |
40.8 |
39 |
37.5 |
35.4 |
||
|
BF-BLGS -50L |
45 |
Qo |
90.7 |
77.3 |
65.3 |
54.5 |
44.5 |
35.6 |
27.9 |
|
Pe |
51.1 |
49.2 |
47.3 |
45.3 |
43.4 |
41.5 |
39.8 |
||
|
BF-BLGS -60L |
40 |
Qo |
117.5 |
99.4 |
83.3 |
69 |
55.7 |
44.2 |
34.2 |
|
Pe |
54.1 |
52.4 |
51.1 |
50 |
48.9 |
47.6 |
46.1 |
||
|
BF-BLGF -60L |
45 |
Qo |
110.8 |
93.8 |
78.7 |
65.2 |
52.7 |
41.7 |
32.2 |
|
Pe |
60 |
58.4 |
57.1 |
55.9 |
54.7 |
53.4 |
51.9 |
||
|
BF-BLGS -70L |
40 |
Qo |
132.7 |
112.5 |
94.8 |
78.7 |
63.9 |
51 |
39.9 |
|
Pe |
58.8 |
57 |
55.2 |
53.4 |
51.5 |
49.6 |
47.7 |
||
|
BF-BLGF -70L |
45 |
Qo |
126.1 |
107 |
90 |
74.8 |
60.7 |
48.4 |
37.8 |
|
Pe |
65 |
63.2 |
61.4 |
59.5 |
57.6 |
55.6 |
53.4 |
||
|
BF-BLGS -75L |
40 |
Qo |
141.7 |
117.9 |
99.4 |
82.9 |
67.7 |
54.5 |
43 |
|
Pe |
64.9 |
66.3 |
60.7 |
58.1 |
55.5 |
53 |
50.7 |
||
|
BF-BLGF -75L |
45 |
Qo |
131.2 |
110.4 |
94.1 |
78.5 |
64.1 |
51.5 |
40.5 |
|
Pe |
72.6 |
69.8 |
67 |
64.2 |
61.5 |
59.1 |
56.8 |
||
|
BF-BLGS -125L |
40 |
Qo |
228.9 |
192.2 |
163.4 |
137.7 |
112.3 |
90.3 |
71.2 |
|
Pe |
107 |
101.1 |
96 |
91.5 |
87.5 |
83.9 |
80.7 |
||
|
BF-BLGF -125L |
45 |
Qo |
215.3 |
182.7 |
153.5 |
129.2 |
104.9 |
83.7 |
65.2 |
|
Pe |
116.3 |
110.3 |
105.1 |
100.5 |
96.2 |
92.2 |
88.2 |
||
Re : 1. Capacity based on suction temperature overheat 10k with economizer.
2. This is Hanbell compressor, other compressors can be choosed by client demand also (Bitzer、Fusheng)
Medium temperature paralleled Screw unit refrigeration capacity
R22 Watt(50Hz 380v)
|
Model |
Condensing temperature(℃) |
↓ |
Capacity Qo(kw) Power Consumption Pe(kw) | ||||||
| Evaporating temperature(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BHLGS2 -100M |
40 |
Qo |
212 |
143.2 |
113.2 |
73.6 |
|
|
|
|
Pe |
60.4 |
55.4 |
55.4 |
51.6 |
|
|
|
||
|
BF-BHLGS2 -80M |
40 |
Qo |
197.4 |
132.4 |
107 |
69 |
|
|
|
|
Pe |
65.8 |
60.4 |
61.2 |
55.4 |
|
|
|
||
|
BF-BHLGS2 -100M |
40 |
Qo |
278.4 |
188.2 |
149.4 |
96.8 |
|
|
|
|
Pe |
75.6 |
69.4 |
69.8 |
64 |
|
|
|
||
|
BF-BHLGF2 -100M |
45 |
Qo |
259.4 |
179.8 |
140.8 |
90.6 |
|
|
|
|
Pe |
82.4 |
77.6 |
76 |
70.8 |
|
|
|
||
|
BF-BHLGS2 -120M |
40 |
Qo |
303.2 |
204.8 |
163 |
103.4 |
|
|
|
|
Pe |
83 |
76 |
77.8 |
72.8 |
|
|
|
||
|
BF-BHLGF2 -120M |
45 |
Qo |
282.4 |
189.4 |
156.6 |
98.6 |
|
|
|
|
Pe |
90.4 |
83 |
86.4 |
80.6 |
|
|
|
||
|
BF-BHLGS3 -150M |
40 |
Qo |
417.6 |
282.3 |
224.1 |
145.2 |
|
|
|
|
Pe |
113.4 |
104.1 |
103.2 |
96 |
|
|
|
||
|
BF-BHLGF3 -150M |
45 |
Qo |
389.1 |
269.7 |
211.2 |
135.9 |
|
|
|
|
Pe |
123.6 |
113.4 |
114 |
106.2 |
|
|
|
||
|
BF-BHLGS2 -160M |
40 |
Qo |
405.6 |
274.2 |
218.2 |
138.4 |
|
|
|
|
Pe |
110 |
100.8 |
103.2 |
96.4 |
|
|
|
||
|
BF-BHLGF2 -160M |
45 |
Qo |
377.8 |
253.4 |
209.4 |
132 |
|
|
|
|
Pe |
120 |
110 |
114.4 |
107 |
|
|
|
||
|
BF-BHLGS3 -180M |
40 |
Qo |
454.8 |
315 |
239.4 |
155.7 |
|
|
|
|
Pe |
124.5 |
114 |
114.30 |
106.5 |
|
|
|
||
|
BF-BHLGF3 -180M |
45 |
Qo |
423.6 |
284.1 |
226.5 |
146.1 |
|
|
|
|
Pe |
135.6 |
124.5 |
126.2 |
115.5 |
|
|
|
||
|
BF-BHLGS2 -200M |
40 |
Qo |
505.4 |
341.8 |
272 |
172.8 |
|
|
|
|
Pe |
130.2 |
119.4 |
122.2 |
114.2 |
|
|
|
||
|
BF-BHLGF2 -200M |
45 |
Qo |
470.8 |
316.2 |
261.2 |
165 |
|
|
|
|
Pe |
142 |
130.4 |
135.6 |
126.6 |
|
|
|
||
|
BF-BHLGS3 -240M |
40 |
Qo |
608.4 |
411.3 |
327.3 |
207.6 |
|
|
|
|
Pe |
165 |
151.2 |
154.8 |
144.6 |
|
|
|
||
|
BF-BHLGF3 -240M |
45 |
Qo |
566.7 |
380.1 |
314.1 |
198 |
|
|
|
|
Pe |
180 |
165 |
171.6 |
160.5 |
|
|
|
||
|
BF-BHLGS3 -270M |
40 |
Qo |
717.6 |
485.1 |
386.1 |
245.1 |
|
|
|
|
Pe |
185.7 |
170.4 |
174.3 |
162.9 |
|
|
|
||
|
BF-BHLGF3 -270M |
45 |
Qo |
668.4 |
448.8 |
370.8 |
234.3 |
|
|
|
|
Pe |
202.5 |
186 |
193.5 |
180.6 |
|
|
|
||
|
BF-BHLGS4 -440M |
40 |
Qo |
1197.2 |
809.2 |
644.4 |
408.8 |
|
|
|
|
Pe |
312.8 |
287.2 |
293.6 |
274.4 |
|
|
|
||
|
BF-BHLGF4 -440M |
45 |
Qo |
1115.2 |
748.4 |
618.4 |
390.4 |
|
|
|
|
Pe |
341.2 |
313.2 |
325.6 |
304 |
|
|
|
||
Re : 1、Evaporating temperature > -20℃ unit without economizerEvaporating temperature≤ -20℃ unit with economizer, paralleled unit without frozen oil.
2、This is Hanbell compressor, other compressors can be choosed by client demand also (Bitzer、Fusheng)
Medium temperature paralleled Screw unit refrigeration capacity
R404A Watt(50Hz 380v)
|
Model |
Condensing temperature(℃) |
↓ |
Capacity Qo(kw) Power Consumption Pe(kw) | ||||||
| Evaporating temperature(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BHLGF2 -80M |
45 |
Qo |
222.2 |
152.4 |
127.8 |
125.4 |
|
|
|
|
Pe |
72.6 |
68.00 |
70.60 |
63.6. |
|
|
|
||
|
BF-BHLGF2 -80M |
45 |
Qo |
200.6 |
115.8 |
118.4 |
76 |
|
|
|
|
Pe |
78.8 |
73.8 |
78.80 |
68.00 |
|
|
|
||
|
BF-BHLGS2 -100M |
40 |
Qo |
289.8 |
198.4 |
166.4 |
108.8 |
|
|
|
|
Pe |
92.2 |
86.4 |
89.8 |
82.00 |
|
|
|
||
|
BF-BHLGF2 -100M |
45 |
Qo |
260 |
176.6 |
154 |
98.8 |
|
|
|
|
Pe |
100.2 |
93.8 |
100.2 |
87.2 |
|
|
|
||
|
BF-BHLGS2 -120M |
40 |
Qo |
292.6 |
196.2 |
179 |
116.4 |
|
|
|
|
Pe |
96.4 |
90 |
99 |
89 |
|
|
|
||
|
BF-BHLGF2 -120M |
45 |
Qo |
262.2 |
170.8 |
166.2 |
103.4 |
|
|
|
|
Pe |
108.6 |
100.4 |
112.8 |
96.4 |
|
|
|
||
|
BF-BHLGS3 -150M |
40 |
Qo |
434.7 |
297.6 |
249.6 |
163.2 |
|
|
|
|
Pe |
138.3 |
129.60 |
134.7 |
123 |
|
|
|
||
|
BF-BHLGF3 -150M |
45 |
Qo |
390 |
264.9 |
231 |
148.2 |
|
|
|
|
Pe |
10.3 |
140.7 |
150.3 |
130.8 |
|
|
|
||
|
BF-BHLGS2 -160M |
40 |
Qo |
395 |
265 |
241.8 |
157 |
|
|
|
|
Pe |
126.8 |
118.2 |
130 |
120 |
|
|
|
||
|
BF-BHLGF2 -160M |
45 |
Qo |
354.2 |
230.8 |
224.4 |
143.2 |
|
|
|
|
Pe |
142.8 |
132 |
148.2 |
128 |
|
|
|
||
|
BF-BHLGS3 -180M |
40 |
Qo |
480.6 |
328.8 |
275.5 |
180.3 |
|
|
|
|
Pe |
153.9 |
145.2 |
150.6 |
138.0 |
|
|
|
||
|
BF-BHLGF3 -180M |
45 |
Qo |
432.9 |
292.8 |
255.3 |
163.8 |
|
|
|
|
Pe |
168.3 |
157.5 |
168.3 |
145.8 |
|
|
|
||
|
BF-BHLGS2 -200M |
40 |
Qo |
481.6 |
323 |
294.8 |
191.4 |
|
|
|
|
Pe |
151.8 |
141.4 |
155.6 |
143.6 |
|
|
|
||
|
BF-BHLGF2 -200M |
45 |
Qo |
431.8 |
285.8 |
273.6 |
174.6 |
|
|
|
|
Pe |
171 |
158 |
177.6 |
154.4 |
|
|
|
||
|
BF-BHLGS3 -240M |
40 |
Qo |
592.5 |
397.5 |
362.7 |
235.5 |
|
|
|
|
Pe |
190.2 |
177.3 |
195 |
180 |
|
|
|
||
|
BF-BHLGF3 -240M |
45 |
Qo |
531.3 |
346.2 |
336.6 |
214.8 |
|
|
|
|
Pe |
214.2 |
198 |
222.3 |
192 |
|
|
|
||
|
BF-BHLGS3 -270M |
40 |
Qo |
683.4 |
458.4 |
418.2 |
271.8 |
|
|
|
|
Pe |
216.6 |
201.9 |
222 |
204.9 |
|
|
|
||
|
BF-BHLGF3 -270M |
45 |
Qo |
612.6 |
405.6 |
388.2 |
247.8 |
|
|
|
|
Pe |
243.9 |
225.3 |
253.2 |
219.6 |
|
|
|
||
|
BF-BHLGS4 -440M |
40 |
Qo |
1161.6 |
778.8 |
710.8 |
461.6 |
|
|
|
|
Pe |
363.2 |
338.4 |
372.4 |
343.6 |
|
|
|
||
|
BF-BHLGF4 -440M |
45 |
Qo |
1041.2 |
689.2 |
659.6 |
421.2 |
|
|
|
|
Pe |
409.2 |
378 |
424.8 |
370.4 |
|
|
|
||
Re : 1.Evaporating temperature > -20°C unit without economizerEvaporating temperature≤-20°C unit with economizer, paralleled unit without frozen oil.
2、This is Hanbell compressor, other compressors can be choosed by client demand also (Bitzer、Fusheng)
Low temperature paralleled Screw unit refrigeration capacity
R22 Watt(50Hz 380v)
|
Model |
Condensing temperature(℃) |
↓ |
Capacity Qo(kw) Power Consumption Pe(kw) | |||||||
| Evaporating temperature(℃) | ||||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | ||||
|
BF-BBLGS2 |
40 |
Qo |
247.4 |
209.3 |
177 |
144.6 |
116.2 |
91.6 |
70.2 |
|
|
-140L |
Pe |
102.2 |
98.6 |
95.4 |
92.4 |
89.4 |
86.2 |
83 |
||
|
BF-BBLGF2 |
45 |
Qo |
239.9 |
202.7 |
169.3 |
139.2 |
111.4 |
87 |
66 |
|
|
-140L |
Pe |
112 |
108.6 |
105.4 |
102 |
98.6 |
95 |
91.2 |
||
|
BF-BBLGS2 |
40 |
Qo |
266.4 |
225.8 |
198.3 |
156.6 |
126.2 |
99.6 |
76.6 |
|
|
-150L |
Pe |
111 |
106.8 |
102.4 |
98.8 |
95.2 |
91.8 |
88.2 |
||
|
BF-BBLGF2 |
45 |
Qo |
257.8 |
218.1 |
182.6 |
150.6 |
120.8 |
94.8 |
72.2 |
|
|
-150L |
Pe |
121.2 |
116.8 |
112.8 |
109 |
105.4 |
101.6 |
97.6 |
||
|
BF-BBLGS3 |
40 |
Qo |
399.5 |
338.7 |
297.5 |
234.9 |
189.3 |
149.4 |
114.9 |
|
|
-225L |
Pe |
166.5 |
159.9 |
153.6 |
148.2 |
142.8 |
137.7 |
132.3 |
||
|
BF-BBLGF3 |
45 |
Qo |
386.7 |
327.2 |
273.9 |
225.9 |
181.2 |
142.2 |
108.3 |
|
|
-225L |
Pe |
181.8 |
175.2 |
169.2 |
163.5 |
158.1 |
152.4 |
146.4 |
||
|
BF-BBLGS3 |
40 |
Qo |
672.2 |
568.9 |
477.3 |
397.8 |
321.6 |
255.3 |
198.3 |
|
|
-375L |
Pe |
269.4 |
257.4 |
246 |
234.9 |
223.8 |
212.7 |
200.7 |
||
|
BF-BBLGF3 |
45 |
Qo |
649 |
549.8 |
460 |
382.5 |
307.2 |
241.8 |
185.1 |
|
|
-375L |
Pe |
295.8 |
283.5 |
271.5 |
259.5 |
246.9 |
233.4 |
218.7 |
||
|
BF-BBLGS4 |
40 |
Qo |
532.8 |
451.6 |
396.6 |
313.2 |
252.4 |
199.2 |
153.2 |
|
|
-300L |
Pe |
222 |
213.2 |
204.8 |
197.6 |
190.4 |
183.6 |
176.4 |
||
|
BF-BBLGF4 |
45 |
Qo |
515.6 |
436.2 |
365.2 |
301.2 |
241.6 |
189.6 |
144.4 |
|
|
-300L |
Pe |
242.4 |
233.6 |
225.6 |
218 |
210.8 |
203.2 |
195.2 |
||
|
BF-BBLGS4 |
40 |
Qo |
896.3 |
758.5 |
636.4 |
530.4 |
428.8 |
340.4 |
264.4 |
|
|
-500L |
Pe |
359.2 |
343.2 |
328 |
313.2 |
298.4 |
283.6 |
267.6 |
||
|
BF-BBLGF4 |
45 |
Qo |
865.3 |
733.1 |
613.3 |
510 |
409.6 |
322.4 |
246.8 |
|
|
-500L |
Pe |
394.4 |
378 |
362 |
346 |
329.2 |
311.2 |
291.6 |
||
Re : 1. Capacity based on suction temperature overheat 10k water-cooled unit with economizer when cooling water exist 5k temperature difference between input and output water, paralleled unit without frozen oil.
2. This is Hanbell compressor, other compressors can be choosed by client demand also (Bitzer、Fusheng)
Low temperature paralleled Screw unit refrigeration capacity
R404A Watt(50Hz 380v)
|
Model |
Condensing temperature(℃) |
↓ |
Capacity Qo(kw) Power Consumption Pe(kw) | ||||||
| Evaporating temperature(℃) | |||||||||
| -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
|
BF-BBLGS2 -140L |
40 |
Qo |
265.4 |
225 |
189.6 |
157.4 |
127.8 |
102 |
79.8 |
|
Pe |
117.6 |
114 |
110.4 |
106.8 |
103 |
99.2 |
95.4 |
||
|
BF-BBLGS2 -140L |
45 |
Qo |
252.3 |
214 |
180 |
149.6 |
121.4 |
96.8 |
75.6 |
|
Pe |
130 |
126.6 |
122.8 |
119 |
115.2 |
111.2 |
106.8 |
||
|
BF-BBLGS2 -150L |
40 |
Qo |
283.3 |
235.8 |
198.8 |
165.8 |
135.4 |
109 |
86 |
|
Pe |
129.8 |
126.6 |
121.4 |
116.2 |
111 |
106 |
101.4 |
||
|
BF-BBLGF2 -150L |
45 |
Qo |
262.4 |
220.7 |
188.1 |
157 |
128.2 |
103 |
81 |
|
Pe |
145.2 |
139.6 |
134 |
128.4 |
123 |
118.2 |
113.6 |
||
|
BF-BBLGS3 -225L |
40 |
Qo |
425 |
323.7 |
298.2 |
248.7 |
203.1 |
163.5 |
129 |
|
Pe |
194.7 |
189.9 |
182.1 |
174.3 |
166.5 |
159 |
152.1 |
||
|
BF-BBLGF3 -225L |
45 |
Qo |
393.6 |
331 |
282.2 |
235.5 |
192.3 |
154.5 |
121.5 |
|
Pe |
217.8 |
209.4 |
201 |
192.6 |
184.5 |
177.3 |
170.4 |
||
|
BF-BBLGS3 -375L |
40 |
Qo |
686.8 |
576.7 |
490.3 |
413.1 |
336.9 |
270.9 |
213.6 |
|
Pe |
321 |
303.3 |
288 |
274.5 |
262.5 |
251.7 |
242.1 |
||
|
BF-BBLGF3 -375L |
45 |
Qo |
646 |
548 |
460.4 |
387.6 |
314.7 |
251.1 |
195.6 |
|
Pe |
348.9 |
330.9 |
315.3 |
301.5 |
288.6 |
276.6 |
264.6 |
||
|
BF-BBLGS4 -300L |
40 |
Qo |
566.6 |
471.6 |
397.6 |
331.6 |
270.8 |
218 |
172 |
|
Pe |
259.6 |
253.2 |
242.8 |
232.4 |
222 |
212 |
202.8 |
||
|
BF-BBLGF4 -300L |
45 |
Qo |
524.8 |
441.4 |
376.2 |
314 |
256.4 |
206 |
162 |
|
Pe |
290 |
279.2 |
268 |
256.8 |
246 |
236.4 |
227.2 |
||
|
BF-BBLGS4 -500L |
40 |
Qo |
915.7 |
769 |
653.8 |
550.8 |
449.2 |
361.2 |
284.8 |
|
Pe |
428 |
404.4 |
384 |
366 |
350 |
335.6 |
322.8 |
||
|
BF-BBLGF4 -500L |
45 |
Qo |
861.4 |
730.7 |
613.8 |
516.8 |
419.6 |
334.8 |
260.8 |
|
Pe |
465.2 |
441.2 |
420.4 |
402 |
384.8 |
368.8 |
352.8 |
||
Re : 1. Capacity based on suction temperature overheat 10k water-cooled unit with economizer when cooling water exist 5k temperature difference between input and output water, paralleled unit without frozen oil.
2. This is Hanbell compressor, other compressors can be choosed by client demand also (Bitzer、Fusheng)

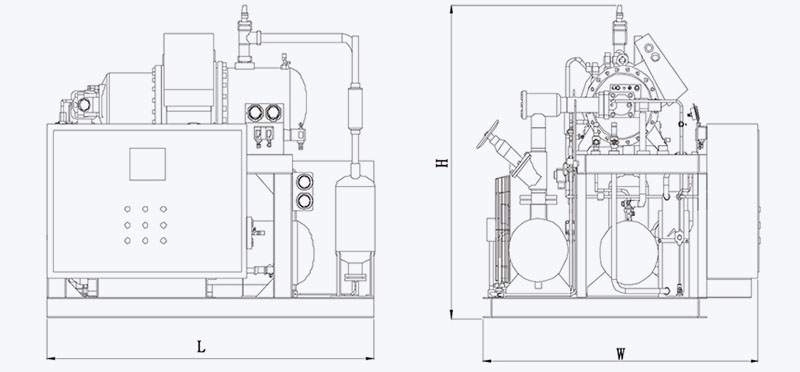

Single condensing unit overall drawing
Table of dimensions
|
Unit model |
Unit connector |
Dimension(mm) |
||||
|
Air discharge conn (mm) |
Liquid inlet conn (mm) |
Air suction conn (mm) |
L (mm) |
W (mm) |
H (mm) |
|
|
BF-HLGS-40M BF-HLGF-40M |
Φ42 |
Φ28 |
Φ54 |
1850 |
1300 |
1650 |
|
BF-HLGS-50M BF-HLGF-50M |
Φ42 |
Φ28 |
Φ76 |
1850 |
1300 |
1650 |
|
BF-HLGS-60M BF-HLGF-60M |
Φ42 |
Φ35 |
Φ76 |
2050 |
1300 |
1650 |
|
BF-HLGS-70M BF-HLGF-70M |
Φ54 |
Φ35 |
Φ89 |
2050 |
1300 |
1650 |
|
BF-HLGS-80M BF-HLGF-80M |
Φ54 |
Φ35 |
Φ89 |
2050 |
1300 |
1650 |
|
BF-HLGS-90M BF-HLGF-90M |
Φ54 |
Φ35 |
Φ89 |
2150 |
1600 |
1650 |
|
BF-HLGS-100M BF-HLGF-100M |
Φ54 |
Φ35 |
Φ89 |
2150 |
1600 |
1650 |
|
BF-HLGS-105M BF-HLGF-105M |
Φ76 |
Φ42 |
Φ108 |
2250 |
1650 |
1700 |
|
BF-HLGS-110M BF-HLGF-110M |
Φ76 |
Φ42 |
Φ108 |
2250 |
1650 |
1700 |
|
BF-HLGS-120M BF-HLGF-120M |
Φ76 |
Φ42 |
Φ108 |
2250 |
1650 |
1700 |
|
BF-BLGS-50L BF-BLGF-50L |
Φ42 |
Φ28 |
Φ54 |
1850 |
1550 |
1650 |
|
BF-BLGS-60L BF-BLGF-60L |
Φ54 |
Φ28 |
Φ76 |
1850 |
1550 |
1650 |
|
BF-BLGS-70L BF-BLGF-70L |
Φ54 |
Φ35 |
Φ76 |
1850 |
1550 |
1700 |
|
BF-BLGS-75L BF-BLGF-75L |
Φ54 |
Φ35 |
Φ76 |
2250 |
1600 |
1700 |
|
BF-BLGS-125L BF-BLGF-125L |
Φ76 |
Φ35 |
Φ108 |
2250 |
1600 |
1800 |
Re : The Φ76 of exhaust pipe is steel pipe external diameter

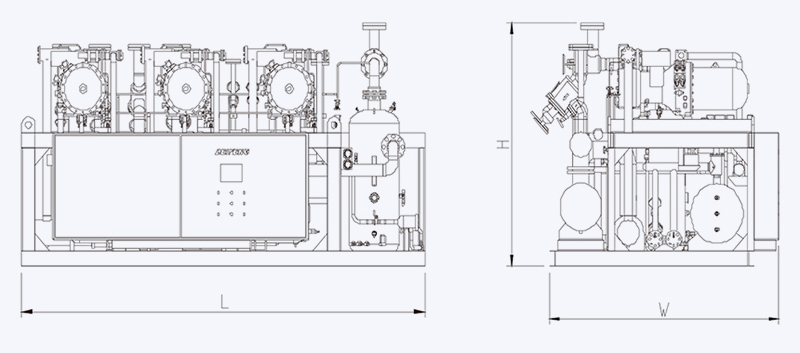

Paralleled condensing unit overall drawing
Table of medium-temp paralleled unit dimensions
|
Unit model |
Unit connector |
Dimension(mm) |
||||
|
Air discharge conn (mm) |
Liquid inlet conn (mm) |
Air suction conn (mm) |
L (mm) |
W (mm) |
H (mm) |
|
|
BF-BHLGS2-80M |
Φ65 |
Φ35 |
Φ89 |
2600 |
1606 |
1670 |
| BF-BHLGF2-80M | ||||||
|
BF-BHLGS2-100M |
Φ65 |
Φ35 |
Φ89 |
2800 |
1886 |
1670 |
| BF-BHLGF2-100M | ||||||
|
BF-BHLGS2-120M |
Φ65 |
Φ42 |
Φ89 |
2800 |
1886 |
1750 |
| BF-BHLGF2-120M | ||||||
|
BF-BHLGS2-160M |
Φ89 |
Φ42 |
Φ108 |
2800 |
1886 |
1800 |
| BF-BHLGF2-160M | ||||||
|
BF-BHLGS2-200M |
Φ89 |
Φ54 |
Φ108 |
2800 |
1886 |
1800 |
| BF-BHLGF2-200M | ||||||
|
BF-BHLGS3-150M |
Φ89 |
Φ42 |
Φ108 |
3325 |
1886 |
1750 |
| BF-BHLGF3-150M | ||||||
|
BF-BHLGS3-180M |
Φ89 |
Φ42 |
Φ108 |
3619 |
1886 |
1750 |
| BF-BHLGF3-180M | ||||||
|
BF-BHLGS3-240M |
Φ89 |
Φ54 |
Φ108 |
4000 |
2500 |
2180 |
| BF-BHLGF3-240M | ||||||
|
BF-BHLGS3-270M |
Φ108 |
Φ54 |
2-Φ108 |
4000 |
2500 |
2280 |
| BF-BHLGF3-270M | ||||||
|
BF-BHLGS4-440M |
Φ133 |
2-Φ42 |
2-Φ133 |
5000 |
2550 |
2280 |
| BF-BHLGF4-440M | ||||||
Table of low-temp paralleled unit dimensions
|
Unit model |
Unit connector |
Dimension(mm) |
||||
|
Air discharge conn (mm) |
Liquid inlet conn (mm) |
Air suction conn (mm) |
L (mm) |
W (mm) |
H (mm) |
|
|
BF-BBLGS2-140L |
Φ76 |
Φ42 |
Φ108 |
2845 |
1976 |
1770 |
|
BF-BBLGF2-140L |
||||||
|
BF-BBLGS2-150L |
Φ76 |
Φ42 |
Φ108 |
2845 |
1976 |
1770 |
|
BF-BBLGF2-150L |
||||||
|
BF-BBLGS3-225L |
Φ89 |
Φ54 |
Φ108 |
3640 |
2226 |
2060 |
|
BF-BBLGF3-225L |
||||||
|
BF-BBLGS3-375L |
Φ108 |
2-Φ42 |
2-Φ108 |
3850 |
2650 |
2300 |
|
BF-BBLGF3-375L |
||||||
|
BF-BBLGS4-300L |
Φ108 |
2-Φ42 |
2-Φ108 |
4350 |
2400 |
2180 |
|
BF-BBLGF4-300L |
||||||
|
BF-BBLGS4-500L |
Φ133 |
2-Φ54 |
2-Φ133 |
4750 |
2650 |
2300 |
|
BF-BBLGF4-500L |
||||||
Re:lnlet and outlet diameter and overall size may vary, the actual size is the final size.
If you have any questions or need help, please contact us directly, we will provide you with online help and services in time.
.jpg?imageView2/2/w/300/h/300/format/jp2/q/75 "Supermarket and C-store Medium Temp/Low Temp Fixed Speed Condensing Unit")
Professional refrigeration equipment manufacturer
Zhejiang Beifeng Refrigeration Equipment Co., Ltd. has 35 years history of manufacturing refrigeration equipment. Currently, it has two processing bases located in Shengzhou, Zhejiang, with a production building of 60,000 square meters. It has set up three sales companies in Shanghai, Beijing, and Guangzhou, with strong technical force, advanced equipment, complete varieties and stable quality. The company has a high-quality inspection center to detect the performance index of refrigeration products and imported vacuum-type helium leak detectors for condensers and evaporators. It has a great influence in the national refrigeration industry and occupies a large market, with distributors in all major cities; It enjoys a high reputation not only in the domestic market, but also in the overseas market, and the products are exported to Europe, Southeast Asia, the Middle East, North America, Africa, etc.
In the refrigeration process, the fair design of the condenser is an important part of improving the energy efficiency r...
In industrial air conditioning refrigeration systems, evaporators, condensers, compressors and throttle valves are four ...
Different condensers according to steam condensation can be divided into surface type (also called partition type) and m...
Air coolers can be used for cooling or condensation, and are widely used in: refining, condensation of petrochemical ove...
In summer, the compressor's exhaust temperature is relatively high and the hand cannot touch it. According to national s...
An air cooler is a heat exchanger that uses air as a cooling medium to cool a warm stream to a desired temperature. Refe...
Copyright © Zhejiang Beifeng Refrigeration Equipment Co.,Ltd.All Rights Reserved. Custom Refrigeration Equipment Manufacturers
English
عربى
简体中文
