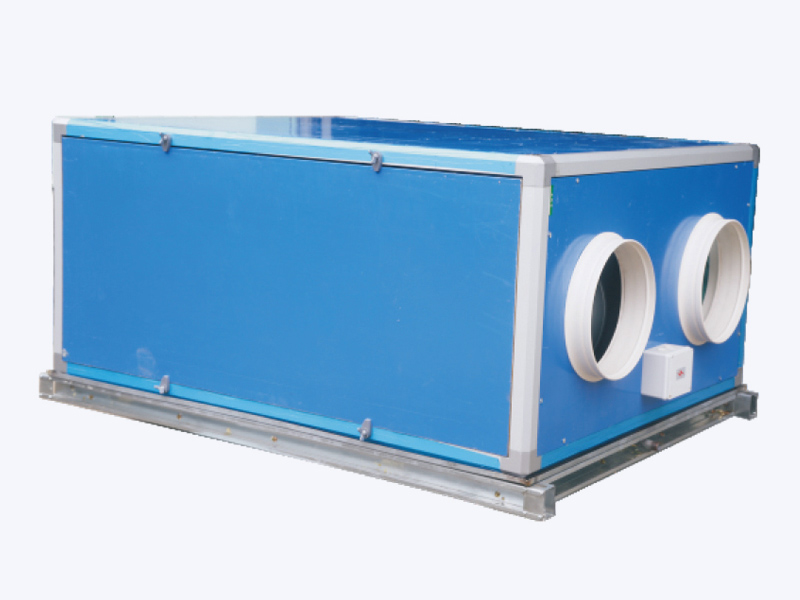

Energy Saving Fresh Air Ventilating Unit（horizontal type）

Products Description Message

The product can be widely used in edible mushroom that requires refrigerated warehouse ventilation, built-in heat exchanger energy recovery efficiency is 60% higher than that in the constant temperature of refrigerated warehouse, greatly reducing the fresh air energy required to achieve high efficiency and energy saving.

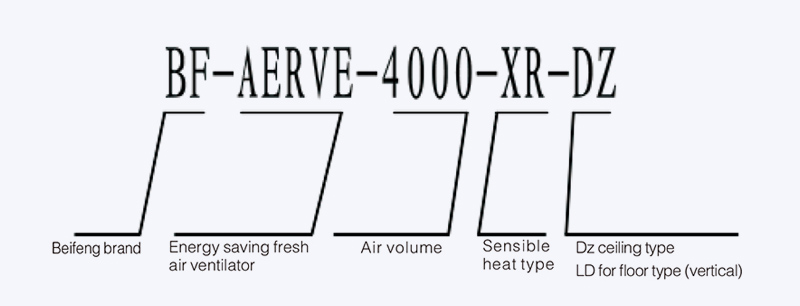

Model marker

Performance parameter

Model	Rated air flow(m³/h)		External hydrostatic pressure(Pa)		Heat recovery rate %		Noise db(A)		Power	Rated current A		Installed power W	Netweight kg
	High	Low	High	Low	High	Low	High	Low		High	Low
BF-AERVE-1000-XR	1000		170		60		63		3N-380V-50HZ	0.86		500	150
BF-AERVE-1500-XR	1500		190		60		65		3N-380V-50HZ	1.05		640	150
BF-AERVE-2000-XR	2000		190		60		68		3N-380V-50HZ	1.1		640	200
BF-AERVE-3000-XR	3000		210		60		69		3N-380V-50HZ	1.67		1100	320
BF-AERVE-4000-XR	4000		250		60		72		3N-380V-50HZ	2.32		1600	395

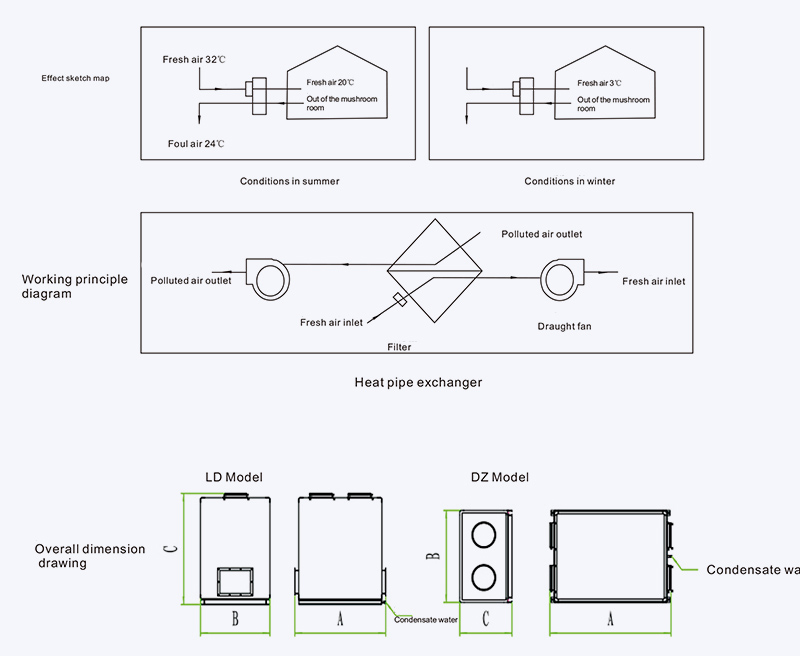

Unit model	Amm	Bmm	Cmm	water outlet pipe
BF-AERVE-1000-XR-LD	1220	588	1218	1/2"
BF-AERVE-1000-XR-DZ	1277	1131	606	1/2"
BF-AERVE-1500-XR-LD	1220	588	1278	1/2"
BF-AERVE-1500-XR-DZ	1277	1131	706	1/2"
BF-AERVE-2000-XR-LD	1220	702	1360	1/2"
BF-AERVE-2000-XR-DZ	1391	1131	706	1/2"
BF-AERVE-3000-XR-LD	1220	816	1360	1/2"
BF-AERVE-3000-XR-DZ	1505	1131	706	1/2"
BF-AERVE-4000-XR-LD	1220	1045	1360	1/2"
BF-AERVE-4000-XR-DZ	1720	1131	706	1/2"

Re: The new energy-saving ventilation unit is low cost and high efficiency equipment, it doesn't need a single set of fresh air handling room, making full use of heat recovery energy saving, greatly reducing the equipment investment and construction cost. At the same time, the cold recovery refrigeration equipment investment and power capacity cost can be reduced by more than 20%. Moreover, according to the needs of users, it can be designed into energy-saving ventilation of fresh airequipment with 5000M3/h.
