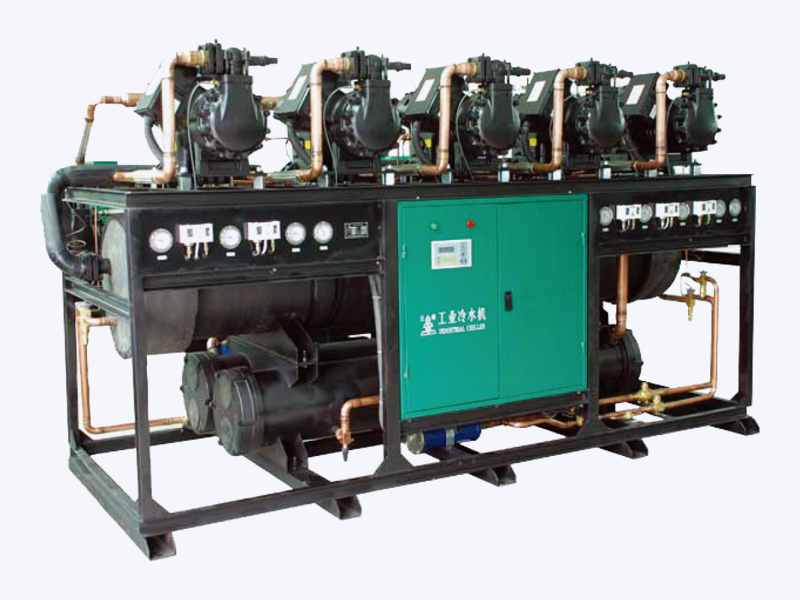

SEMI-HERMETIC INDUSTRIAL CHILLER

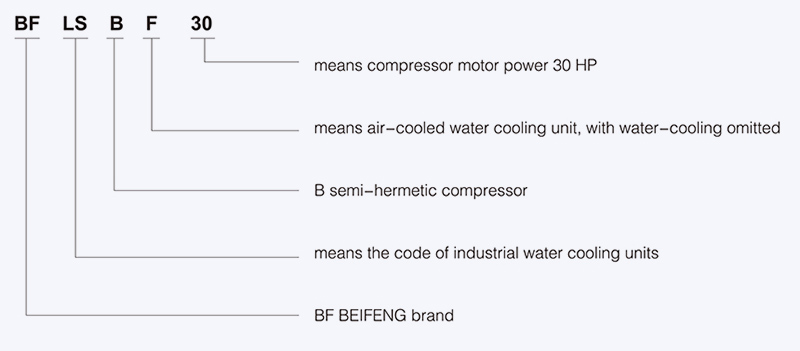

UINHT MODEL INSTRUCTION
AIR-COOLED CHILLER TECHNICAL PARAMETERS
Model Parameter |
BF-LSBF04 |
BF-LSBF05 |
BF-LSBF08 |
BF-LSBF10 |
BF-LSBF15 |
BF-LSBF20 |
BF-LSBF30 |
BF-LSBF35 |
BF-LSBF40 |
BF-LSBF50 |
BF-LSBF60 |
BF-LSBF80 |
|
Refrigerating effect Kw |
10.6 |
15.1 |
19.5 |
28.1 |
41.9 |
42.1 |
61.3 |
80.4 |
92.1 |
108.8 |
122.6 |
184.2 |
|
Total power Kw |
4.51 |
5.53 |
7.71 |
11.49 |
15.76 |
15.59 |
23.26 |
28.64 |
33.45 |
41.99 |
45.44 |
66.9 |
|
Max. running current A |
7.6 |
10.1 |
15 |
17.6 |
24.3 |
37 |
53 |
61 |
78 |
92 |
106 |
156 |
|
Power supply |
3PH/380V/50HZ |
||||||||||||
Refrigerant throttling mode |
Heat expansion valve |
||||||||||||
Refrigerant |
R22 |
||||||||||||
Refrigerating circuit |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
|
Compressors
|
Style |
Semi-closed piston type |
|||||||||||
Model |
BFBZ4 15H |
BFBZ5 18H |
BFBZ8 27H |
BFBZ10 36H |
BFBZ15 54H |
BFBV20 56H |
BFBV30 84. 5H |
BFBW35 110. 5H |
BFBW40 126. 8H |
BFBW50 151.6H |
BFBV30 84. 5H |
BFBW40 126. 8H |
|
Power Kw |
4.15 |
5.03 |
6.81 |
10.29 |
14.2 |
14.03 |
20.92 |
26.24 |
31.05 |
38.39 |
41.84 |
62.1 |
|
Quantity |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
|
Condenser
|
Form |
Copper-tube aluminum-fin type |
|||||||||||
Model |
BF- NCH/0500 |
BF- NCH/0500 |
BF- NCH/1000 |
BF- NCH/1000 |
BF- NCH/1500 |
BF- NCH/2000 |
BF- NCH/3000 |
BF- NCH/4000 |
BF- NCH/4000 |
BF- NCH/5000 |
BF- HVDK500 |
BF- HVDK750N |
|
Fan Power Kw |
0.36 |
0.36 |
0.90 |
0.9 |
1.2 |
1.56 |
2.5 |
2.40 |
2.40 |
3.12 |
2.22 |
2.96 |
|
Fan Delivery m³/h |
6300 |
6300 |
12600 |
12600 |
16660 |
21000 |
31500 |
33320 |
33320 |
47000 |
45000 |
60000 |
|
Evaporator |
Form |
High-efficiency shell and tube type heat exchanger |
|||||||||||
Secondary Refrigerant |
Water, glycol |
||||||||||||
Inlet Temperature ℃ |
+ 12 |
||||||||||||
Outlet Temperature ℃ |
+ 7 |
||||||||||||
Rate of Flow m³/h |
2.4 |
3.0 |
3.6 |
5.4 |
8.1 |
8.5 |
12.1 |
15.1 |
18.1 |
21.2 |
24.2 |
36.2 |
|
Specification of connecting pipe |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2" |
2" |
2-1/2" |
2-1/2" |
2-1/2" |
3" |
3" |
|
Running control mode |
Fully automatic |
||||||||||||
Safety protection device |
The assembly unit has overload protection, the compressor has overheat protection. High and low pressure, oil pressure protection; open-phase protection; ultralow water temperature protection; flow rate protection. |
Remarks:
The working conditions of assembly unit under nominal refrigerating effect and power: condensing temperature 50℃, inlet water temperature +12℃, outlet water temperature +7℃
WATER-COOLED CHILLER TECHNICAL PARAMETERS
Model Parameter |
BF-LSB04 |
BF-LSB05 |
BF-LSB08 |
BF-LSB10 |
BF-LSB15 |
BF-LSB20 |
BF-LSB30 |
BF-LSB35 |
BF-LSB40 |
BF-LSB50 |
BF-LSB60 |
BF-LSB100 |
|
Refrigerating effect Kw |
11.2 |
15 |
21.6 |
29.3 |
43.2 |
47.9 |
69.5 |
89.8 |
102.8 |
122.8 |
139 |
245.6 |
|
Total power Kw |
3.58 |
4.48 |
6.07 |
9.11 |
12.11 |
12.34 |
18.16 |
22.82 |
26.99 |
33.18 |
36.32 |
66.36 |
|
Max. running current A |
7.6 |
10.1 |
15 |
17.6 |
24.3 |
37 |
53 |
61 |
78 |
92 |
106 |
184 |
|
Power supply |
3PH/380V/50HZ |
||||||||||||
Refrigerant throttling mode |
Heat expansion valve |
||||||||||||
Refrigerant |
R22 |
||||||||||||
Refrigerating circuit |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
|
Compressors |
Style |
Semi-closed piston type |
|||||||||||
Model |
BFBZ4 15H |
BFBZ5 18H |
BFBZ8 27H |
BFBZ10 36H |
BFBZ15 54H |
BFBV20 56H |
BFBV30 84.5H |
BFBW35 110.5H |
BFBW40 126.8H |
BFBW50 151.6H |
BFBV30 84.5H |
BFBW50 151.6H |
|
Quantity |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
|
Form |
High-efficiency shell and tube type heat exchanger | ||||||||||||
Condenser
|
Inlet water temperature ℃ |
30 |
|||||||||||
Outlet water temperature ℃ |
|
|
|
|
|
3 |
5 |
|
|
|
|
|
|
Flow rate of cooling water m³/h |
3 |
3.8 |
5.4 |
7.2 |
10.8 |
12.1 |
17.1 |
22.3 |
25.6 |
30.2 |
34.2 |
60.4 |
|
Specification of connecting pipe |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2" |
2" |
2-1/2" |
2-1/2" |
2-1/2" |
2-1/2" |
3" |
4" |
|
Evaporator
|
Form |
High-efficiency shell and tube type heat exchanger |
|||||||||||
Secondary Refrigerant |
Water, glycol |
||||||||||||
Inlet Temperature ℃ |
+ 12 |
||||||||||||
Outlet Temperature℃ |
+ 7 |
||||||||||||
Rate of Flow m³/h |
2.4 |
3.0 |
4.8 |
6.1 |
8.6 |
9.1 |
13.3 |
16.9 |
19.7 |
23.2 |
26.6 |
46.4 |
|
Specification of connecting pipe |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2" |
2-1/2" |
2-1/2" |
3" |
3" |
3" |
4" |
|
Running control mode |
Fully automatic |
||||||||||||
Safety protection device |
The assembly unit has overload protection, the compressor has overheat protection. High and low pressure, oil pressure protection; open-phase protection; ultralow water temperature protection; flow rate protection. |
Remarks:
The working conditions of assembly unit under nominal refrigerating effect and power: condensing temperature 50℃, inlet water temperature +12℃, outlet water temperature +7℃
