Details

■Product characteristics

●The Danfoss brand scroll compressor is selected,equipped with a crankcase heater,some of the models can be powered by single phase 220V.

●Filters, sight glasses and pressure switches are all Danfoss products.

●The condenser uses inner threaded copper tube, which enlarges the heat exchange area, and is equipped with adjustable speed fan.

●The unit is equipped with a microcomputer controller, which adjusts the running state according to the actual cooling requirement and ensures the safe and efficient operation of the system.

●Fully enclosed sound insulation design of the box body, the fan can adjust speed and run more quietly.

●Low temperature environment components are optional and can be operated stably in cold areas.

●Compressor and condenser can be made into two boxes according to the requirements to reduce the size and meet the rigorous installation conditions.



■Customer value

●Efficient operation, saving about 7% of annual operation cost

●Various types of 2HP〜9HP are available to meet various cooling demand.

●Easy installation, low maintenance cost, stable and reliable operation of the system

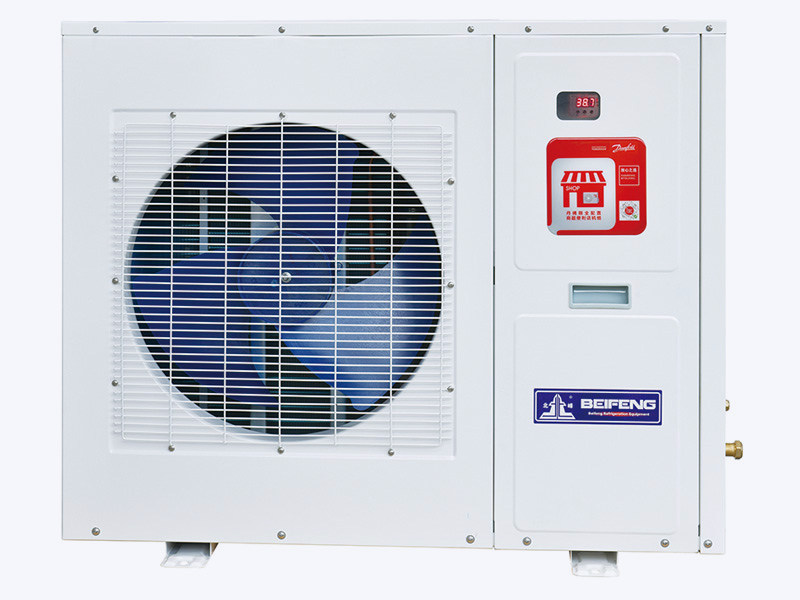

Supermarket and C-Store Medium Temp Fixed Speed Condensing Unit

Project Name BF-CUH0200MY BF-CUH0300MY BF-CUH0400MY BF-CUH0500MY BF-CUH0600MY BF-CUH0700MY BF-CUH0900MY

Compressor

Model

(MLZ015T4)

(MLZ021T4)

(MLZ030T4)

(MLZ038T4)

(MLZ045T4)

(MLZ048T4)

(MLZ066T4)

Max operating current(A)

4.9

6.8

9.8

11.7

14.1

15.3

20.3

Fan diameter

Φ×quantity

480×1

480×1

480×1

480×2

480×2

480×2

550×2

Input power

(w)

1810

2552

3735

4439

5030

5380

7720

Nominal refrigeraticn
capacity

(w)

3580

4960

7390

8990

10680

12870

15440

Fan motor

Power supply

220V/1ph/50Hz

Connection pipe dimension

Suction

5/8"

5/8"

3/4"

3/4"

3/4"

7/8"

1-1/8"

Exhaust

3/8"

3/8"

3/8"

1/2"

1/2"

1/2"

5/8"

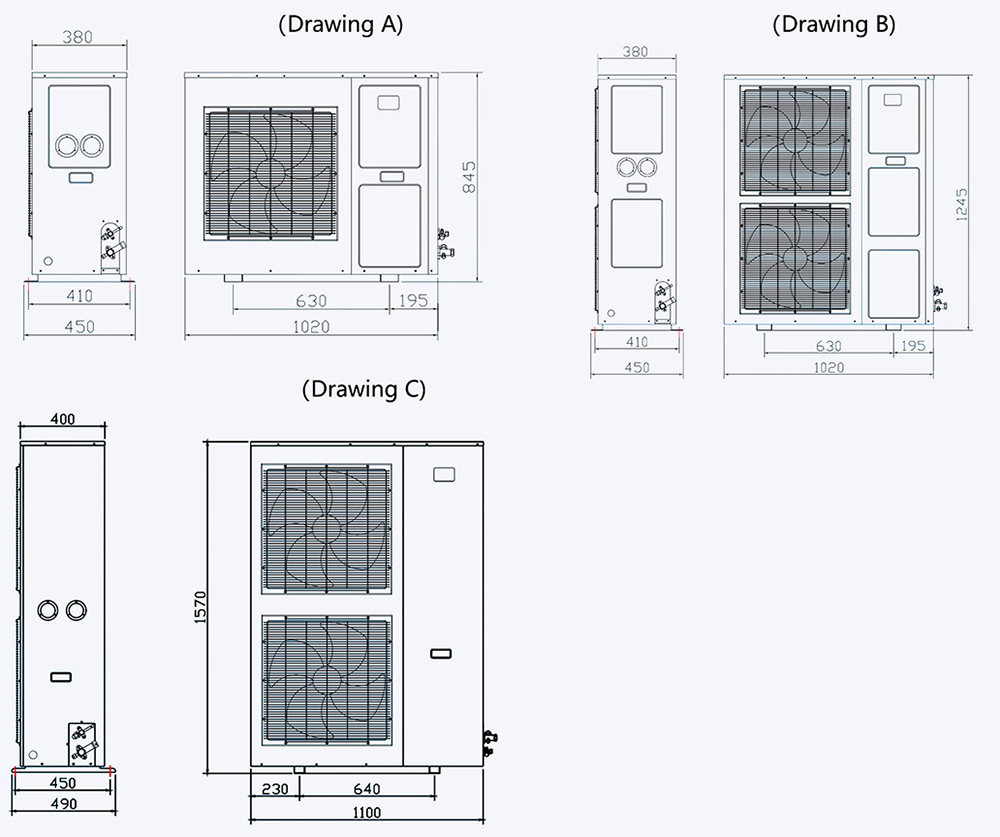

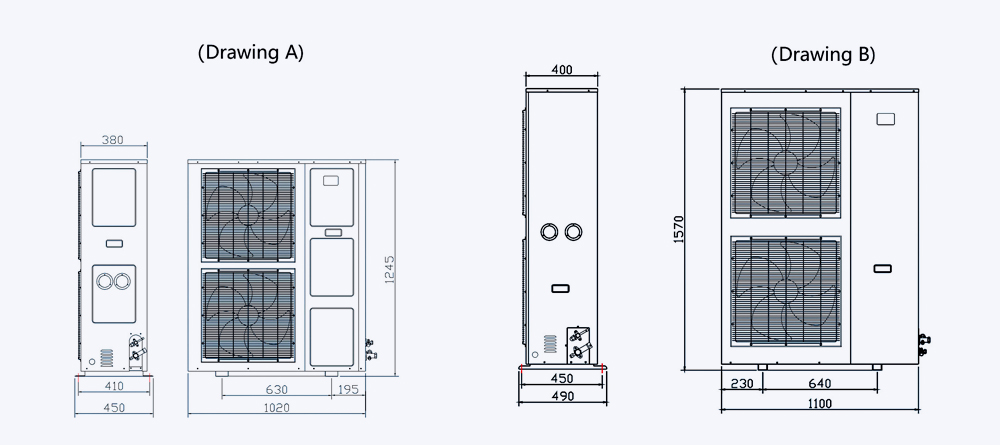

External dimension(mm)

(Drawing A)

 (Drawing B)

(Drawing C)

Working condition: R404A, ambient temperature 32℃, evaporation temperature - 10℃measured, refrigeration capacity based on the suction temperature 20°C, supercooled. The actual parameters are based on nameplate.



■Product characteristics

●The Danfoss special low temperature compressor is selected, equipped with a crankcase heater,some of the models can be powered by single phase 220V.

●Filters, sight glasses and pressure switches are all Danfoss products.

●The condenser uses inner threaded copper tube, which enlarges the heat exchange area, and is equipped with adjustable speed fan.

●The unit is equipped with a microcomputer controller, which adjusts the running state according to the actual cooling requirement and ensures the safe and efficient operation of the system.

●Fully enclosed sound insulation design of the box body, the fan can adjust speed and run more quietly.

●The super low temperature air-jet enthalpy increasing refrigeration system is composed of a special scroll compressor with an intermediate jet and a system design with an economic heat exchanger

●Low temperature environment components are optional and can be operated stably in cold areas.

●Compressor and condenser can be made into two boxes according to the requirements to reduce the size and meet the rigorous installation conditions.



■Customer value

●Efficient operation, saving about 7% of annual operation cost

●Various types of 4HP-10HP are available to meet various cooling demand.

●Easy installation, low maintenance cost, stable and reliable operation of the system



Technical data of supermarket and c-store low temp fixed speed condensing unit

Project Name

BF-CUH0400JY

BF-CUH0500JY

BF-CUH0600JY

BF-CUH0800JY

BF-CUH1000JY

Compressor

Model

(LLZ013T4)

(LLZ015T4)

(LLZ018T4)

(LLZ024T4)

(LLZ034T4)

Max operating current(A)

9.8

12

14.4

18.3

22.7

Fan diameter

Φ×quantity

480×1

480×2

480×2

550×2

550×2

Input power

(w)

3087

3595

4137

5113

6805

Nominal refrigeraticn capacity

(w)

4482

5313

6330

7950

10810

Fan motor

Power supply

220V/lph/50Hz

Connection pipe dimension

Suction

5/8"

3/4"

3/4"

1-1/8"

1-1/8"

Exhaust

3/8"

1/2"

1/2"

5/8"

5/8"

External dimension(mm)

(Drawing A)

(Drawing B)

(Drawing C)

Working condition: R404A, ambient temperature 32℃, evaporation temperature - 30℃measured, refrigeration capacity based on the suction temperature 20℃, supercooled. The actual parameters are based on nameplate.



■Product characteristics

●The Danfoss inverter frequency scroll compressor is selected,equipped with high efficiency permanent magnet motor to achieve stepless energy regulation and low noise and high efficiency operation.

●Compressor equipped with Danfoss refrigeration special inverter, built-in wave filter and electric reactor, improve motor power factor, suitable for environment of high requirements of electromagnetic compatibility.

●Using Danfoss brand CDU special controller

●Using Danfoss brand filter, sight glass and pressure switch

●The condenser uses inner threaded copper tube, which enlarges the heat exchange area, and is equipped with adjustable speed fan.

●The unit is equipped with a microcomputer controller, which adjusts the running state according to the actual cooling requirement and ensures the safe and efficient operation of the system.

●Fully enclosed sound insulation design of the box body, the fan can adjust speed and run more quietly.

●Low temperature environment components are optional and can be operated stably in cold areas.

●Compressor and condenser can be made into two boxes according to the requirements to reduce the size and meet the rigorous installation conditions



■Customer value

●Efficient operation, saving about 30% of annual operation cost

●About 30%〜100% energy regulation range

●Seven models are available to meet the refrigeration requirements of most convenience stores'refrigeration systems.

●Easy installation, low maintenance cost, stable and reliable operation of the system

Technical data of supermarket and c-store medium temp inverter condensing unit

Model

Compressor Model

Max current (A)

Input power(w)

Connection pipe dimension(mm)

External dimension (MM)

Ambient temperature(℃)

Evaporation temperature(℃)

Frequency range

Refrigeration capacity range(KW)

Suction

Exhaust

BF-CUE0200MY

VLZ028TG

8.1

2650

5/8"

3/8"

(Drawing A)

27

-10

30~95Hz

1.9~4.9

32

1.8~4.52

38

1.68~4.1

43

1.5~3.7

BF-CUE0300MY

VLZ035TGA

9.1

3450

3/4"

1/2"

(Drawing A)

27

-10

30~95Hz

2.5~6.1

32

2.3~5.6

38

2.1~5.1

43

1.92~4.6

BF-CUE0400MY

VLZ044TGA

12.1

4850

3/4"

1/2"

(Drawing a)

27

-10

30~80Hz

3.17~9.3

32

2.97~8.45

38

2.58~7.71

43

2.19~6.84

BF-CUE0500MY

VLZ044TGA

12.1

4850

3/4"

1/2"

(Drawing A)

27

-10

30~95Hz

3.3~11.5

32

3.1~10.8

38

2.64~9.7

43

2.4~8.6

BF-CUE0600MY

VZH065

27.2

7700

1-1/8"

5/8"

(Drawing B)

27

-10

20~65Hz

4.04~12.64

32

3.73~11.93

38

3.34~10.68

43

2.94~9.87

BF-CUE0700MY

VZH065

27.2

7700

1-1/8"

5/8"

(Drawing B)

27

-10

20~80Hz

4.28~13.63

32

3.95~12.95

38

3.55~11.67

43

3.23~10.73

BF-CUE0800MY

VZH065

27.2

7700

1-1/8"

5/8"

(Drawing B)

27

-10

20~95Hz

4.7~15.31

32

4.41~14.51

38

3.88~13.1

43

3.53~11.92

 Working condition: R404A, suction overheating 10℃, supercooled   Power Supply Voltage-Three Phase 380V



R22

Selection form of medium temp fixed speed cooling capacity R22

Model

Ambient temperature(℃)

Refrigeration Capacity(W)

Evaporation temperature(℃)

-15

-10

-5

0

5

10

BF-CUH0200M

(MLM015T4)

27

2930

3630

4280

4990

5740

6600

32

2810

3460

4080

4750

5470

6280

38



3250

3870

4450

5180

5950

43





3670

4460

4890

5620

BF-CUH0300M

(MLM021T4)

27

4350

5140

6050

7060

8180

9390

32

4100

4880

5760

6730

7790

8950

38



4510

5450

6390

7400

8530

43





5150

6040

7020

8070

BF-CUH0400M

(MLM030T4)

27

6180

7490

8920

10550

12190

13910

32

5880

7140

8510

10050

11610

13250

38



6720

8060

9500

11040

12640

43





7600

8960

10460

12040

BF-CUH0500M

(MLM038T4)

27

6940

8610

10490

12470

14310

16300

32

6610

8200

9990

11880

13680

15530

38



7580

9380

11080

13050

14580

43





8870

10390

12330

13940

BF-CUH0600M

(MLM045T4)

27

8330

10240

12370

14700

17170

19660

32

7930

9760

11780

14000

16360

18730

38



9120

11110

13170

15450

17760

43





10550

12320

14640

16780

BF-CUH0700M

(MLM048T4)

27

9470

11640

14060

16705

19480

22310

32

9015

11095

13390

15910

18560

21250

38

8110

10360

12630

14960

17530

20150

43



9325

11990

13990

16620

19040

BF-CUH0900M

(MLM066T4)

27

13350

16090

18980

22400

26440

31190

32

12590

15180

17900

21130

24940

29430

38

11840

14270

16840

19870

23440

27660

43



12840

15150

17880

21100

24890

Note : Suction overheating 20℃ , supercooled



R404A



Selection form of medium temp fixed speed cooling capacity R404A

Model

Ambient temperature(℃)

Refrigeration Capacity(W)

Evaporation temperature(℃)

-15

-10

-5

0

5

10

BF-CUH0200MY

(MLZ015T4)

27

3100

3790

4515

5240

6200

6940

32

2900

3580

4220

4900

5800

6490

38

2650

3300

3930

4519

5260

6040

43

2230

2730

3560

4030

4750

5460

BF-CUH0300MY

(MLZ021T4)

27

4800

5660

6640

7730

8910

10206

32

4450

5240

6150

7160

8250

9450

38

4000

4830

5630

6530

7610

8700

43

3530

4340

5150

5920

6870

7840

BF-CUH0400MY

(MLZ030T4)

27

6450

7910

9430

11130

12860

14530

32

6090

7390

8810

10400

12020

13710

38

5720

6820

8180

9440

10900

12830

43

5290

6190

7370

8590

10050

11680

BF-CUH0500MY

(MLZ038T4)

27

7860

9620

11395

13150

15100

17190

32

7350

8990

10650

12290

14150

16070

38

6810

8200

9730

11450

13250

15000

43

6260

7550

8800

10370

12060

13620

BF-CUH0600MY

(MLZ045T4)

27

9660

11530

13600

15400

18390

21050

32

8950

10680

12590

14390

17030

19490

38

8210

9750

11380

13360

15680

18020

43



8775

10340

12050

14200

16380

BF-CUH0700MY

(MLZ048T4)

27

10250

13500

15400

18390

21050

23940

32

9490

12870

14390

17030

19490

22380

38

8640

11380

13360

15680

18020

20720

43



10340

12050

14200

16380

18840

BF-CUH0900MY

(MLZ066T4)

27

14510

17490

20640

24350

28730

40910

32

13690

16500

19470

22970

27110

33900

38

12870

15510

18300

21590

25480

31990

43



13950

16470

19430

22930

30070

Note : Suction overheating 20℃ , supercooled



R404A



Selection form of low temp fixed speed cooling capacity R404A

Model

Ambient temperature(℃)

Refrigeration Capacity(W)

Evaporation temperature(℃)

-35

-30

-25

-20

-15

-10

-5

0

BF-CUH0400JY

(LLZ013T4)

27

4044

4819

5507

6333

7473

8743

10142

11562

32

3720

4482

5245

6031

7117

8327

9659

11011

38

3441

4123

4948

5690

6714

7856

9112

10388

43

3235

3917

4700

5405

6378

7463

8657

9869

BF-CUH0500JY

(LLZ015T4)

27

4840

5713

6883

7916

9341

10929

12677

14452

32

4453

5313

6556

7539

8896

10408

12073

13764

38

4230

5154

6184

7112

8392

9819

11390

12985

43

4061

4741

5690

6543

7721

9033

10479

11946

BF-CUH0600JY

(LLZ018T4)

27

5766

6806

8116

9333

11013

12885

14947

17039

32

5305

6330

7729

8889

10488

12272

14235

16228

38

5039

6076

7292

8385

9895

11577

13429

15309

43

4636

5651

6781

7798

9202

10767

12489

14238

BF-CUH0800JY

(LLZ024T4)

27

7242

8548

10352

11905

14048

16436

19066

21735

32

6663

7950

9859

11338

13379

15653

18158

20700

38

6396

7751

9301

10696

12622

14767

17130

19528

43

6140

7441

8929

10268

12117

14177

16445

18747

BF-CUH1000JY

(LLZ034T4)

27

9907

11624

14077

16189

19103

22138

25926

29556

32

9114

10810

13407

15418

18193

21286

24692

28149

38

8659

10540

12648

14545

17163

20081

23294

26555

43

8226

10118

12142

13963

16477

19278

22362

25493

Note : Suction overheating 10℃ , supercooled



  Selection of danfoss frozen scroll compressor,which has superior performance,high temperature resistance,low noise and long service life.     Using Danfoss brand drying filter,pressure switch,force proportional action and double-layer pressure controlled bellows protection,drying filter has the advantages of quick water absorption,high filtration efficiency,corrosion resistance,no escape from impurities and moisture,so as to escort the safety of the unit.
  Supermarket and c-store inverter condensing unit using Danfoss refrigeration special inverter,built-in wave filter and electric reactor,improve motor power factor,suitable for environmentof high requirements of electromagnetic compatibility.Using Danfoss brand CDU special controller,the operation is more stable.     Supermarket and c-store fixed speed condensing unit using imported CPU chip,which intellectualizes the whole process,automatically real-time monitoring testing,detection,fast and accurate to achieve the preset temperature.Strong anti-interference,waterproof,485 communication interface,suitable for multi-unit connection,long-distance remote control.



Application area

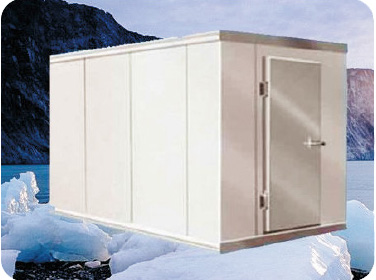

Convenience stores   Restaurants   Small commercial cold storage room



Application scenario

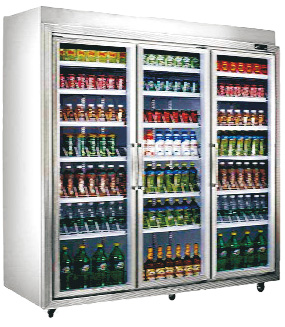

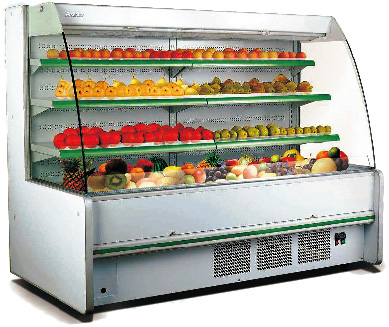

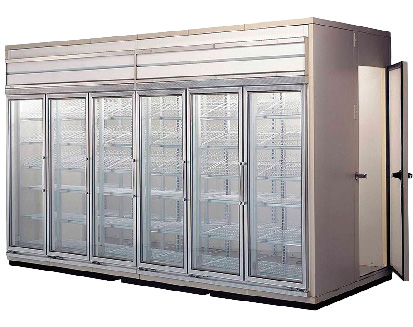

Air curtain cabinet   Sliding door cabinet   Walk in coldroom

Zhejiang Beifeng Refrigeration Equipment Co., Ltd is a famous China 4HP-10HP various cooling demand Supermarket and C-store Medium Temp/Low Temp Fixed Speed Condensing Units Factory and 4HP-10HP various cooling demand Supermarket and C-store Medium Temp/Low Temp Fixed Speed Condensing Units Company,and the products are exported to the Europe,South East Asia,Middle East,North America,Africa etc.
CONTACT WITH US
  • captcha
