Product brief introduction:

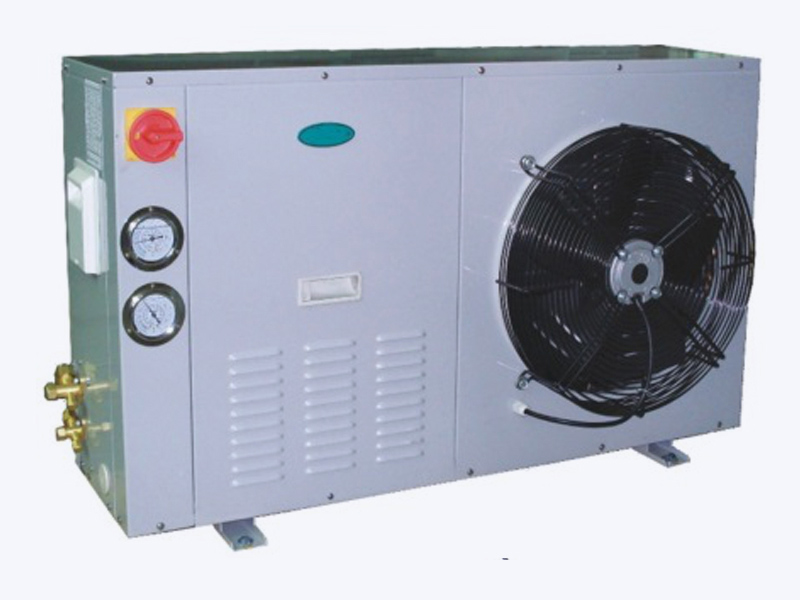

BF-CU series outdoor condensing unit Apply to all kinds of high,Temperature of the cold storage, the Display ark，storage,Industrial equipment, etc.According to industry within Different customers,Points 3 kinds of products The BF-CUA ordinary series,The BF-efficient series, don The BF-CUC ejector wind series.BEIFENG company Use the professional research and development， Design team.Coda production equipment,Modern test equipment Ensure that the product high price.

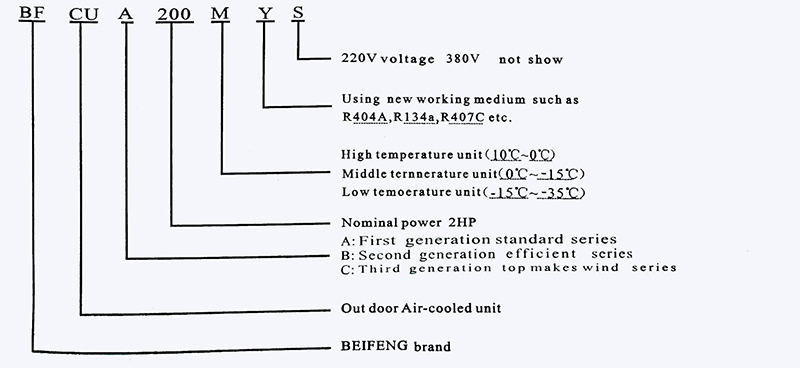

UNIT MODEL INSTRU CTION
Product features:
1，design beautiful outlook w-th light structure is reasonable, the two are the.state has applied for patents.
2，choose high efficiency low noise of exterior rotor motor.
3, threaded the selection of copper tube and too cold, and improve the design of pipelfrte refrigerating capacity of the unit.
4, within the system configuration and the electric appliance and complete configuration, make the turbine control accurate and reliable operation
5, the front panel can be alone removable for maintenance of the unit.
6, the cabinet small fan design, effective triple the compressor and the quantity of heat of the liquid storage.
BF-CUB series outdoor-cooled condensing unit capacity
R22
|
Condensing Unit Model |
Amb Temp ℃ |
↓ |
Capacity(watt) |
||||||||
|
Evaporating temperature(℃) |
|||||||||||
|
-25 |
-20 |
-15 |
-10 |
- 5 |
0 |
5 |
7.2 |
10 |
|||
|
BF-CUB100MS CAJ9510T |
25 |
QO |
767 |
980 |
1218 |
1487 |
1777 |
2099 |
2442 |
2606 |
2816 |
|
32 |
697 |
892 |
1109 |
13?6 |
1623 |
1920 |
2237 |
2388 |
2583 |
||
|
43 |
600 |
772 |
965 |
1186 |
1427 |
1696 |
1986 |
2126 |
2306 |
||
|
BF-CUB150MS CAJ4519T |
25 |
QO |
|
1825 |
2336 |
2887 |
3478 |
4111 |
4782 |
5091 |
5495 |
|
32 |
|
1618 |
2102 |
2594 |
3124 |
3691 |
4295 |
4619 |
4935 |
||
|
43 |
|
1390 |
1773 |
2200 |
2661 |
3155 |
3680 |
3920 |
4234 |
||
|
BF-CUB200M TFH4524F |
25 |
QO |
|
1925 |
2520 |
3168 |
3871 |
4628 |
5440 |
5814 |
6305 |
|
32 |
|
1741 |
2268 |
2847 |
3476 |
4155 |
4882 |
5217 |
5657 |
||
|
43 |
|
1458 |
1911 |
2413 |
2958 |
35.17 |
4176 |
4465 |
4842 |
||
|
BF-CUB300M TFH4540F |
25 |
QO |
|
3476 |
4507 |
5615 |
6801 |
8064 |
9405 |
10021 |
10823 |
|
32 |
|
3141 |
4057 |
5047 |
6111 |
7244 |
8449 |
9001 |
9721 |
||
|
43 |
|
2651 |
3424 |
4282 |
5207 |
6194 |
7241 |
7719 |
8342 |
||
|
BF-CUB400M TAG456T |
25 |
QO |
2534 |
3600 |
4742 |
6084 |
7628 |
9273 |
11248 |
12239 |
13467 |
|
32 |
2240 |
3264 |
4274 |
5472 |
6856 |
8425 |
10200 |
10993 |
12111 |
||
|
43 |
1938 |
2821 |
3756 |
4692 |
5935 |
7317 |
896 |
9787 |
10823 |
||
|
BK-CIB500M TAG4561T |
25 |
QO |
3550 |
4913 |
6559 |
8347 |
10277 |
12349. |
14564 |
15.584 |
16922 |
|
32 |
3165 |
4441 |
5906 |
7505 |
9237 |
11100 |
13091 |
14008 |
15208 |
||
|
43 |
2810 |
3714 |
4982 |
6406 |
8008 |
9771 |
11544 |
12334 |
13419 |
||
|
BF-CIB600M TAG4568T |
25 |
Q0 |
3680 |
5306 |
7244 |
9332 |
11567 |
13954 |
16489 |
17651 |
19111 |
|
32 |
3260 |
4797 |
6524 |
8391 |
10399 |
12544 |
14824 |
15869 |
17235 |
||
|
43 |
2740 |
4011 |
5503 |
7125 |
9040 |
10886 |
13095 |
13969 |
15325 |
||
Note:Rated condition:50HZ, Gas return temp. 20℃； Subcooling 3℃
BF-CUB series outdoor-cooled condensing unit capacity
R404A
|
Condons ing Unit. Model |
Amb Temp ℃ |
↓ |
Capaci ty (watt) |
||||||||
|
Evaporating temperature(℃) |
|||||||||||
|
-25 |
-20 |
-15 |
-10 |
- 5 |
0 |
5 |
7.2 |
10 |
|||
|
BF CUB100MYS GAJ9510Z |
25 |
QO |
928 |
1145 |
1393 |
1663 |
1956 |
2267 |
2595 |
2719 |
2932 |
|
32 |
813 |
1017 |
1241 |
1485 |
1746 |
2019 |
2304 |
2414 |
2597 |
||
|
43 |
738 |
917 |
1119 |
1341 |
1579 |
1830 |
2090 |
2190 |
|
||
|
BF-CUB150MYS CAJ4519Z |
25 |
QO |
1672 |
2102 |
2574 |
3079 |
3611 |
4158 |
4714 |
1940 |
5265 |
|
32 |
|
1839 |
2279 |
2742 |
3222 |
3712 |
4247 |
4450 |
4690 |
||
|
43 |
|
|
1806 |
2202 |
2602 |
3002 |
3397 |
3560 |
3788 |
||
|
BF-CUB209MY TFII4524Z |
25 |
QO |
1702 |
2195 |
2735 |
3311 |
3914 |
4531 |
5155 |
5402 |
5777 |
|
32 |
|
1885 |
2393 |
2926 |
3475 |
1032 |
4590 |
4810 |
5145 |
||
|
43 |
|
|
1848 |
2312 |
2778 |
3241 |
3703 |
3880 |
|
||
|
BF-CUB300MY TFH4540Z |
25 |
QO |
3220 |
3959 |
4861 |
5837 |
6878 |
7968 |
9096 |
9532 |
10246 |
|
32 |
|
3445 |
4296 |
5203 |
6157 |
7147 |
8166 |
8557 |
9200 |
||
|
43 |
|
|
3563 |
4184 |
5006 |
5845 |
6697 |
7018 |
7562 |
||
|
BF CUB400MY TAG4546Z |
25 |
QO |
3.185 |
4531 |
5741 |
7098 |
8576 |
10154 |
11800 |
12366 |
13481 |
|
32 |
2750 |
3729 |
4845 |
6083 |
7430 |
8867 |
10367 |
10864 |
11911 |
||
|
43 |
|
|
3482 |
4535 |
5673 |
6886 |
8164 |
8555 |
9496 |
||
|
BF-CUB500MY TAG4561Z |
25 |
QO |
4315 |
5544 |
6939 |
8478 |
10139 |
11891 |
13703 |
15584 |
15542 |
|
32 |
|
4791 |
6093 |
7509 |
9020 |
10603 |
12478 |
13077 |
14153 |
||
|
43 |
|
|
4750 |
5989 |
7282 |
8613 |
9969 |
10447 |
11335 |
||
|
BF-CUB600MY TAG4568Z |
25 |
.QO |
5402 |
6791 |
8370 |
10121 |
12023 |
14054 |
16182 |
16958 |
18379 |
|
32 |
|
5829 |
7316 |
8942 |
10692 |
12547 |
14487 |
15182 |
16489 |
||
|
43 |
|
|
5650 |
7077 |
8586 |
10168 |
11820 |
12641 |
13532 |
||
Note:Rated condition:50HZ,Gas return temp. 20°C, Subcooling3°C
BF-CUB series outdoor-cooled condensing unit capacity
R404A
|
Condensing Unit Model |
Amb Temp ℃ |
↓ |
Capacity (watt) |
|||||||
|
Evaporating temperature(℃) |
||||||||||
|
-40 |
-35 |
-30 |
-25 |
-23.3 |
-20 |
-15 |
-10 |
|||
|
BF-CUB100JYS CAJ2446Z |
25 |
QO |
613 |
813 |
1041 |
1291 |
1381 |
1561 |
1844 |
2137 |
|
32 |
514 |
699 |
906 |
1155 |
1211 |
1379 |
1636 |
1911 |
||
|
43 |
364 |
525 |
702 |
895 |
964 |
1105 |
1311 |
1537 |
||
|
BF-CUB150JYS CAJ2464Z |
25 |
QO |
765 |
1003 |
1274 |
1573 |
1681 |
1895 |
> 2232 |
2577 |
|
32 |
657 |
877 |
1130 |
1396 |
1493 |
1686 |
1989 |
2298 |
||
|
43 |
489 |
680 |
891 |
1132 |
1211 |
1361 |
1611 |
1864 |
||
|
BF-CUB200JY TFH2480Z |
25 |
QO |
969 |
1411 |
1859 |
2311 |
2465 |
2767 |
3228 |
3694 |
|
32 |
799 |
1203 |
1585 |
1996 |
2138 |
2416 |
2845 |
3284 |
||
|
43 |
609 |
909 |
1228 |
1566 |
1685 |
1921 |
2282 |
2676 |
||
|
BF-CUB300JY TFH2511Z |
25 |
QO |
1100 |
1753 |
2376 |
2997 |
3207 |
3615 |
4230 |
4843 |
|
32 |
925 |
1473 |
2028 |
2589 |
2781 |
3155 |
3726 |
4299 |
||
|
43 |
709 |
1143 |
1574 |
2034 |
2194 |
2511 |
2998 |
3490 |
||
|
BF-CUB400JY TAG2516Z |
25 |
QO |
1877 |
2683 |
3545 |
4463 |
4788 |
5437 |
6467 |
7552 |
|
32 |
1555 |
2260 |
3029 |
3861 |
4158 |
4755 |
5707 |
6716 |
||
|
43 |
1189 |
1728 |
2347 |
3037 |
3287 |
3794 |
4611 |
5479 |
||
|
BP-CUB500JY TAG2522Z |
25 |
QO |
2471 |
3442 |
4475 |
5569 |
5954 |
6722 |
7937 |
9213 |
|
32 |
2050 |
2902 |
3825 |
4817 |
5171 |
5876 |
7000 |
8184 |
||
|
43 |
1561 |
2219 |
2962 |
3786 |
4083 |
4683 |
5645 |
6657 |
||
Note:Rated condition:50HZ, Gas return temp. 2(TC, Subco.oling3°C

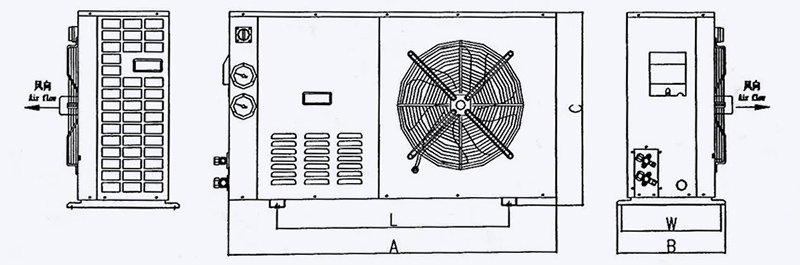

technological parameter
|
Outdoor unit |
Compressor |
Air volume(m³/h) |
A×B×C External dim(mm) |
L×W Mount dim(mm) |
Conned pipe(inch) |
|||
|
Model |
voltage(V) |
Dlspiac ement(m³/h) |
||||||
|
outlet |
Inlet |
|||||||
|
BF-CUA200M BK-CUA200MY |
MLMZ015T4 |
380/3/50 |
5.9 |
1×3420 |
950×355×840 |
580×390 |
3/8" |
5/8" |
|
BF-CUA300M BF-CUA300MY |
MLM/MLZ021T4 |
380/3/50 |
8 |
1×3420 |
950×355×840 |
580×390 |
3/8" |
5/8" |
|
BF-CUA400M BF-CUA400MY |
MLM/MI.Z030T4 |
380/3/50 |
12 |
1×3420 |
950×355×940 |
580×390 |
3/8" |
5/8" |
|
BF-CUA500M BF-CUA500MY |
MLM/MLZ038T4 |
380/3/50 |
14.1 |
2×3420 |
950×355×1245 |
580×390 |
1/2" |
3/4" |
|
BF-CUA600M BF-CUA600MY |
MLM/MLZ045T4 |
380/3/50 |
17.2 |
2×3420 |
950×355×1245 |
580×390 |
1/2" |
3/4" |
|
BF-CUB100MS BF-CUB100MYS BF-CUB100JYS |
CAJ9510T CAJ9510Z CAJ2446Z |
220/1/50 |
18.3 18.3 26.15 |
1×1590 |
1050×370×590 |
730×340 |
3/8" |
5/8" |
|
BF-CUB150MS BF-CUB150MYS BF-CUB150JYS |
CAJ9519T CAJ9519Z CAJ2464Z |
220/1/50 |
34. 45 31. 45 34.45 |
1×2490 |
1050×370×590 |
730×340 |
3/8" |
5/8" |
|
BF-CUB200M BF-CUB200MY BF-CUB200JY |
TFH4524F TFH4524Z TFH2480Z |
380/3/50 |
43. 5 43.5 53.2 |
1×2490 |
1100×370×640 |
780×340 |
3/8" |
5/8" |
|
BF-CUB300M BF-OJB300MY BF-OJB300JY |
TFH4540F TfH4540Z TFH2511Z |
380/3/50 |
74. 25 74.25 74.25 |
1×3520 |
1100 × 370 × 640 |
780×340 |
3/8" |
5/8" |
|
BF-CUB400M BF-CUB400MY BF-CUB400JY |
TAG4546T TAG4546Z TAG2516Z |
380/3/50 |
90.2 112.5 112.5 |
1×3520 |
1100×420×690 |
780×390 |
1/2" |
3/4" |
|
BF-CUB500M BF-CUB500MY BF-CUB500JY |
TAG4561T TAG4561Z TAG2522Z |
380/3/50 |
112.5 134.4 |
2×3520 |
1100×420×1245 |
780×390 |
1/2" |
3/4" |
|
BF-CUB600M BF-CUB600MY |
TAG4568T TAG4568Z |
380/3/50 |
124.4 124.4 |
2× 3520 |
1100×420×1245 |
780×390 |
1/2， |
3/4" |
|
BF-CUC500M BF-CUC500MY |
MLM/MLZ038T4 |
380/3/50 |
14. 1 |
1×6570 |
820×750×765 |
550×720 |
1/2" |
3/4" |
|
BF-CUC600M 15F-CUC&00MY |
MLM/MLZ045T4 |
380/3/50 |
17.2 |
1×6570 |
820×750×765 |
550×720 |
1/2" |
3/4" |
|
BF-CUC700M BF-OJC700MY |
MLM/MLZ048T4 |
380/3/50 |
18.7 |
1×8750 |
820×750×765 |
550×720 |
1/2" |
3/4" |
|
BF-CUC800M BF-CUC800MY |
MLM/MLZ058T4 |
380/3/50 |
21.9 |
I× 8750 |
970×750×865 |
700×720 |
5/8" |
.1-1/8" |
|
BF-CUC9M BF-01C900MY |
MLM/MLZ066T4 |
380/3/50 |
25.9 |
2×6570 |
1360×750×865 |
1150×720 |
5/8" |
1-1/8" |
|
BF-CUC1000M BF-CUC1000MY |
MLM/MLZ076T4 |
380/3/50 |
28.3 |
2×6570 |
1360×750×865 |
1150×720 |
5/8" |
1-1/8" |
BF-CUB SERIES OUTDOOR COOLED CONDENSING UNIT
If you have any questions or need help, please contact us directly, we will provide you with online help and services in time.
Professional refrigeration equipment manufacturer
Zhejiang Beifeng Refrigeration Equipment Co., Ltd. has 35 years history of manufacturing refrigeration equipment. Currently, it has two processing bases located in Shengzhou, Zhejiang, with a production building of 60,000 square meters. It has set up three sales companies in Shanghai, Beijing, and Guangzhou, with strong technical force, advanced equipment, complete varieties and stable quality. The company has a high-quality inspection center to detect the performance index of refrigeration products and imported vacuum-type helium leak detectors for condensers and evaporators. It has a great influence in the national refrigeration industry and occupies a large market, with distributors in all major cities; It enjoys a high reputation not only in the domestic market, but also in the overseas market, and the products are exported to Europe, Southeast Asia, the Middle East, North America, Africa, etc.
In the refrigeration process, the fair design of the condenser is an important part of improving the energy efficiency r...
In industrial air conditioning refrigeration systems, evaporators, condensers, compressors and throttle valves are four ...
Different condensers according to steam condensation can be divided into surface type (also called partition type) and m...
Air coolers can be used for cooling or condensation, and are widely used in: refining, condensation of petrochemical ove...
In summer, the compressor's exhaust temperature is relatively high and the hand cannot touch it. According to national s...
An air cooler is a heat exchanger that uses air as a cooling medium to cool a warm stream to a desired temperature. Refe...
Copyright © Zhejiang Beifeng Refrigeration Equipment Co.,Ltd.All Rights Reserved. Custom Refrigeration Equipment Manufacturers
English
عربى
简体中文
